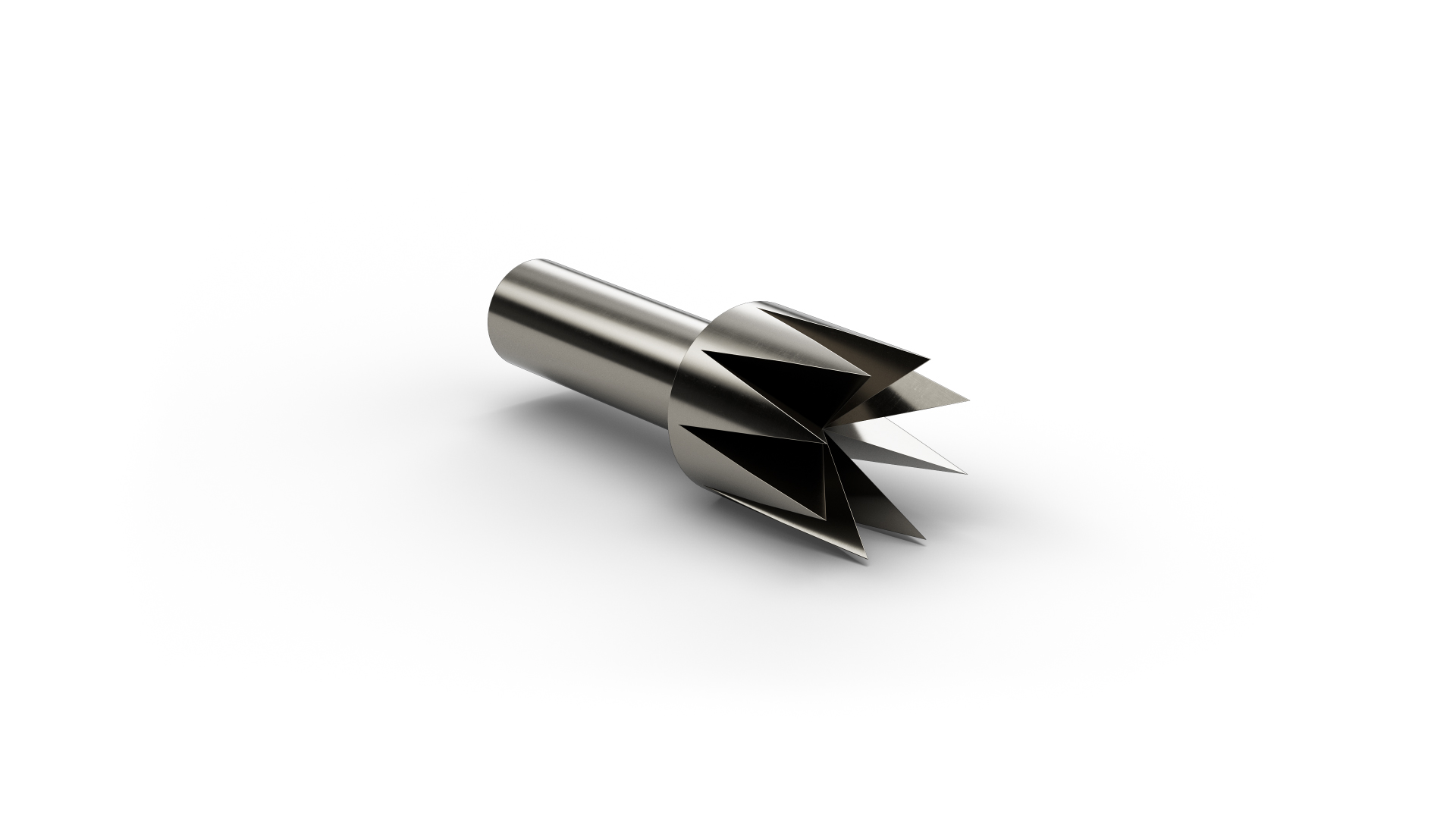

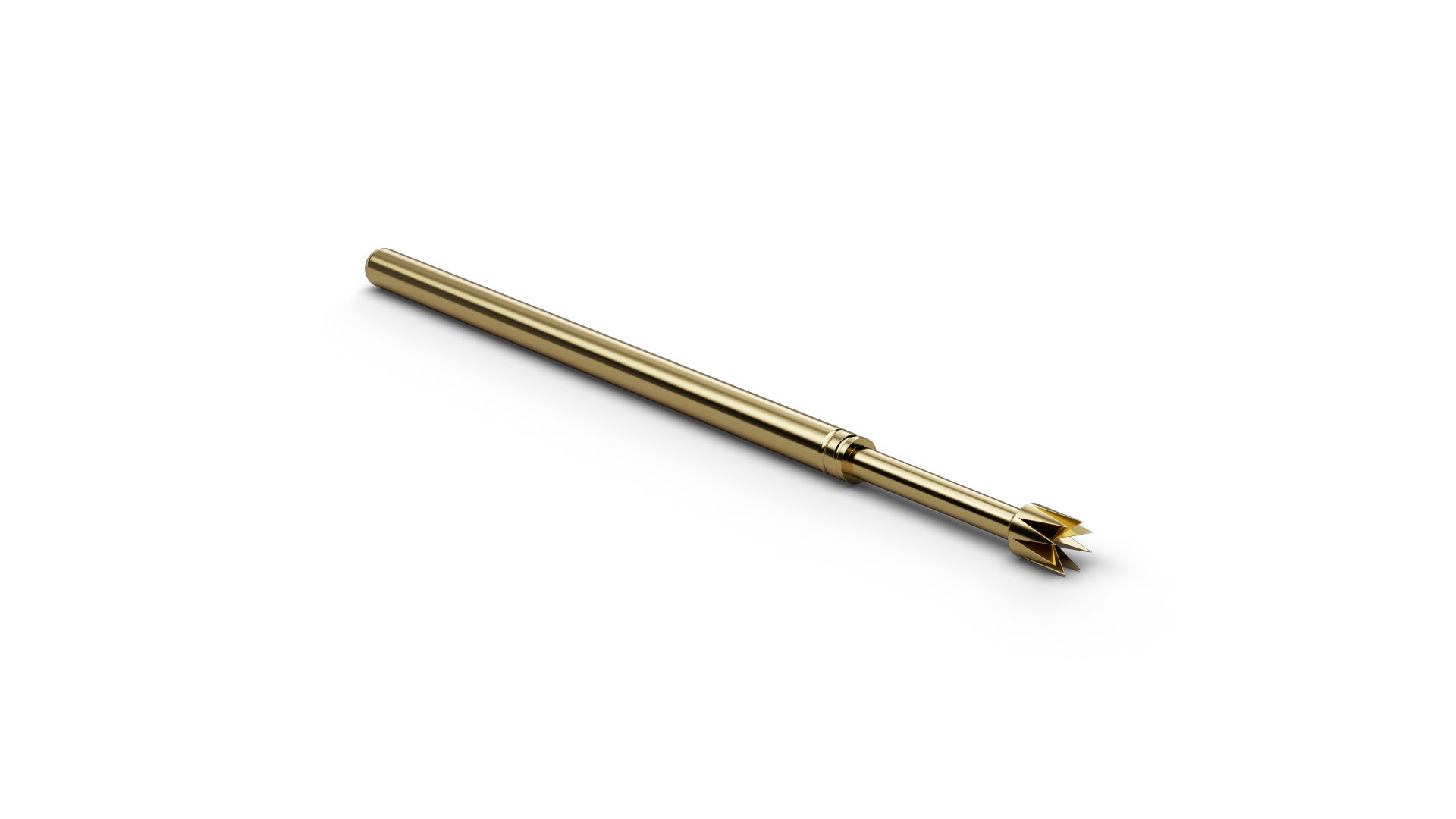

F10063B150P250HP (item number 1146201) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 63 (8-point crown stepped (self-cleaning)), F10063B150P250HP combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F10063B150P250HP combines a pitch of 2.54 mm / 100 mil with tip style 63 (8-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F10063B150P250HP, spring force is 250 cN at a nominal travel of 4.3 mm. F10063B150P250HP is rated for 5 A continuous current with a typical contact resistance of 40 mΩ. Two features address difficult surface conditions on F10063B150P250HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
