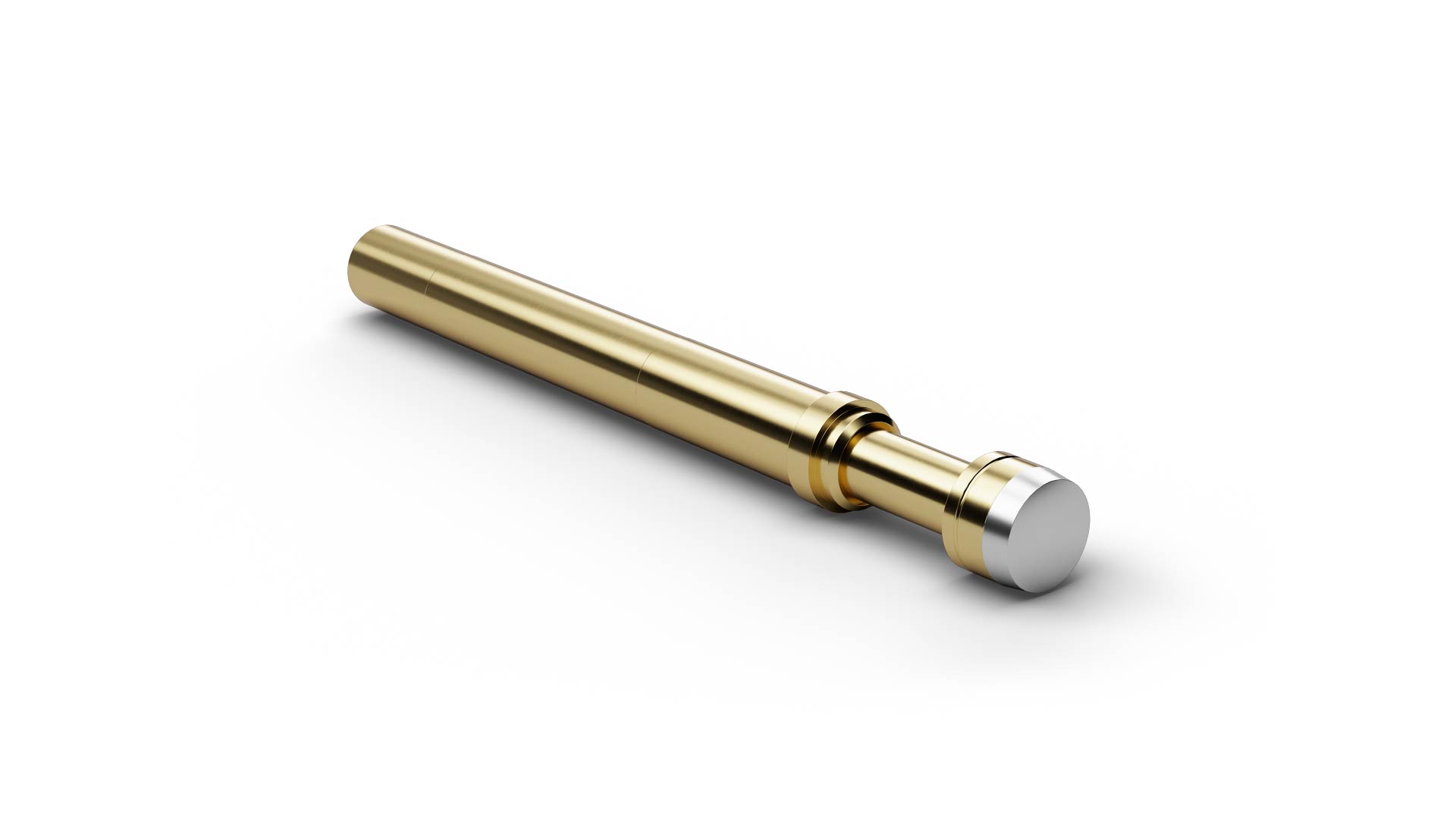

The High Current Probe HCF77512A400U600 (item number 1160347) is designed for safe transmission of high electrical currents in test and contacting applications. HCF77512A400U600 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF77512A400U600, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF77512A400U600 includes battery and power-electronics testing. The electrical rating of HCF77512A400U600 combines 50 A continuous current with 5 mΩ typical contact resistance. Spring force is 600 cN at a nominal travel of 4.4 mm.
