技术数据
| 一般信息 | |
|---|---|
| 结构 | Coaxial Probe |
| 类型/系列 | HF860 |
| 间距（mm/mil） | 6,00 / 236 |
| 温度 | -45°C...+100°C |
| 尺寸 | |
|---|---|
| 总长度 (mm) | 43 |
| 突出高度（毫米） | 11.5 |
| 针头直径 (mm) | 5.35 |
| 针管直径 (mm) | 4.5 |
| 领圈直径 (mm) | 4.7 |
| 压环直径 (mm) | 4.7 |
| 针头直径 (mm) 2 | 1.5 |
| 材料和表面 | |
|---|---|
| 头型 | 50 |
| 头型 2 | 05 |
| 柱塞材料 | Beryllium copper |
| 柱塞镀层 | Gold |
| 针管材料 | Brass |
| 针管镀层 | Gold |
| 弹簧材料 | High-grade steel |
| 弹簧镀层 | Uncoated |
| 柱塞材料 2 | Beryllium copper |
| 柱塞镀层 2 | Gold |
| 弹簧材料 2 | Spring steel |
| 弹簧镀层 2 | Gold |
| 机械规格 | |
|---|---|
| 预紧力（cN） | 90 |
| 弹力 (cN) | 400 |
| 标准行程 (mm) | 4 |
| 最大行程 (mm) | 5 |
| 工具尺寸 (mm) | 3,5/4,0 |
| 连接 | Plug |
| 目标语言 | SMA-Male |
| 电气规格 | |
|---|---|
| 电流 (A) | 10 |
| 阻抗 (ohm) | 50 |
| Fréquence (GHz) | 4 |
| 电流 (A) 2 | 3 |
| 内部接触规格 | |
|---|---|
| 标准行程 (mm) 2 | 2 |
| 最大行程 (mm) 2 | 2.7 |
| 预紧力（cN） 2 | 75 |
| 弹力 (cN) 2 | 130 |
图形
Beschreibung des Produkts

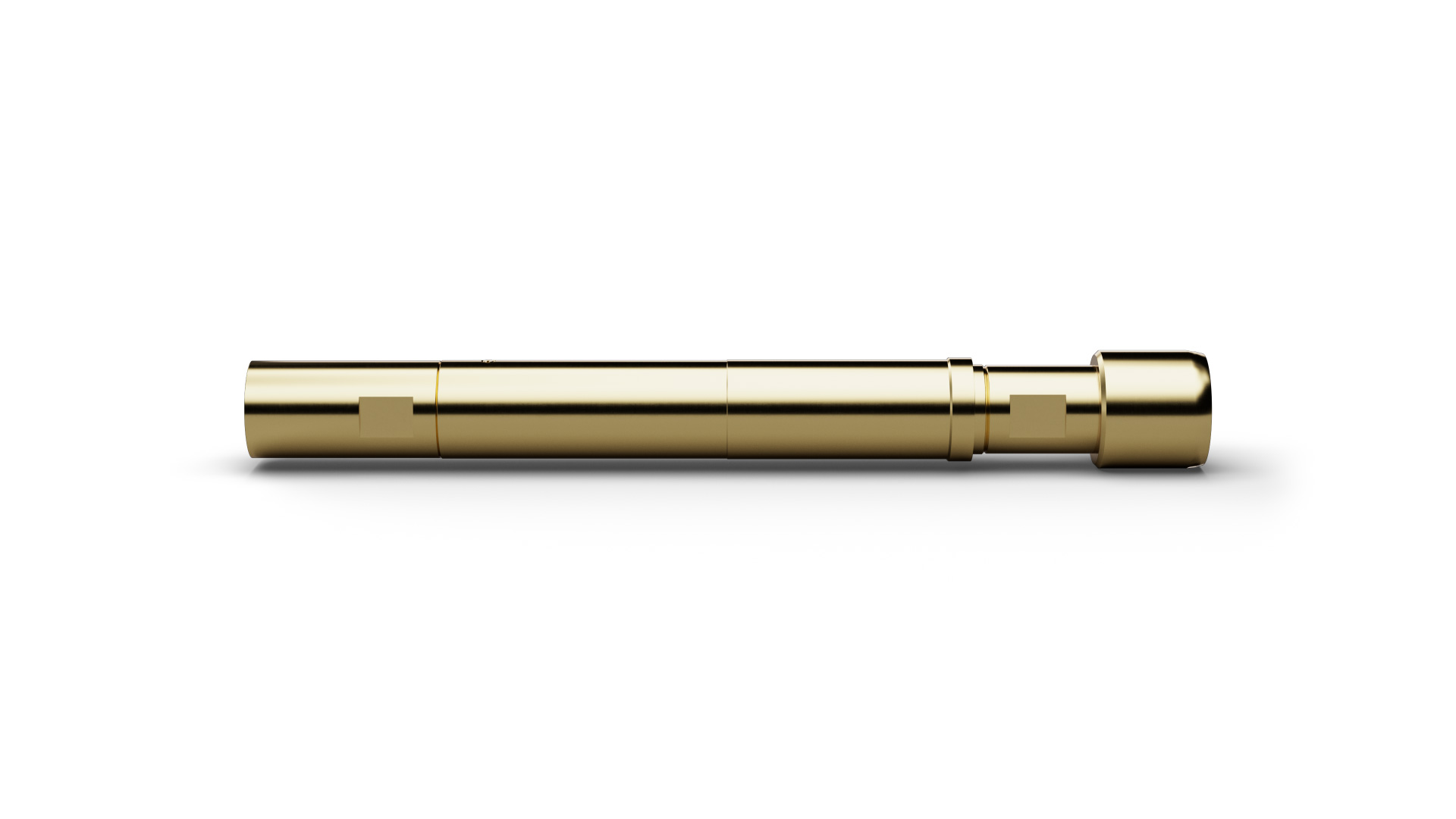

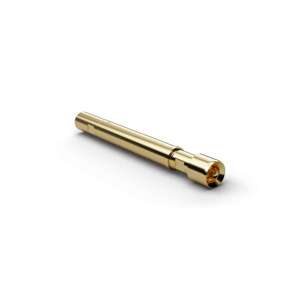

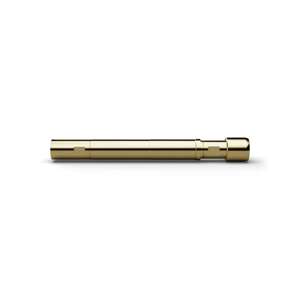

The High Frequency Probe HF860SMAm014G530MCXfP (item number 1160679) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 50 Ω, HF860SMAm014G530MCXfP supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range of HF860SMAm014G530MCXfP extends up to 4 GHz, and this version is intended for contacting SMA-Male connectors. On HF860SMAm014G530MCXfP, spring forces of 400 cN on the outer contact and 130 cN on the inner contact provide defined mechanical contacting.
