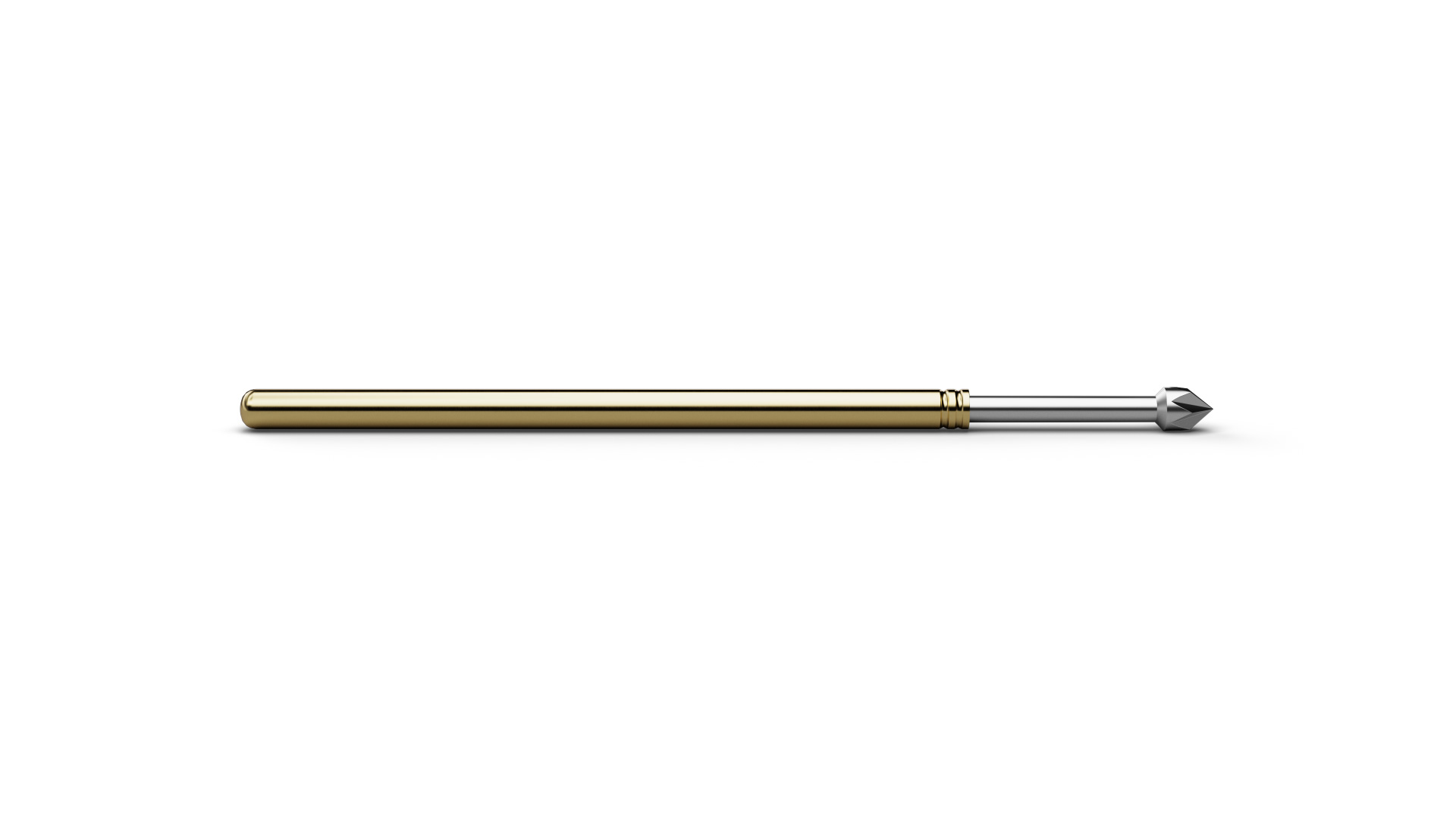

F10007S150P100HP (item number 1170299) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 07 (Hexagonal 90° stepped), F10007S150P100HP combines ICT/FCT use with a geometry intended for plated vias and pads where sharp edges penetrate contamination and oxide layers. F10007S150P100HP combines a pitch of 2.54 mm / 100 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 1.5 mm. For F10007S150P100HP, spring force is 100 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10007S150P100HP is 5 A. On F10007S150P100HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
