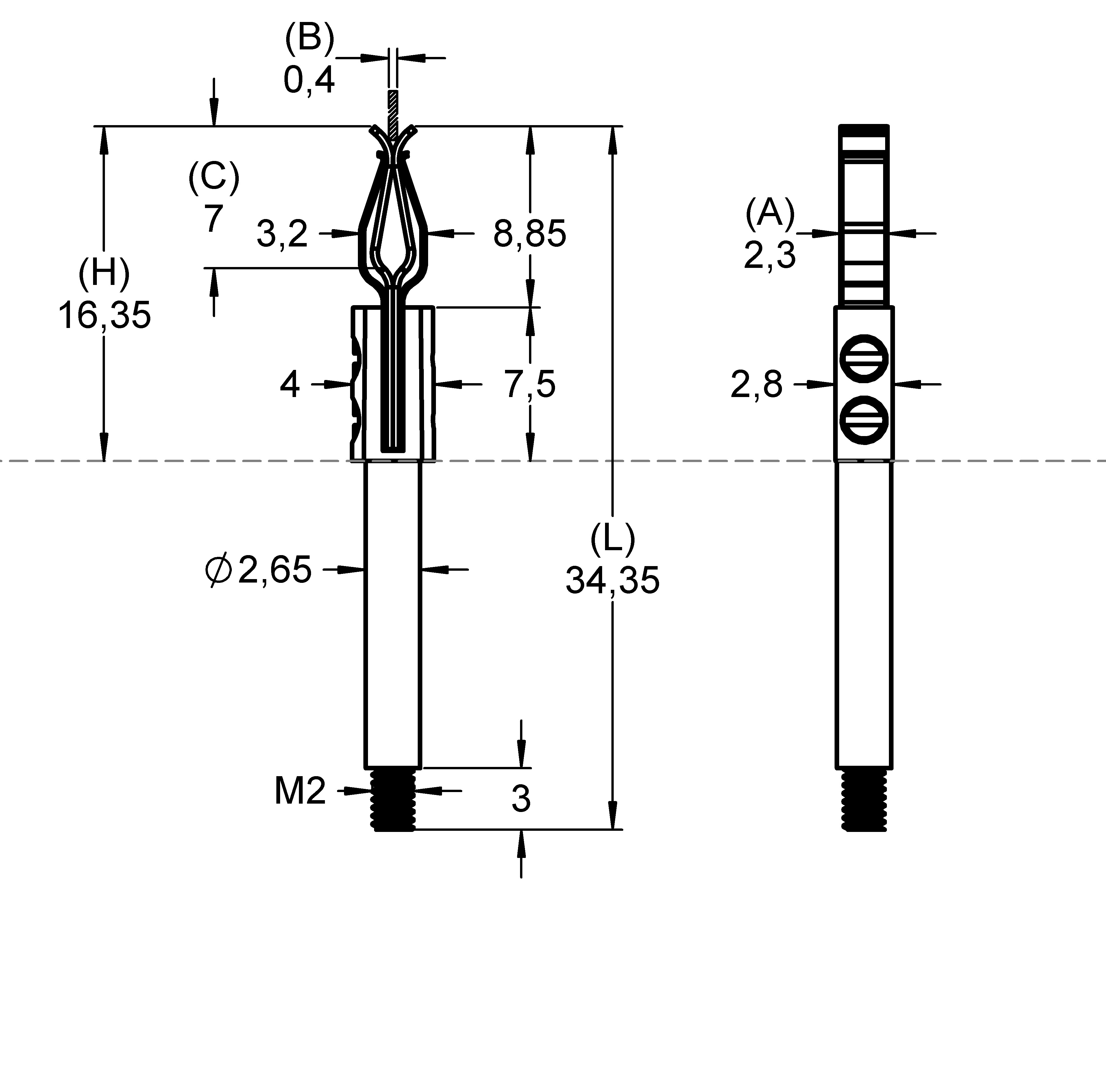

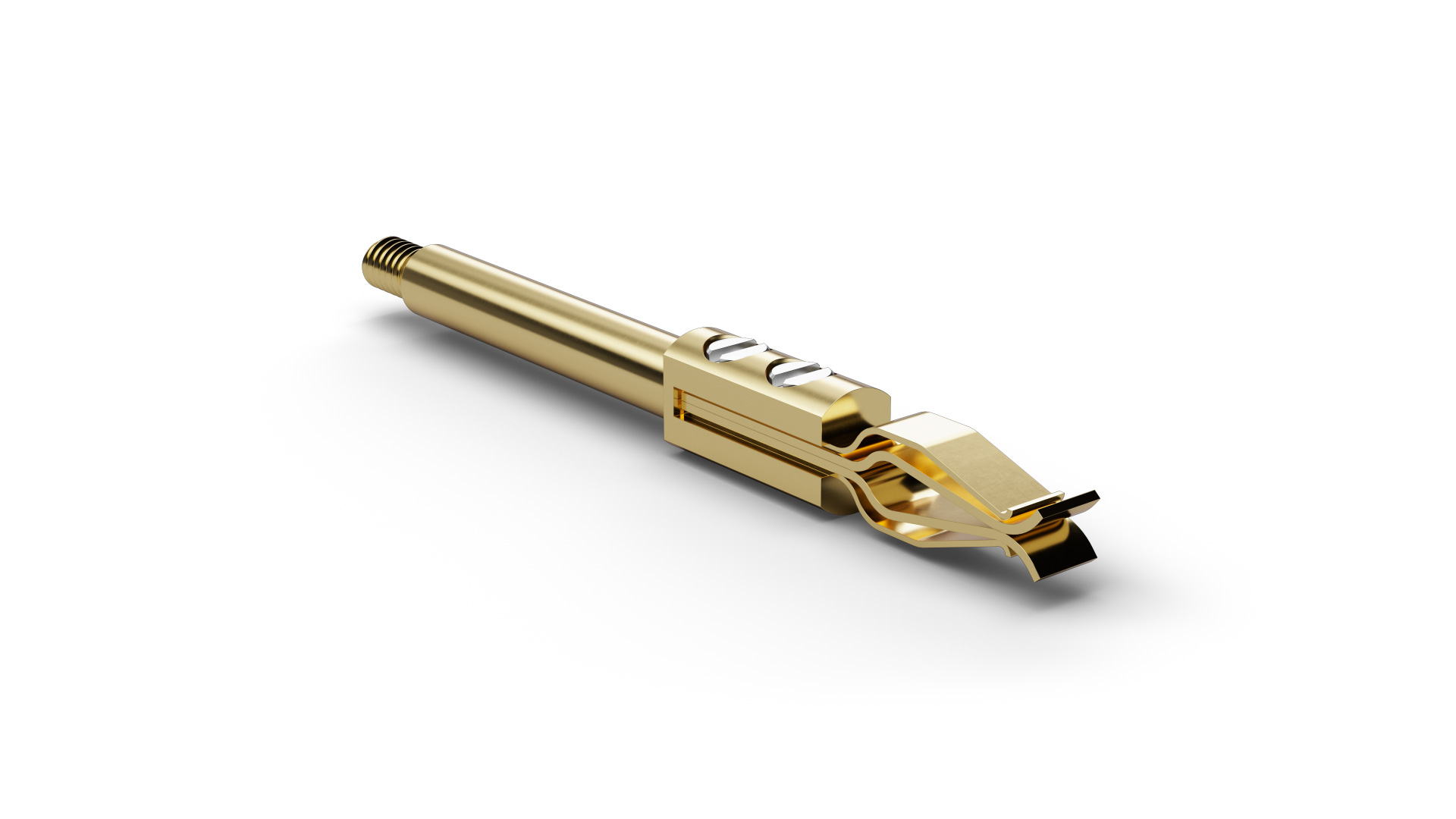

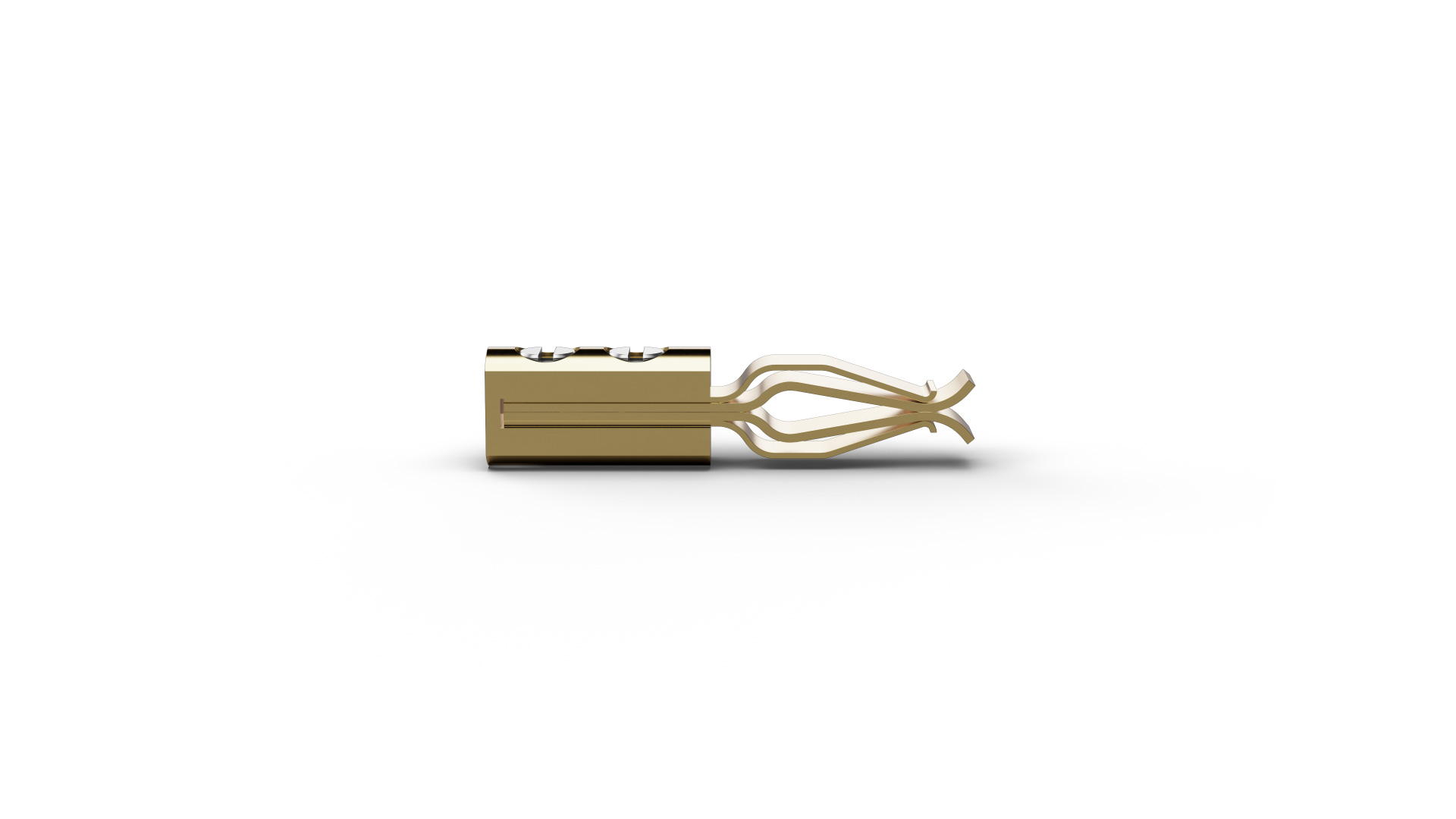

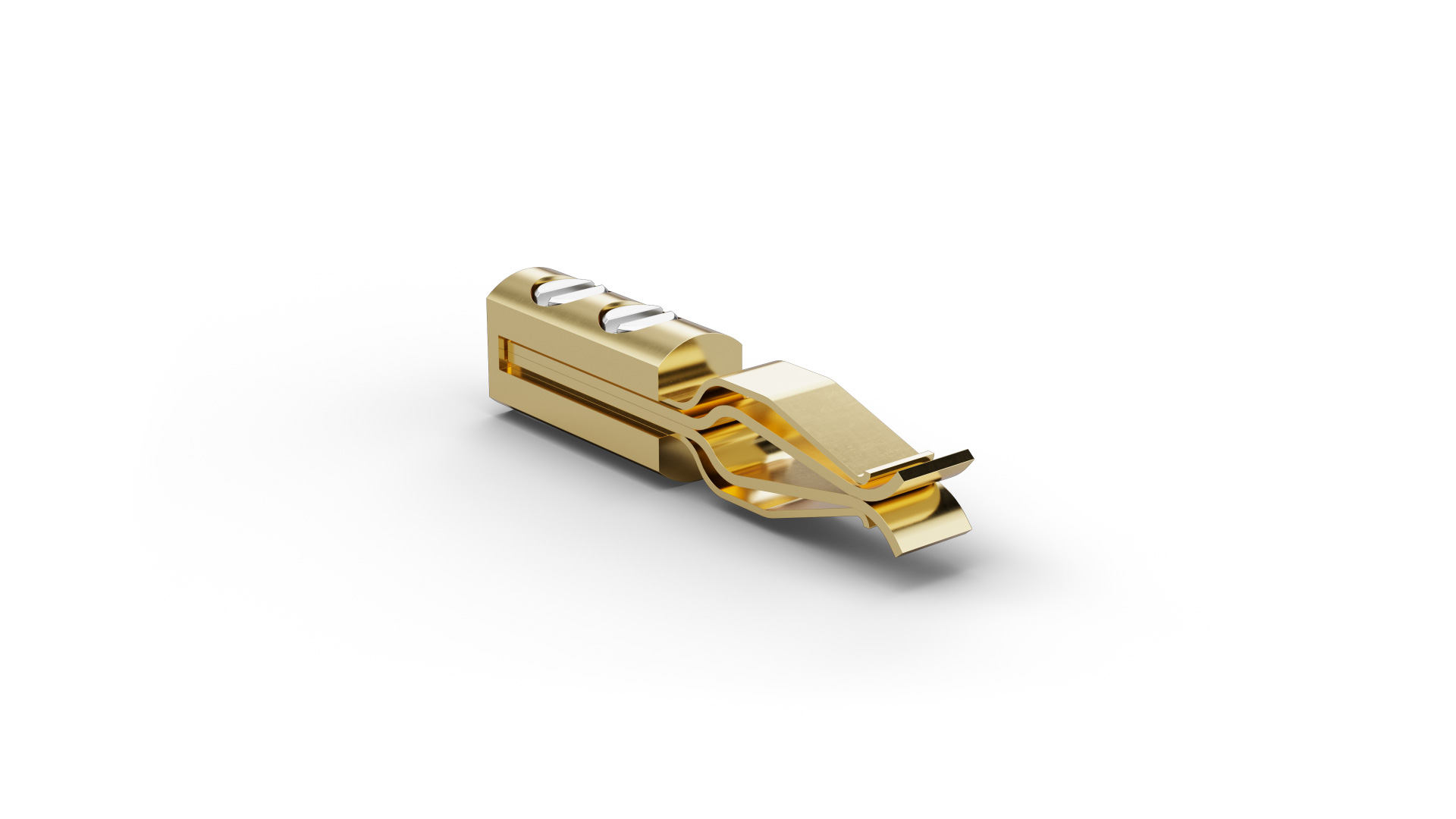

The High Current Probe HCF76488B080G200 (item number 1175814) is designed for safe transmission of high electrical currents in test and contacting applications. HCF76488B080G200 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF76488B080G200, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The probe is rated for 25 A continuous current with a typical contact resistance of 4 mΩ. Spring force is 200 cN. Tip style 88 has a diameter of 2.3 mm.
