Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F561 |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 17 |
| Altura sobresaliente (mm) | 4.5 |
| Diámetro del estilo de punta (mm) | 1 |
| Diámetro del casquillo (mm) | 1 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 70 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 2.4 |
| Recorrido máximo (mm) | 3 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

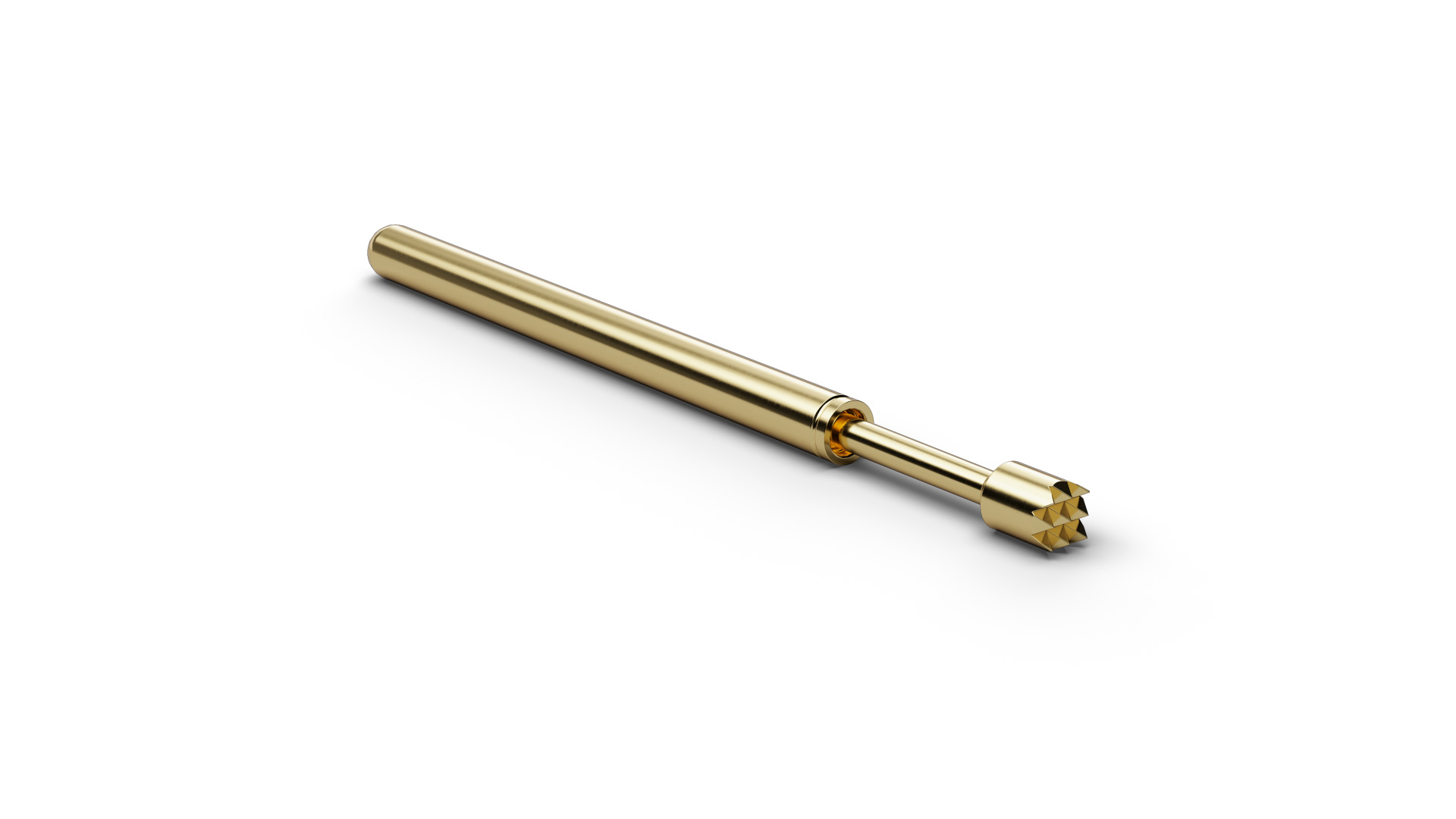

The Basic Contact Probe F56106B100G150 (item number 1168361) is designed for repeated contacting of test points in electronic test fixtures. With tip style 06 (Serrated stepped), F56106B100G150 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F56106B100G150 combines a pitch of 1.9 mm / 75 mil with tip style 06 (Serrated stepped) and a tip diameter of 1 mm. F56106B100G150 operates with 150 cN spring force and 2.4 mm nominal travel. For F56106B100G150, the specified continuous current is 4 A.
