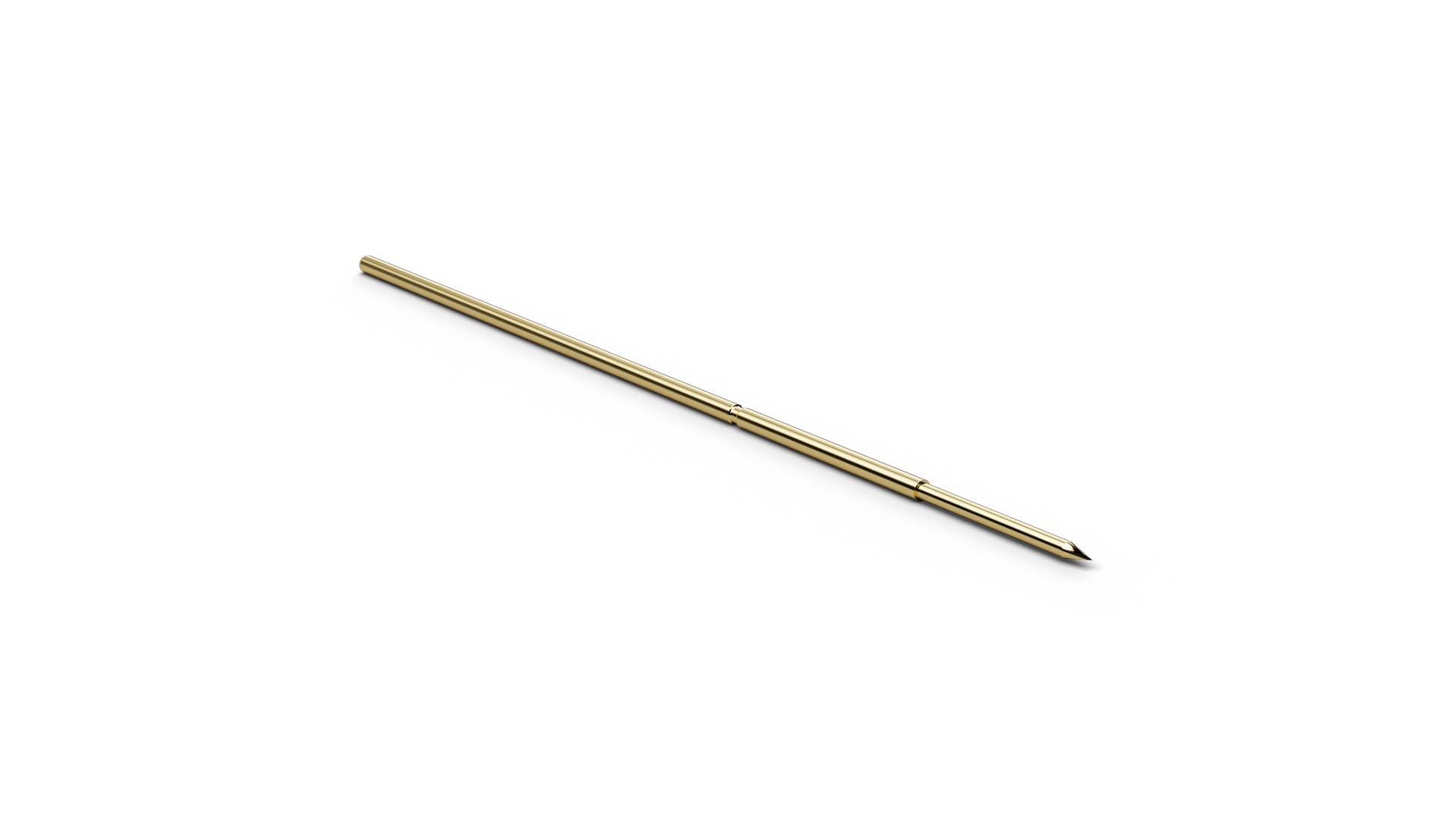

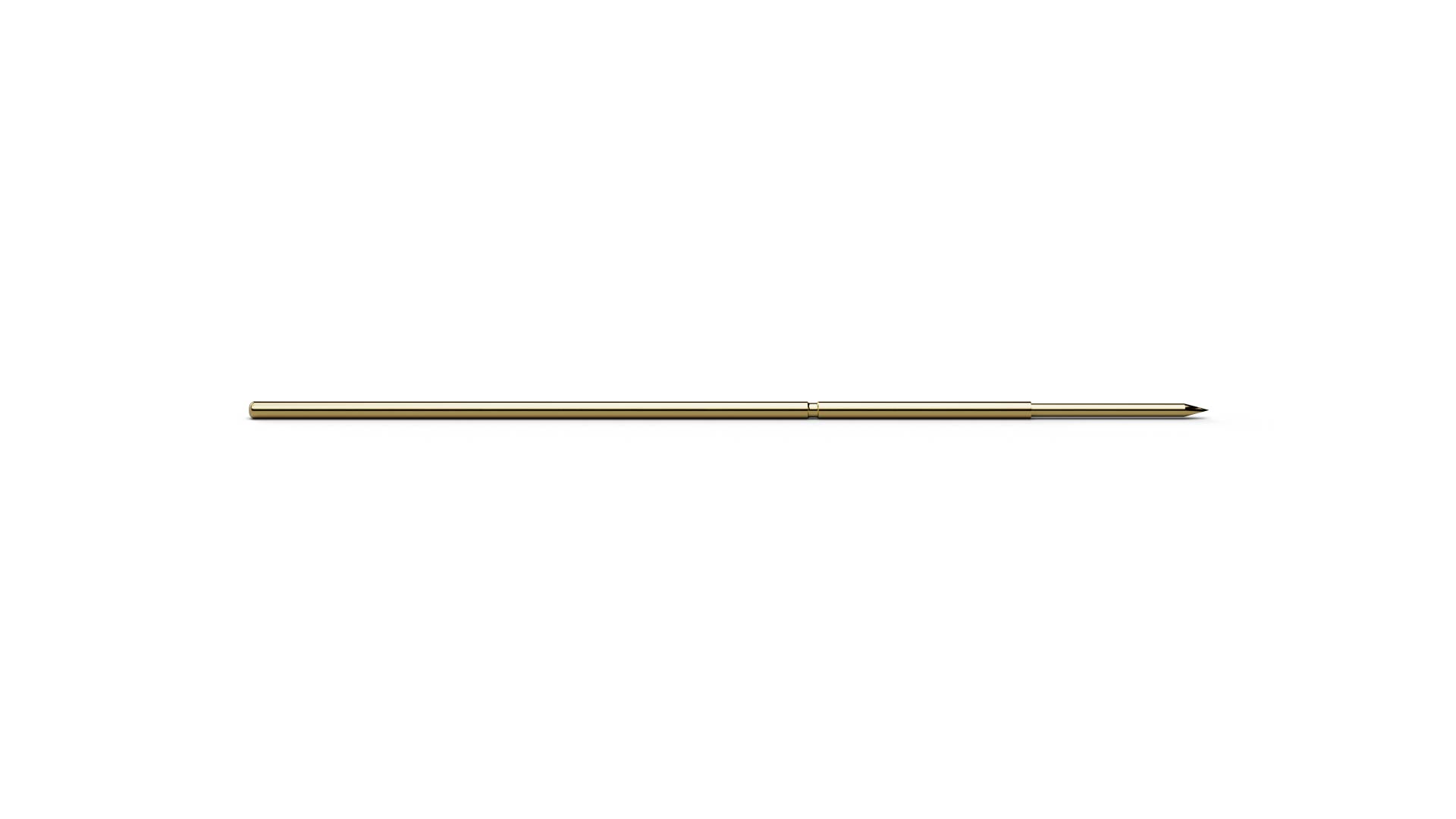

As a Basic Contact Probe, F78818B060G165 (item number 1001549) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F78818B060G165 combines ICT/FCT use with a geometry intended for solder pads and vias. F78818B060G165 combines a pitch of 1.27 mm / 50 mil with tip style 18 (Conical 30°) and a tip diameter of 0.6 mm. For F78818B060G165, spring force is 165 cN at a nominal travel of 6.4 mm. F78818B060G165 is rated for 2 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F78818B060G165 is made of beryllium copper and is gold-plated.
