Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F788 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+80°C |

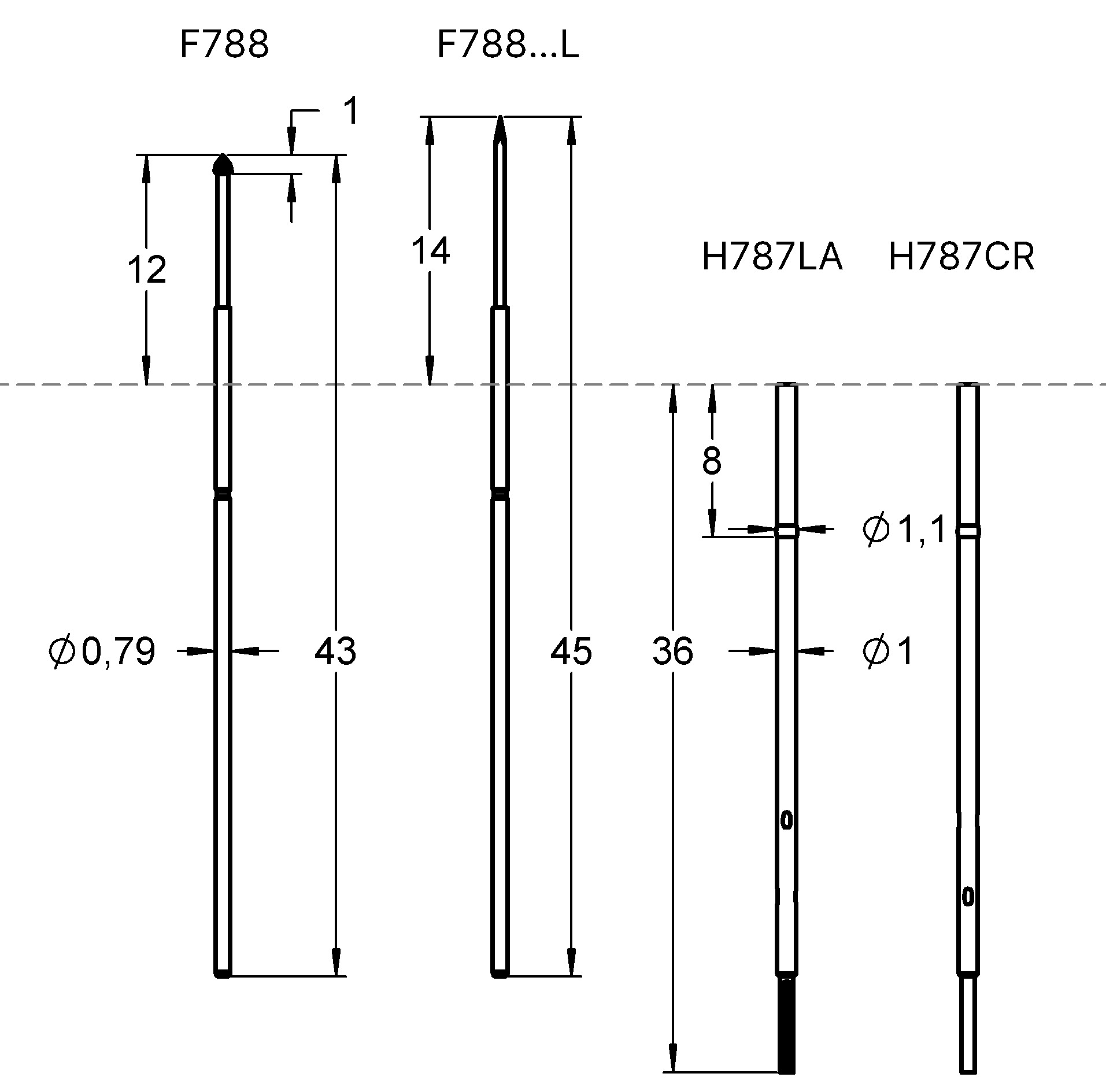

| Dimensions | |
|---|---|
| Total length (mm) | 43 |
| Protrusion height (mm) | 12 |
| Tip style diameter (mm) | 0.6 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 18 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 165 |
| Nominal travel (mm) | 6.4 |
| Maximum travel (mm) | 7 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 2 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

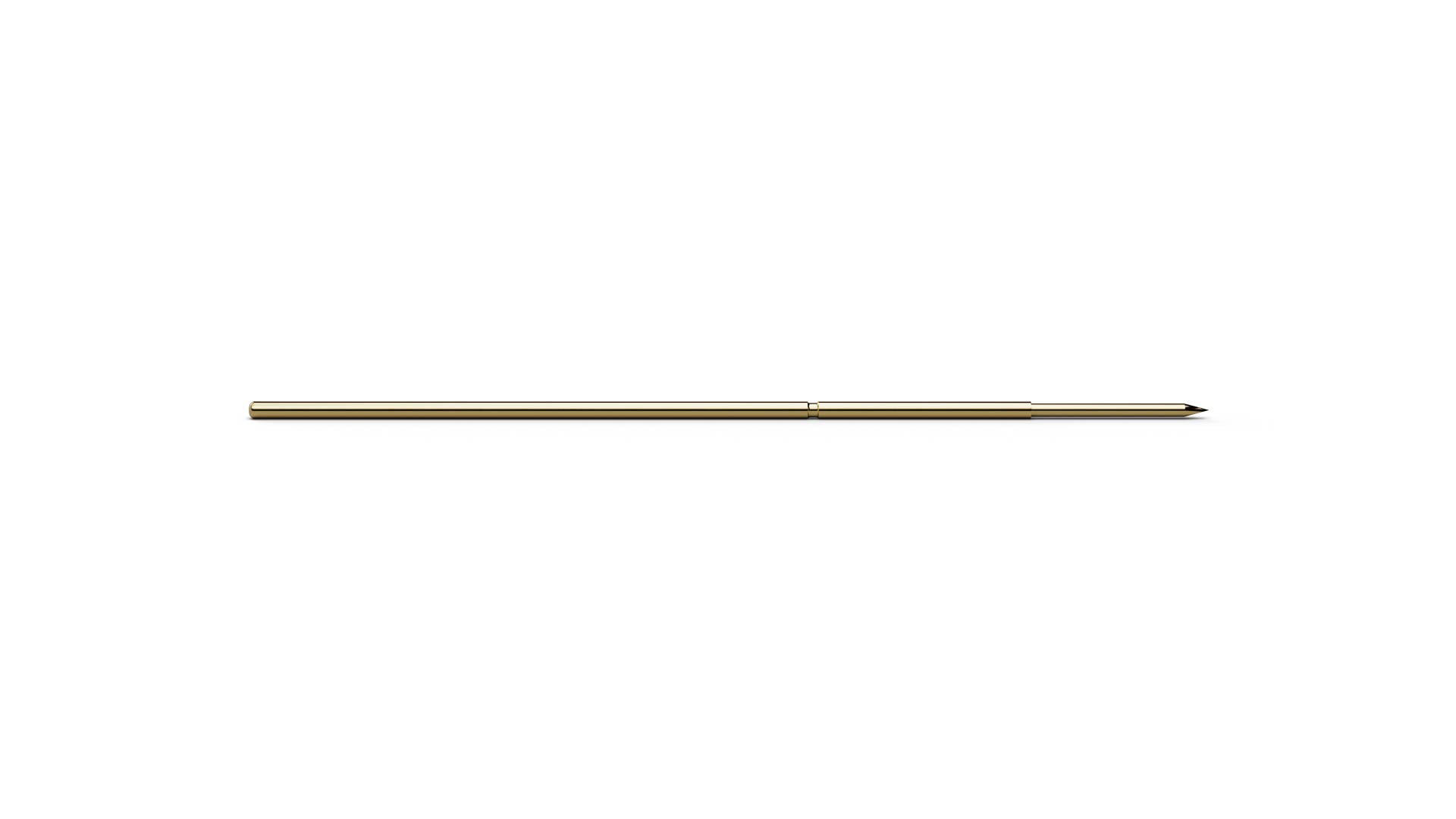

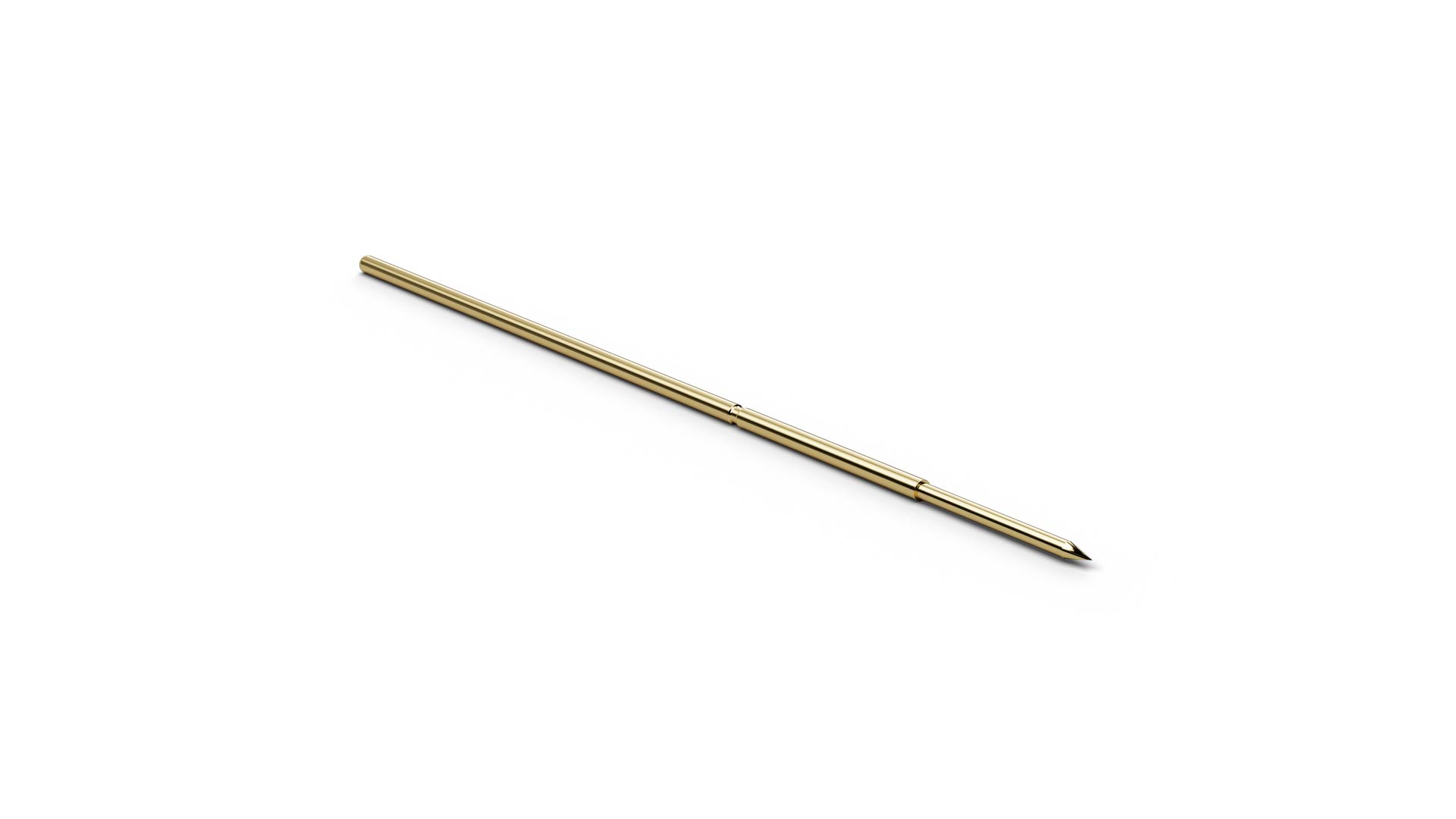

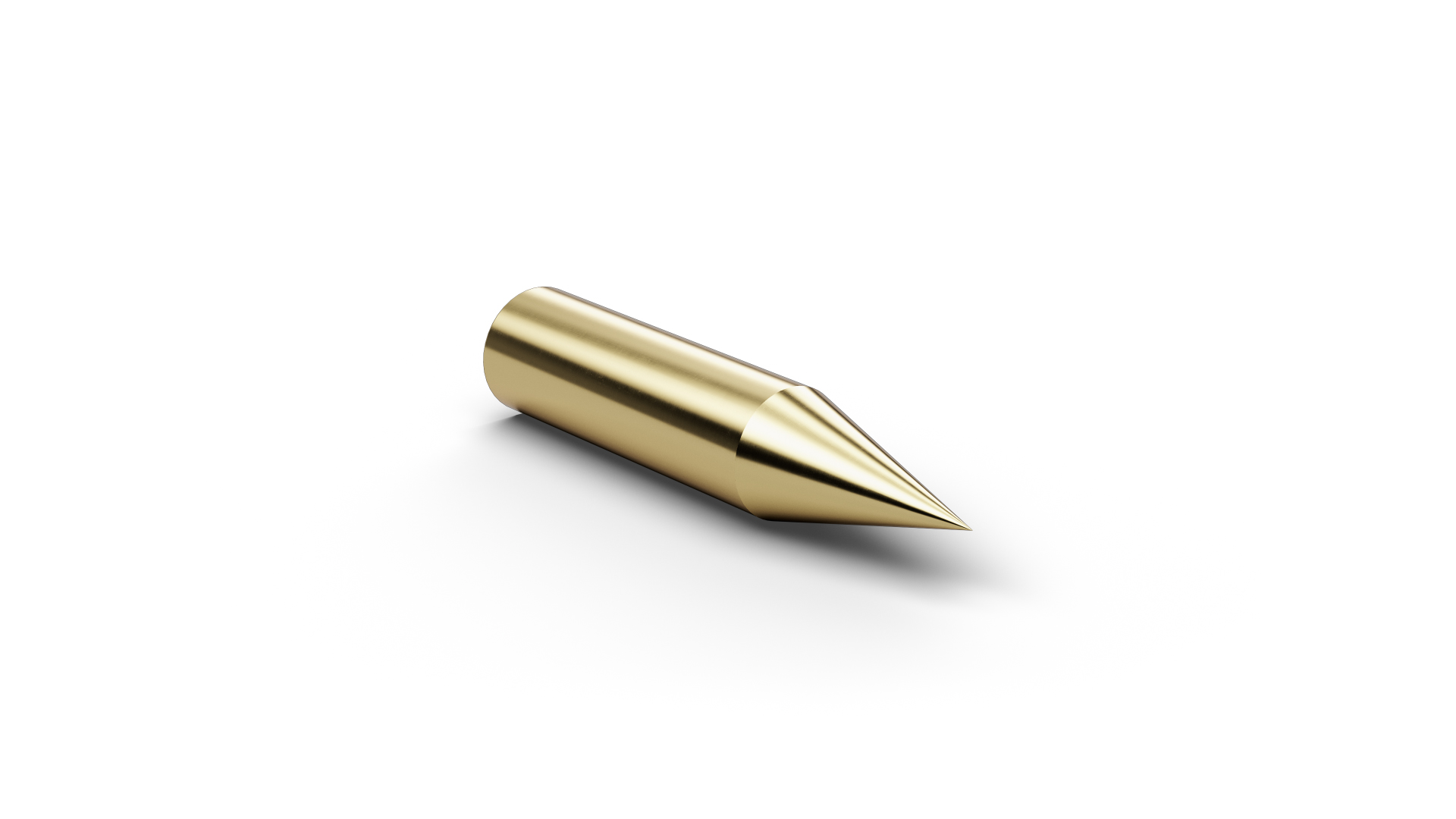

As a Basic Contact Probe, F78818B060G165 (item number 1001549) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F78818B060G165 combines ICT/FCT use with a geometry intended for solder pads and vias. F78818B060G165 combines a pitch of 1.27 mm / 50 mil with tip style 18 (Conical 30°) and a tip diameter of 0.6 mm. For F78818B060G165, spring force is 165 cN at a nominal travel of 6.4 mm. F78818B060G165 is rated for 2 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F78818B060G165 is made of beryllium copper and is gold-plated.
