技术数据
| 一般信息 | |
|---|---|
| 结构 | Basic Contact Probe |
| 类型/系列 | I- |
| 间距（mm/mil） | 2,54 / 100 |
| 温度 | -45°C...+250°C |
| 尺寸 | |
|---|---|
| 总长度 (mm) | 23 |
| 针头直径 (mm) | 2.15 |
| 材料和表面 | |
|---|---|
| 头型 | 05 |
| 柱塞材料 | Brass |
| 柱塞镀层 | Gold |

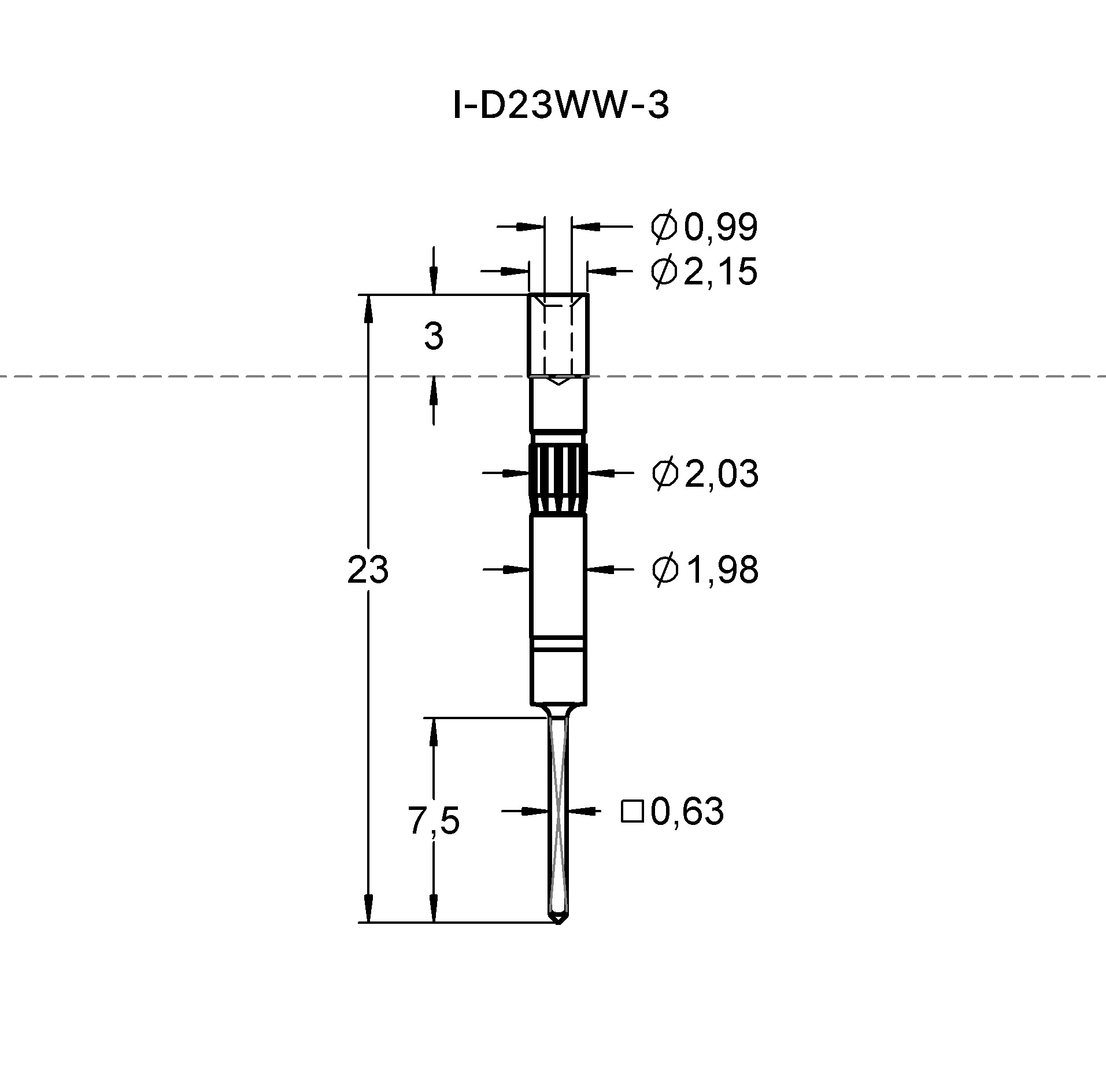

图形
Beschreibung des Produkts

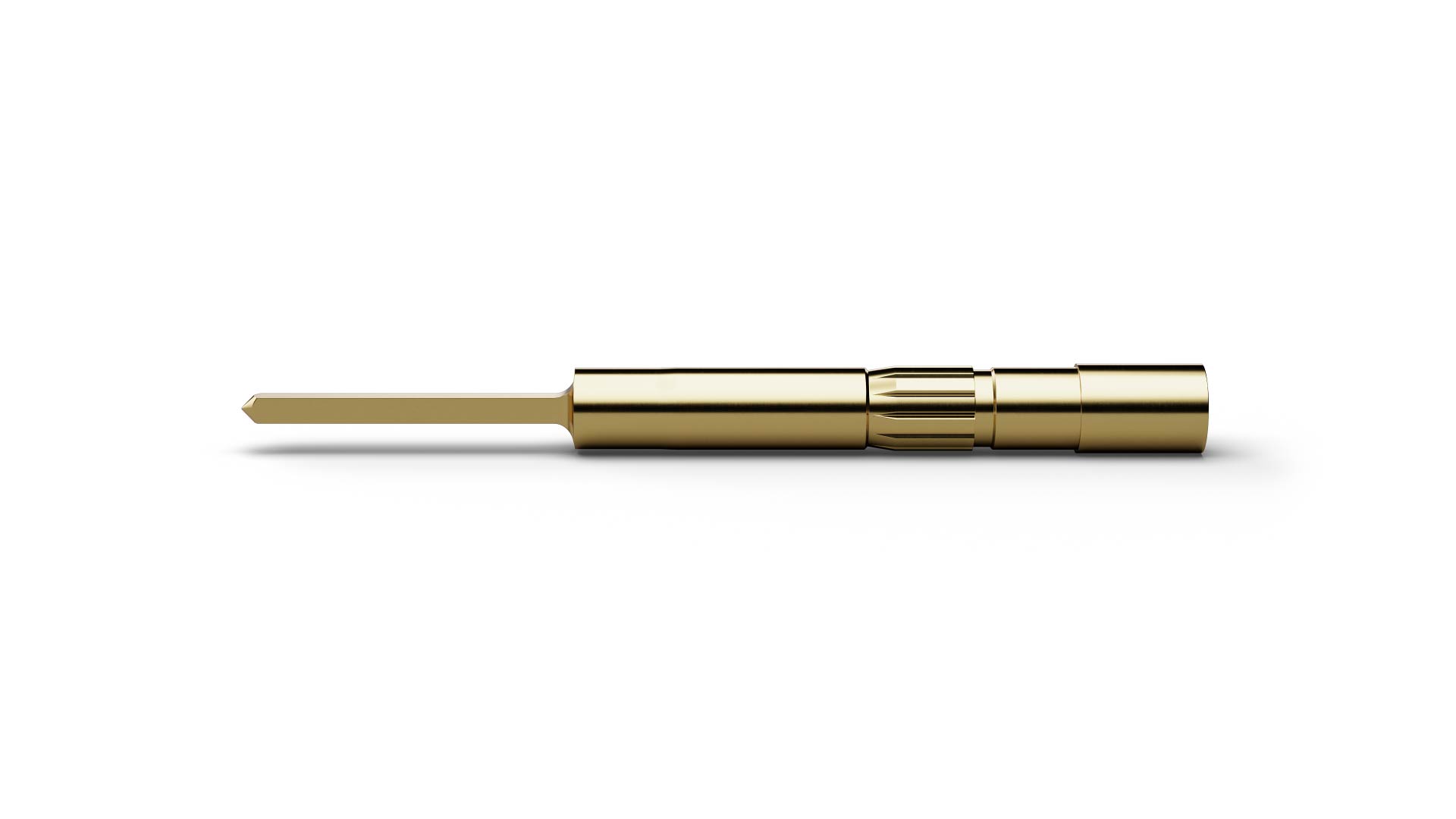

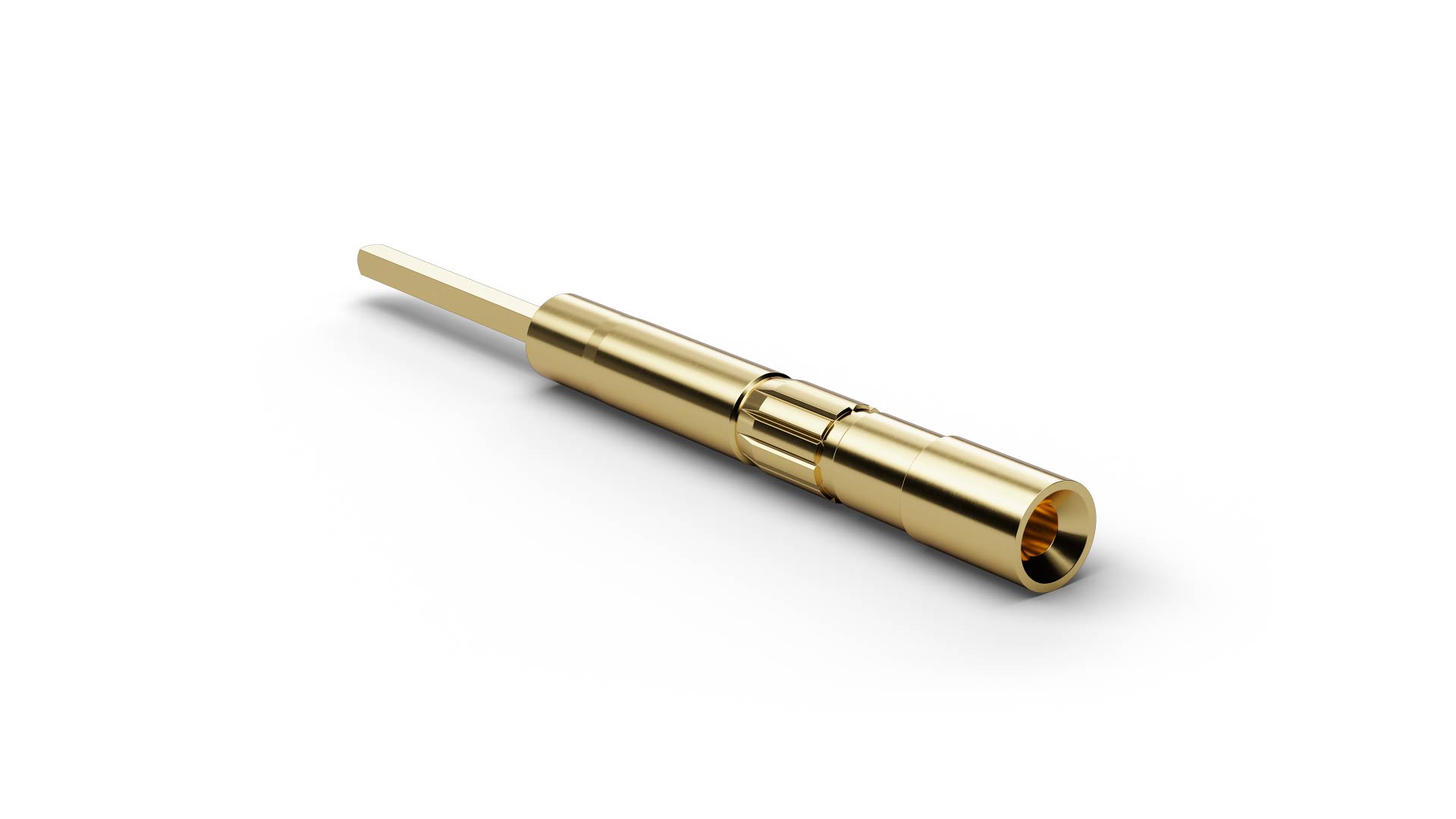

I-D23WW-3 (item number 1007284) is a Contact Probe for defined interfaces within electronic test setups. I-D23WW-3 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. I-D23WW-3 combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 2.15 mm. The plunger in I-D23WW-3 is made of brass and is gold-plated.
