Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | I- |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+250°C |

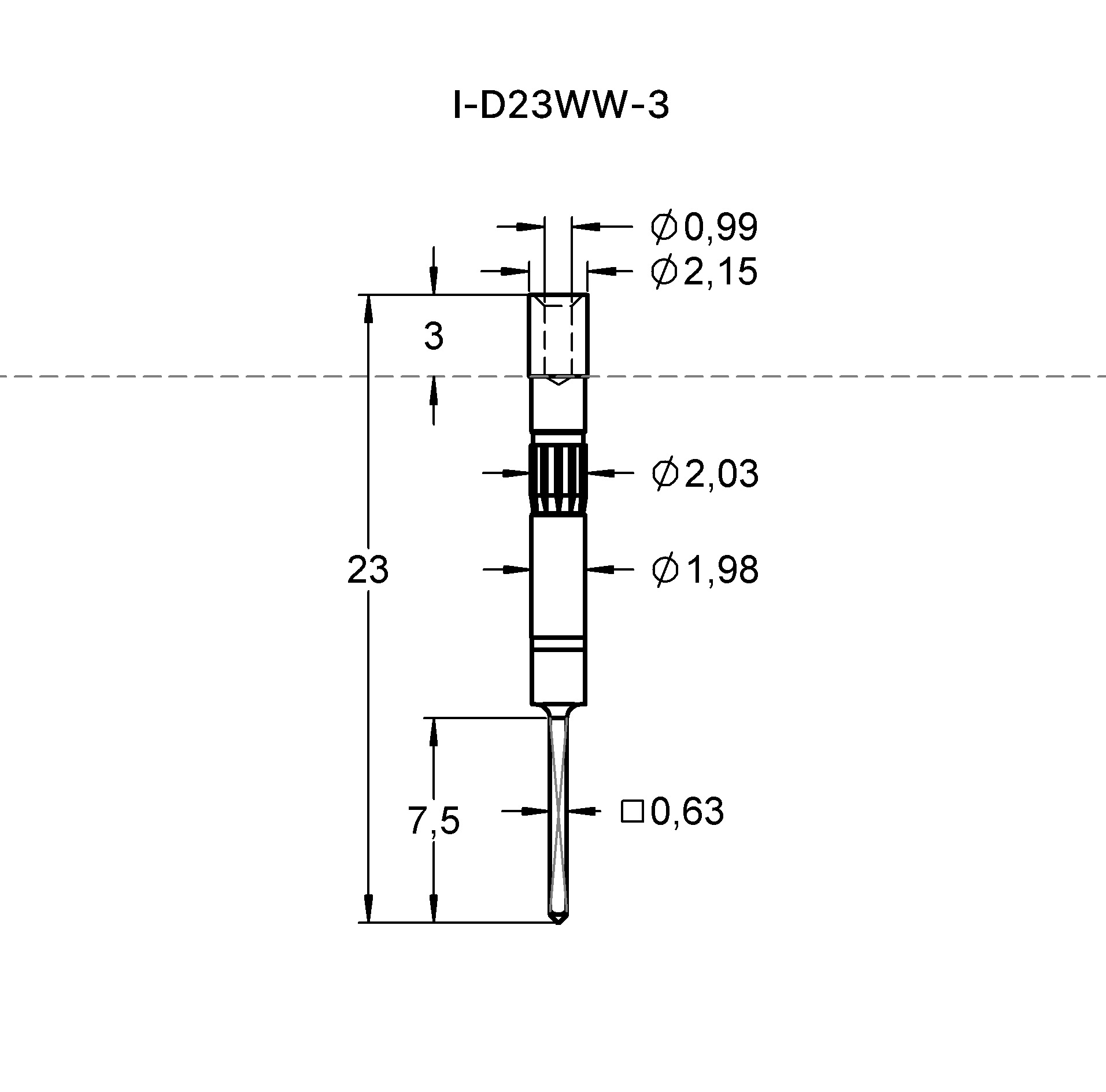

| Dimensions | |
|---|---|
| Total length (mm) | 23 |
| Tip style diameter (mm) | 2.15 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Plunger material | Brass |
| Plunger plating | Gold |
Graphics
Beschreibung des Produkts

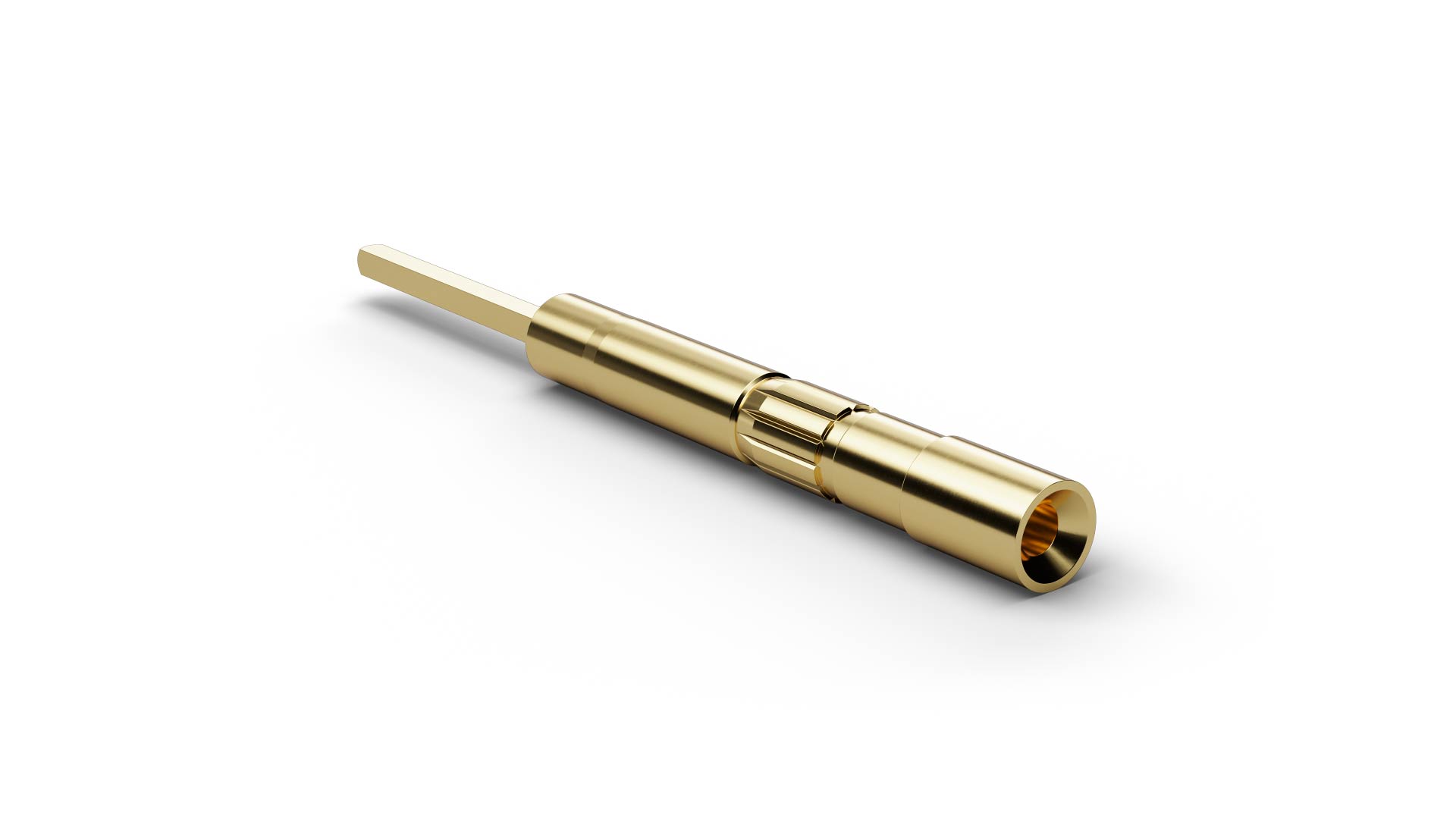

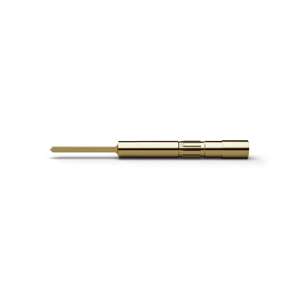

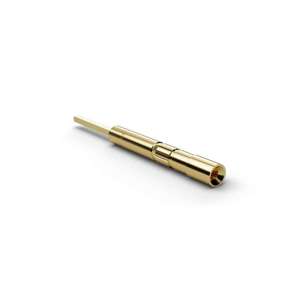

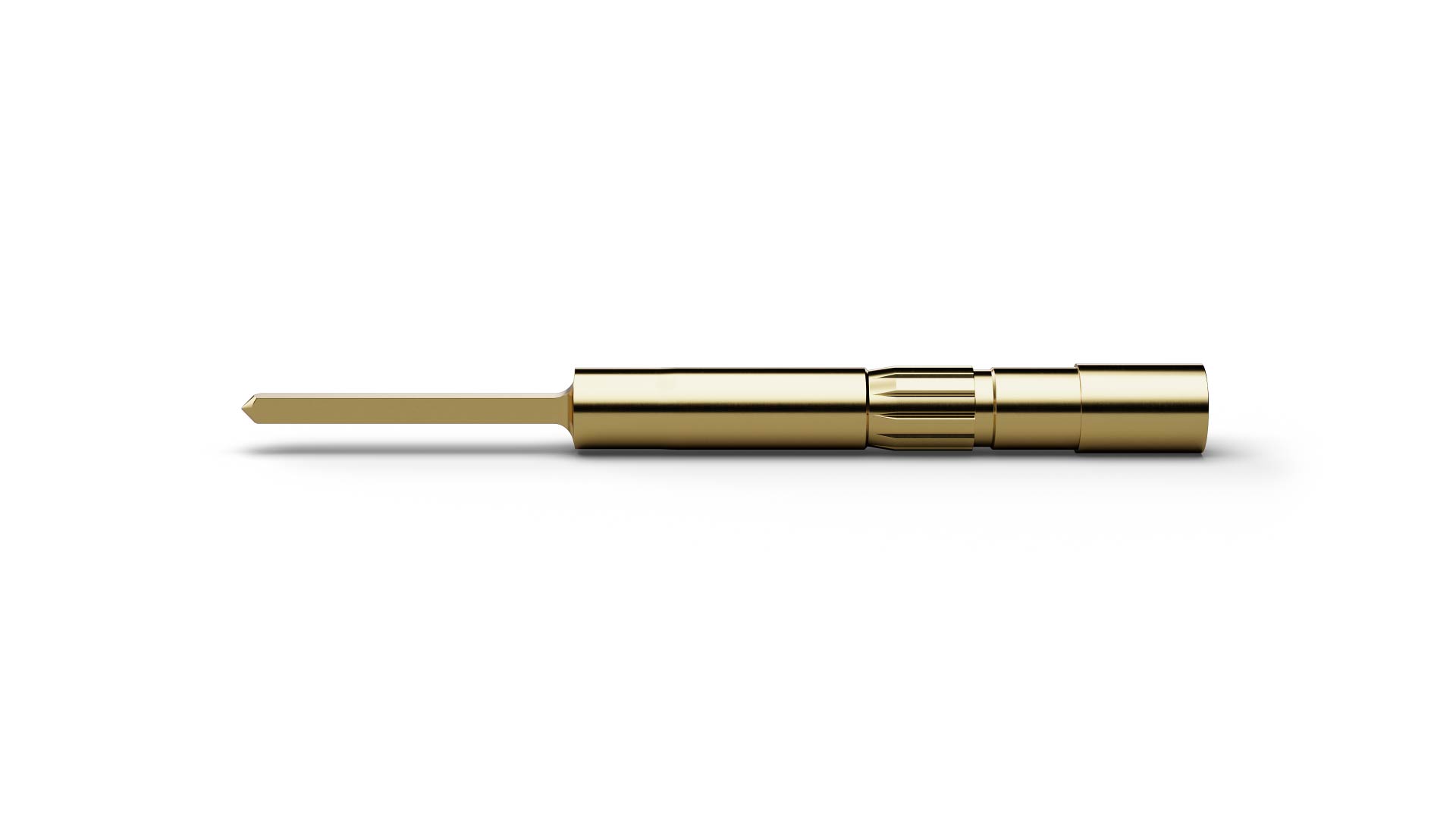

I-D23WW-3 (item number 1007284) is a Contact Probe for defined interfaces within electronic test setups. I-D23WW-3 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. I-D23WW-3 combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 2.15 mm. The plunger in I-D23WW-3 is made of brass and is gold-plated.
