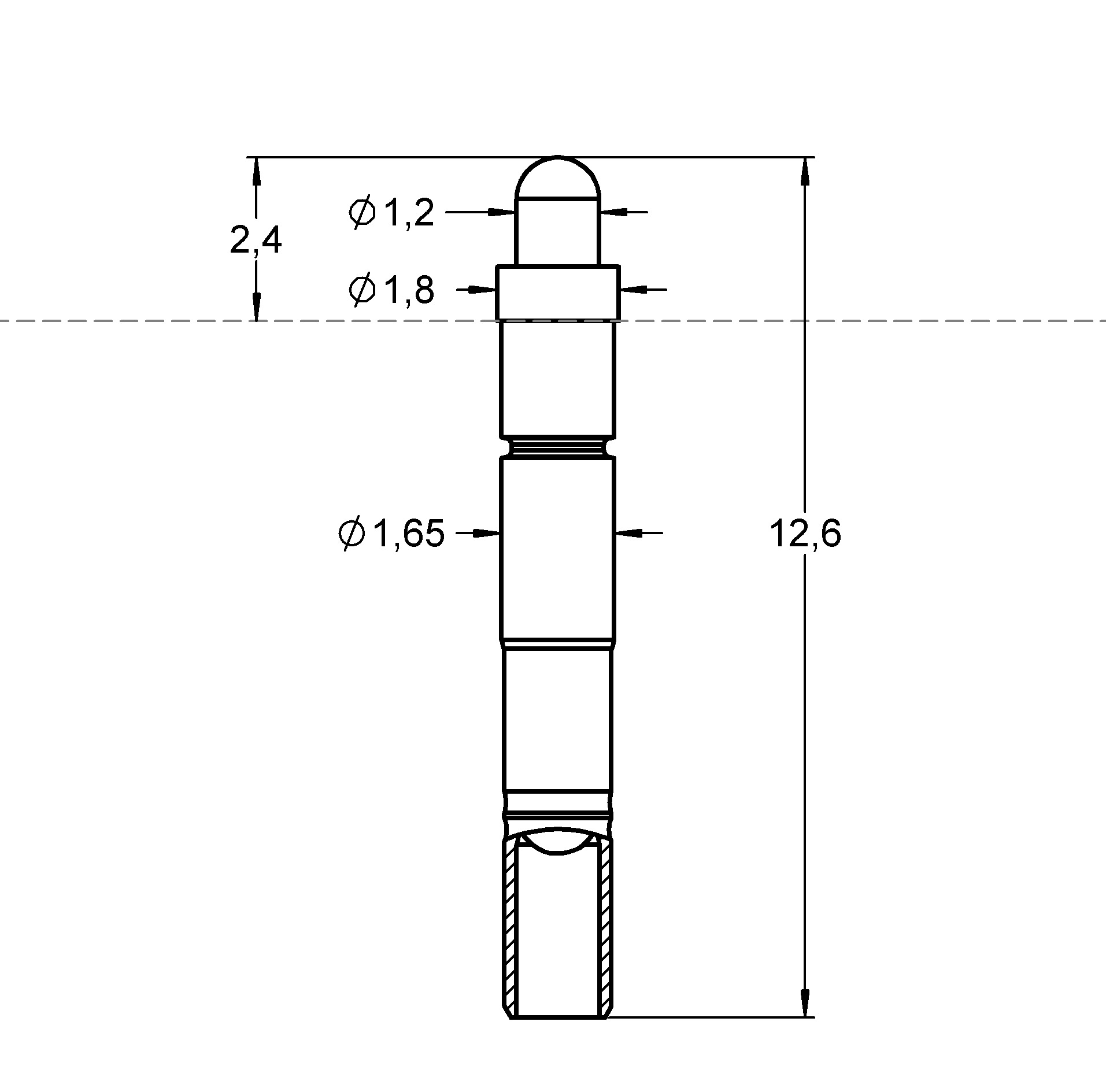

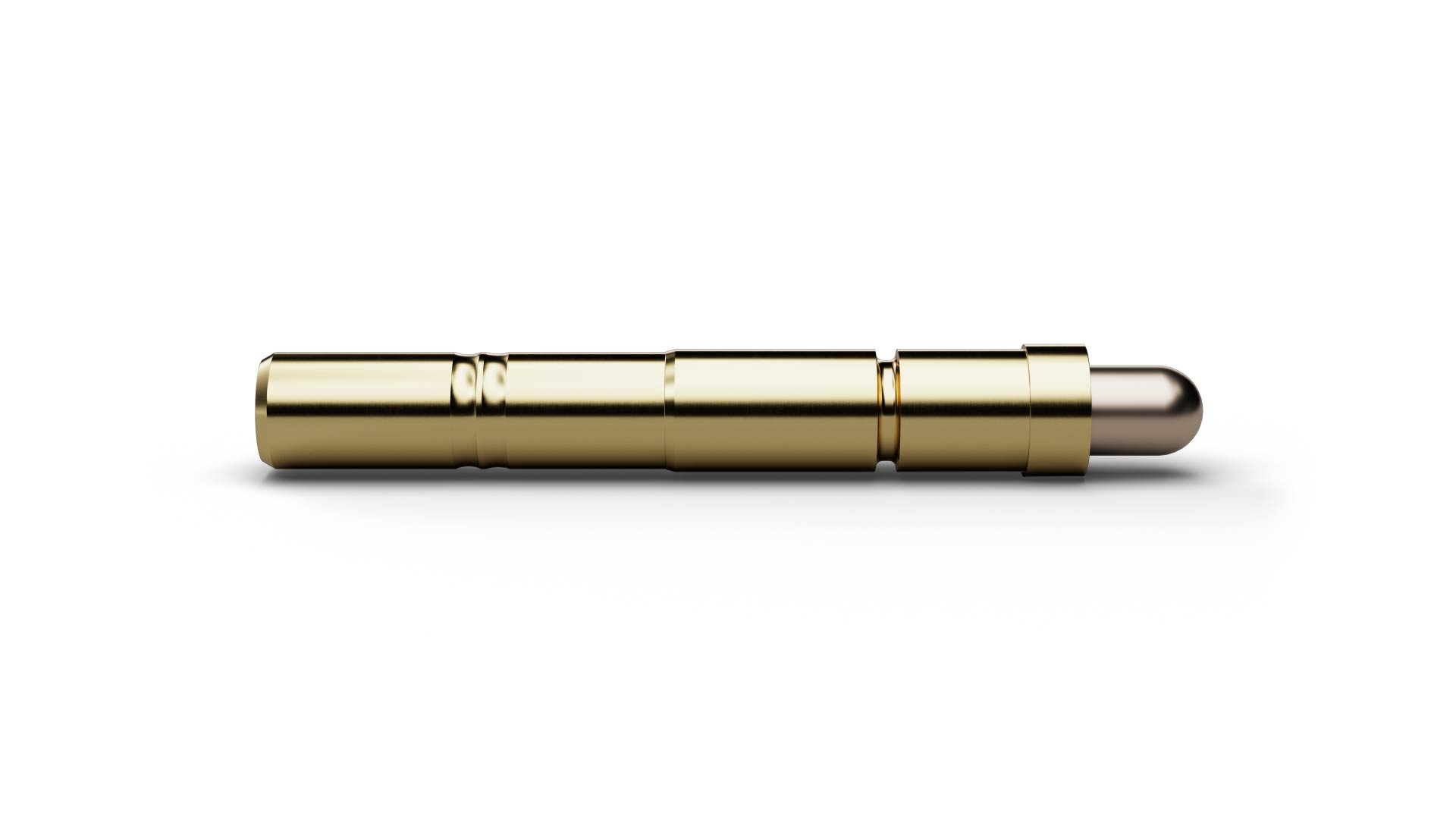

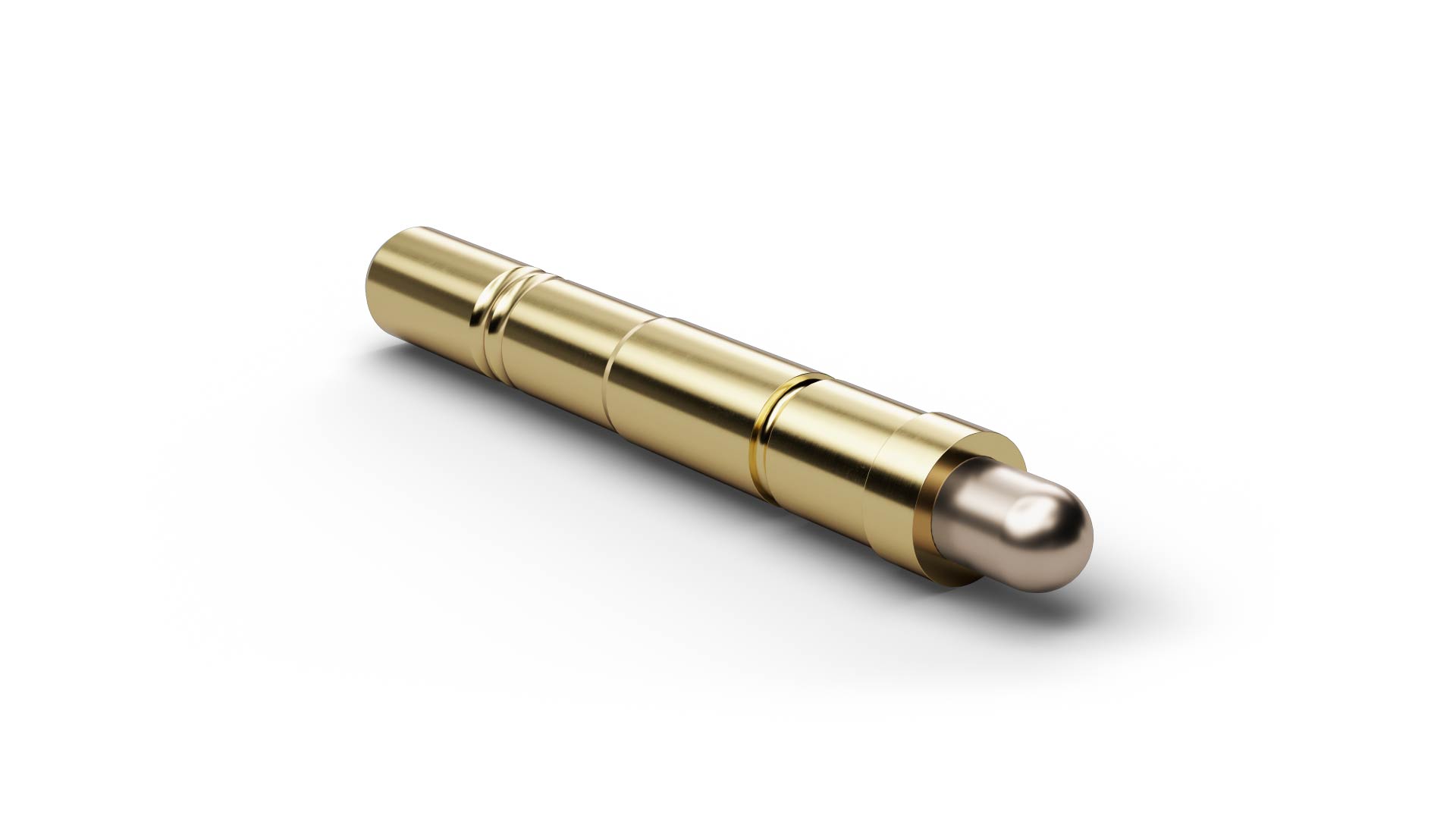

The Pogo Connector P16511S120R130TL126CR (item number 1108056) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P16511S120R130TL126CR is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P16511S120R130TL126CR is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P16511S120R130TL126CR, a pitch of 2.54 mm / 100 mil is combined with 130 cN spring force and 1.3 mm nominal travel. P16511S120R130TL126CR is rated for 8 A continuous current with a typical contact resistance of 30 mΩ. On P16511S120R130TL126CR, tip style 11 (Spherical) has a diameter of 1.2 mm.
