Home › Products › Product Finder › P16511S120R130TL126CR

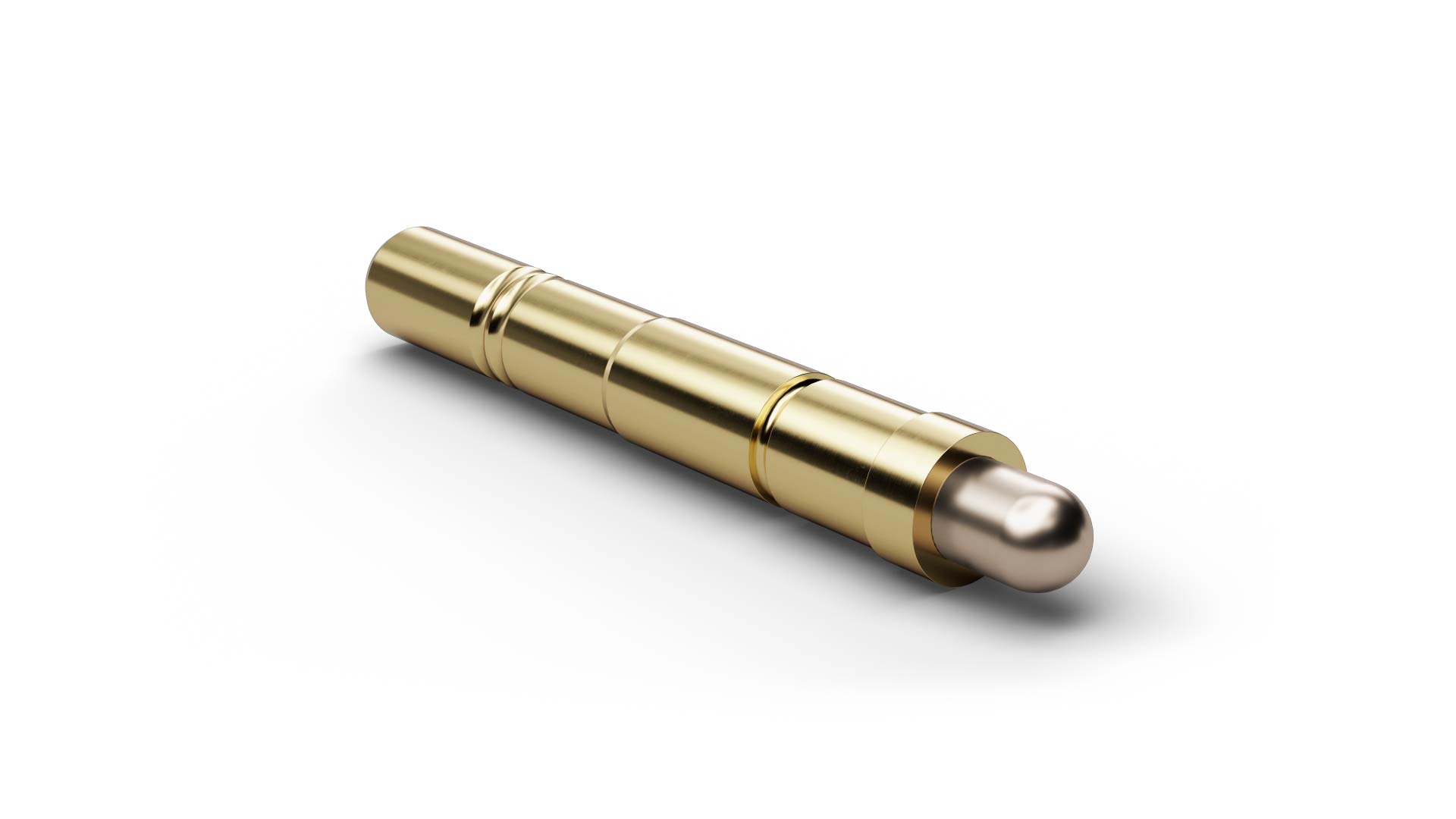

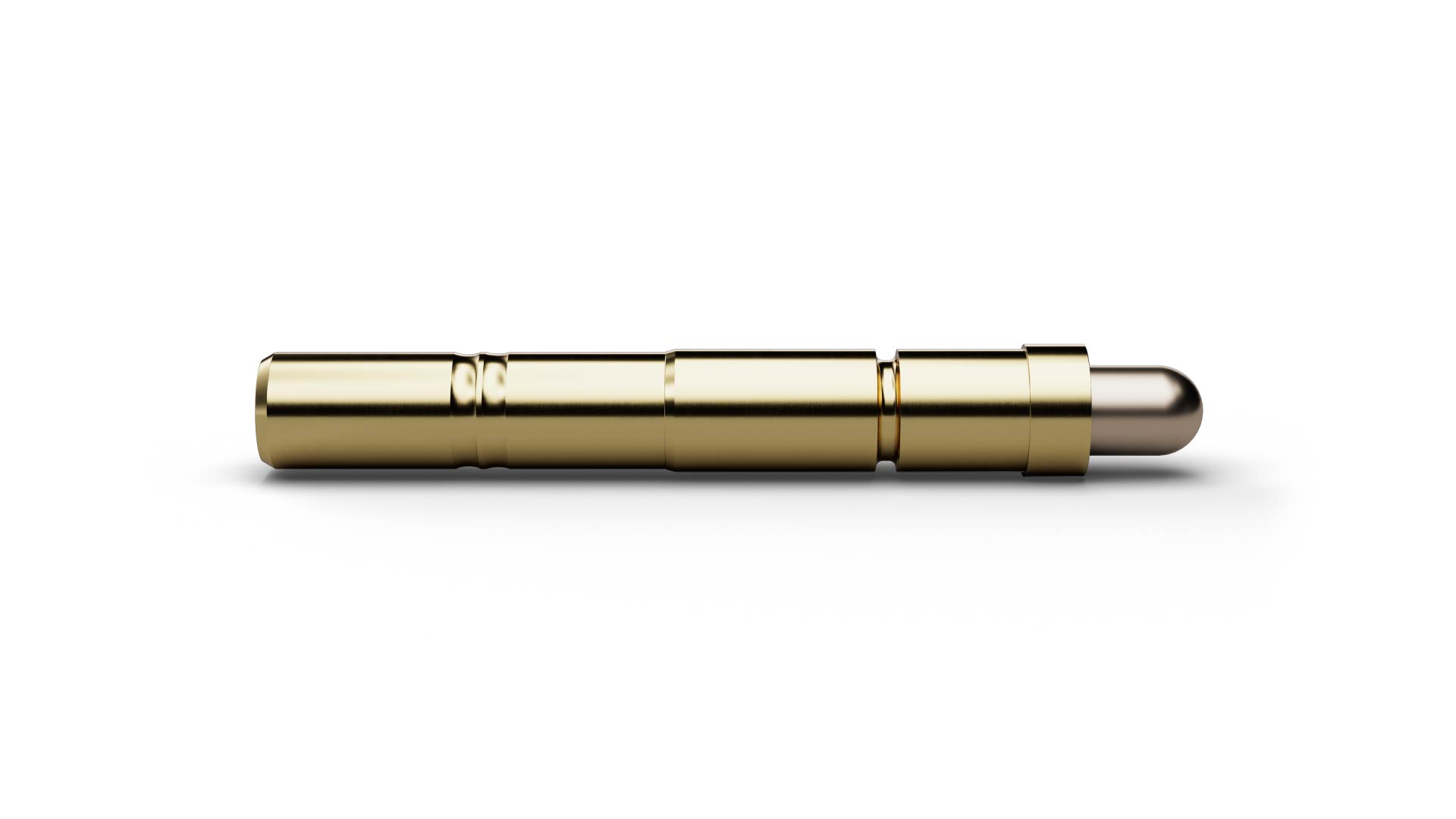

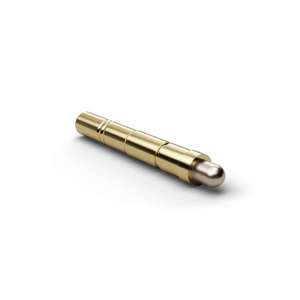

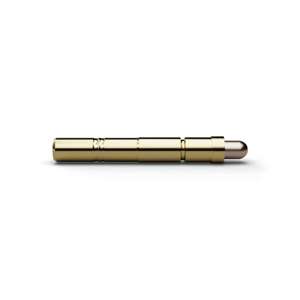

P16511S120R130TL126CR Perspective 1 P16511S120R130TL126CR Perspective 2

Pogo Connectors (≤ 2,54mm / 100mil) P16511S120R130TL126CR

Item number 1108056

Technical data sheet

Quantity

Technical data

General
Structure Basic Contact Probe
Type/family P-T / P165T-L126
Pitch (mm/mil) 2,54 / 100
Temperature -45°C...+200°C
Dimensions
Total length (mm) 12.6
Protrusion height (mm) 2.4
Tip style diameter (mm) 1.2
Barrel diameter (mm) 1.65
Collar diameter (mm) 1.78
Materials and surfaces
Tip style 11
Plunger material Steel
Plunger plating Rhodium
Barrel material Bronze
Barrel plating Gold
Spring material High-grade steel
Spring plating Silver
Mechanical specifications
Preload (cN) 50
Spring force (cN) 130
Nominal travel (mm) 1.3
Maximum travel (mm) 1.6
Connection Crimp Connection
Electrical specifications
Continuous current (A) 8
Typical contact resistance (mOhm) 30

Graphics

P16511S120R130TL126CR Family designation

Beschreibung des Produkts

The Pogo Connector P16511S120R130TL126CR (item number 1108056) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P16511S120R130TL126CR is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P16511S120R130TL126CR is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P16511S120R130TL126CR, a pitch of 2.54 mm / 100 mil is combined with 130 cN spring force and 1.3 mm nominal travel. P16511S120R130TL126CR is rated for 8 A continuous current with a typical contact resistance of 30 mΩ. On P16511S120R130TL126CR, tip style 11 (Spherical) has a diameter of 1.2 mm.
