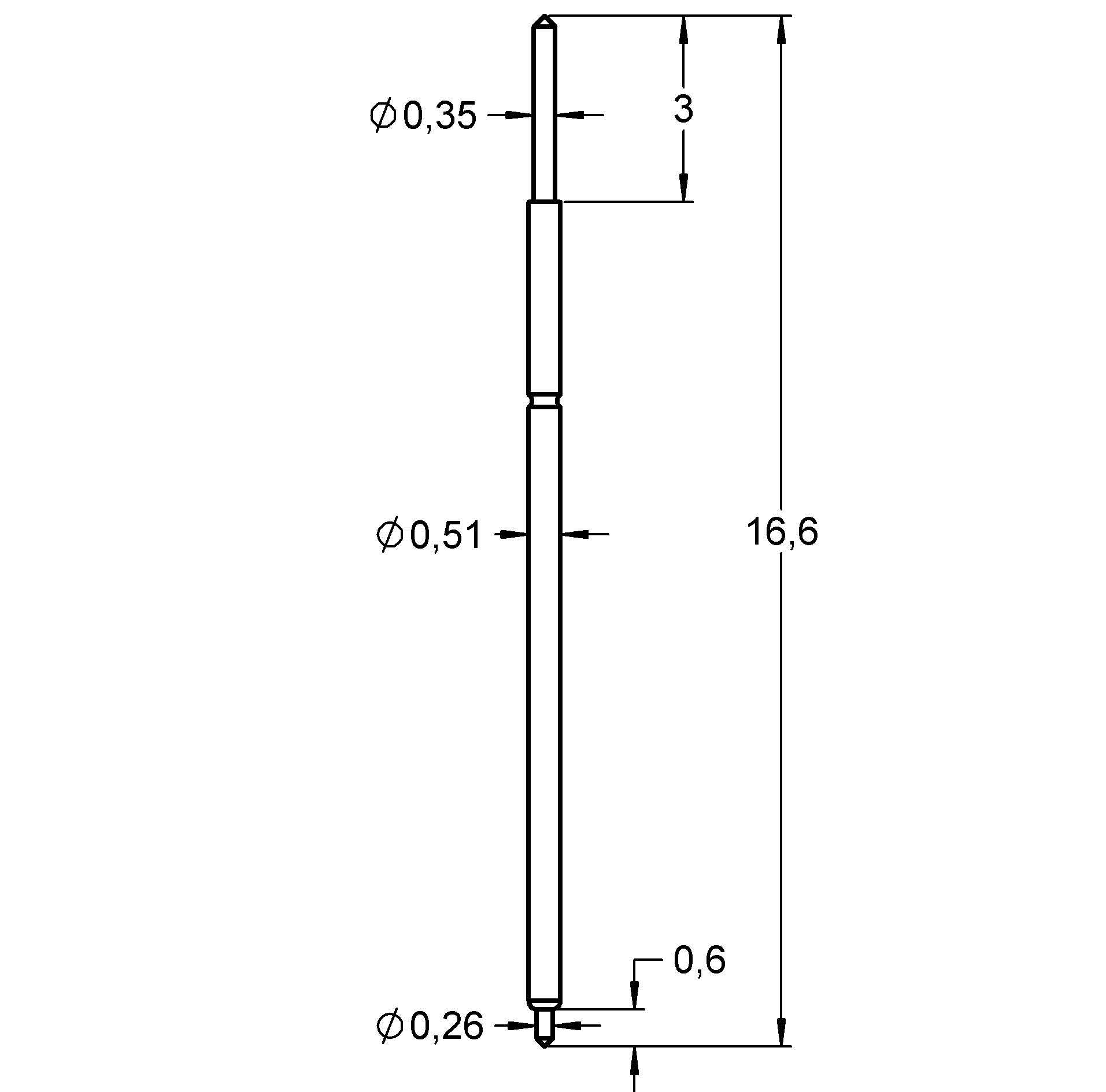

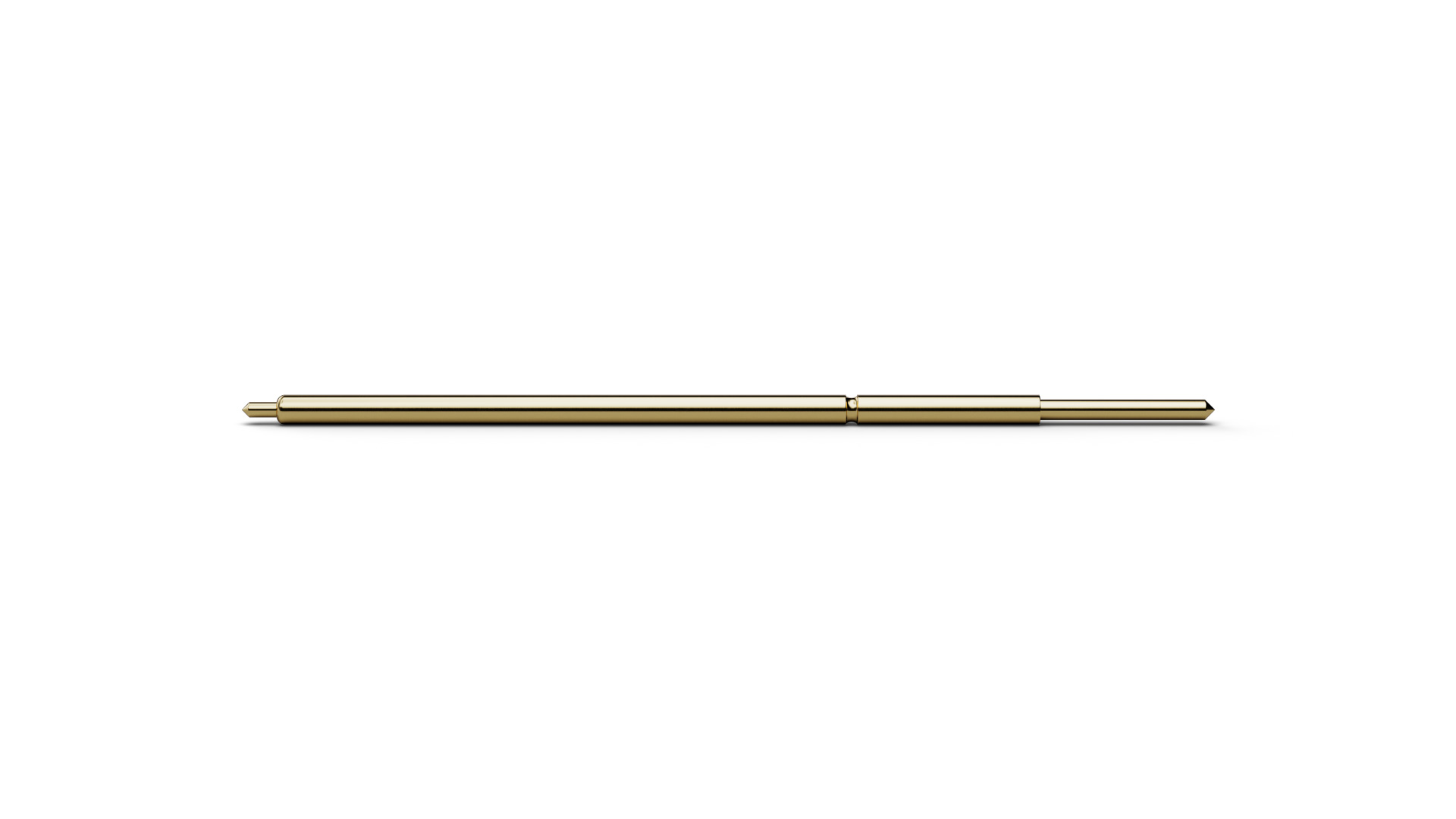

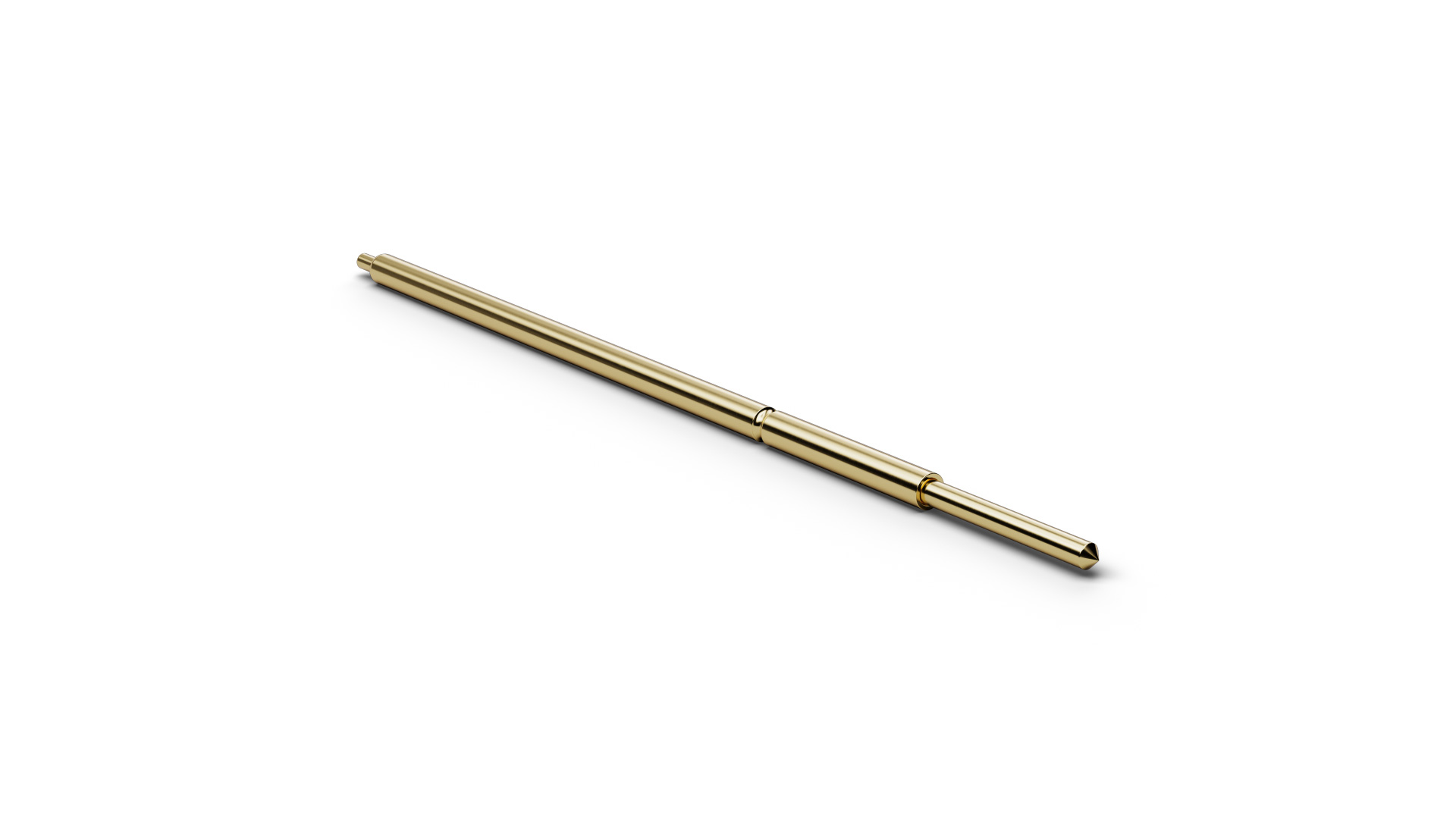

The Fine Pitch Probe FP510D0101B035G025L166 (item number 1120811) is designed for precise contacting at very small pitches. Tip style 01 (Conical 90°) targets FP510D0101B035G025L166 at solder pads and vias at small pitches; Fine Pitch Probes are used, among other applications, in semiconductor final test, WLCSP solutions, MEMS and micro-PCB testing. In FP510D0101B035G025L166, the double-plunger design provides spring-loaded contacting on both sides and can compensate for mechanical tolerances in compact interfaces. The design combines a pitch of 0.7 mm / 28 mil with tip style 01 (Conical 90°) and a tip diameter of 0.35 mm. Spring force is 25 cN at a nominal travel of 2 mm. The continuous-current rating of FP510D0101B035G025L166 is 1 A.
