技术数据
| 一般信息 | |
|---|---|
| 结构 | Coaxial Probe |
| 类型/系列 | HF76 |
| 间距（mm/mil） | 4,00 / 157,5 |
| 尺寸 | |
|---|---|
| 总长度 (mm) | 31.2 |
| 突出高度（毫米） | 19.95 |
| 针头直径 (mm) | 3.35 |
| 针管直径 (mm) | 3.8 |
| 内/外距离 (mm) | -0.1 |
| 针头直径 (mm) 2 | 1.3 |
| 材料和表面 | |
|---|---|
| 头型 | 16 |
| 柱塞材料 | Brass |
| 柱塞镀层 | Gold |
| 针管材料 | Brass |
| 针管镀层 | Gold |
| 弹簧材料 | Spring steel |
| 弹簧镀层 | Gold |
| 柱塞材料 2 | Beryllium copper |
| 柱塞镀层 2 | Gold |
| 弹簧材料 2 | Spring steel |
| 弹簧镀层 2 | Gold |
| 机械规格 | |
|---|---|
| 预紧力（cN） | 160 |
| 弹力 (cN) | 510 |
| 标准行程 (mm) | 5.5 |
| 最大行程 (mm) | 6.4 |
| 螺纹式 | M3,5X0,35 |
| 工具尺寸 (mm) | 3,2 |
| 连接 | STECKER |
| 目标语言 | HFM male |
| 电气规格 | |
|---|---|
| 阻抗 (ohm) | 50 |
| Fréquence (GHz) | 20 |
| 内部接触规格 | |
|---|---|
| 标准行程 (mm) 2 | 0.7 |
| 最大行程 (mm) 2 | 1.5 |
| 预紧力（cN） 2 | 100 |
| 弹力 (cN) 2 | 120 |

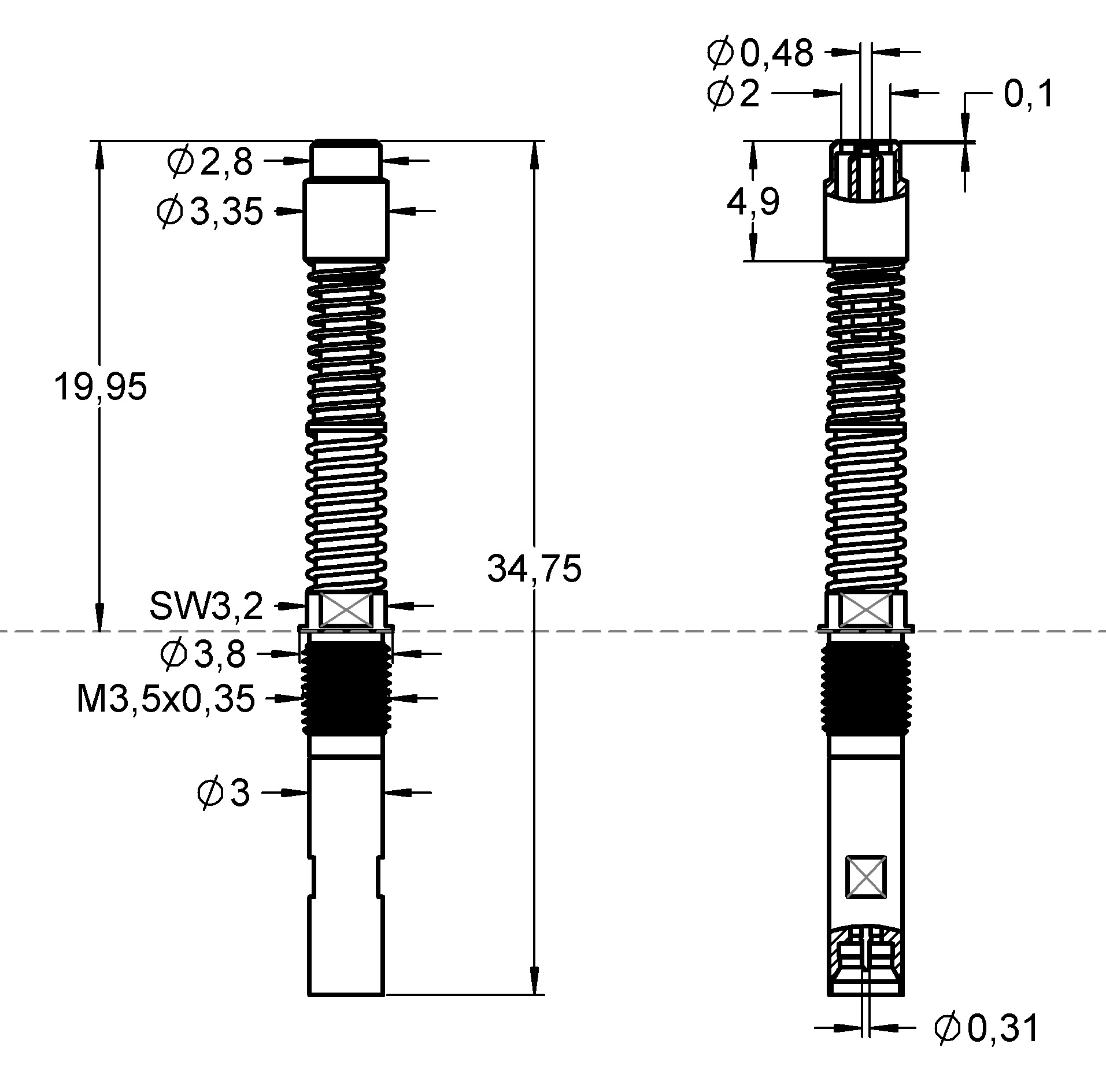

图形
Beschreibung des Produkts

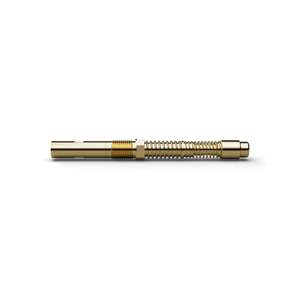

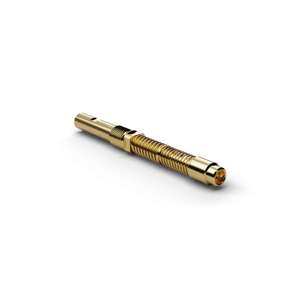

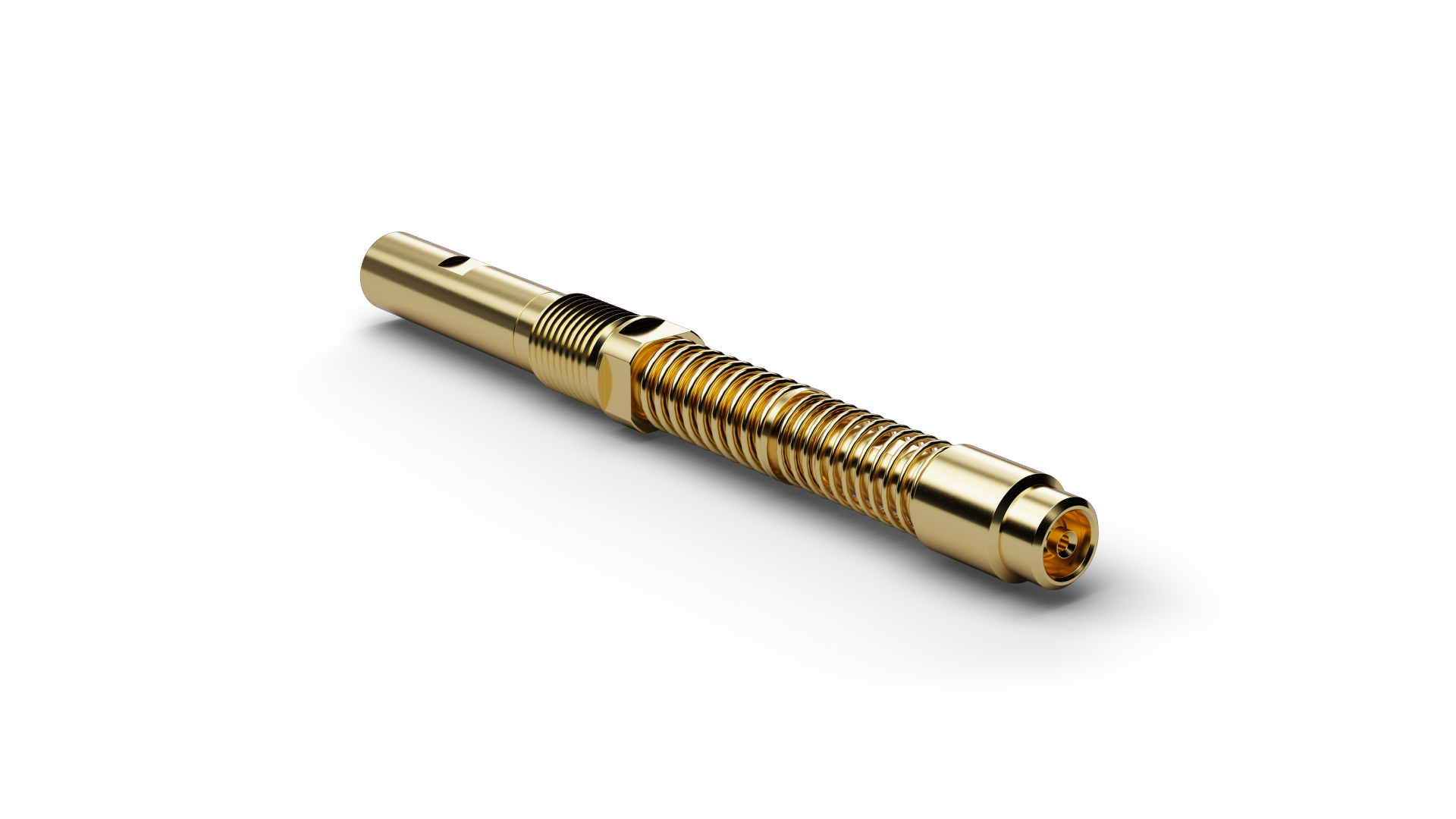

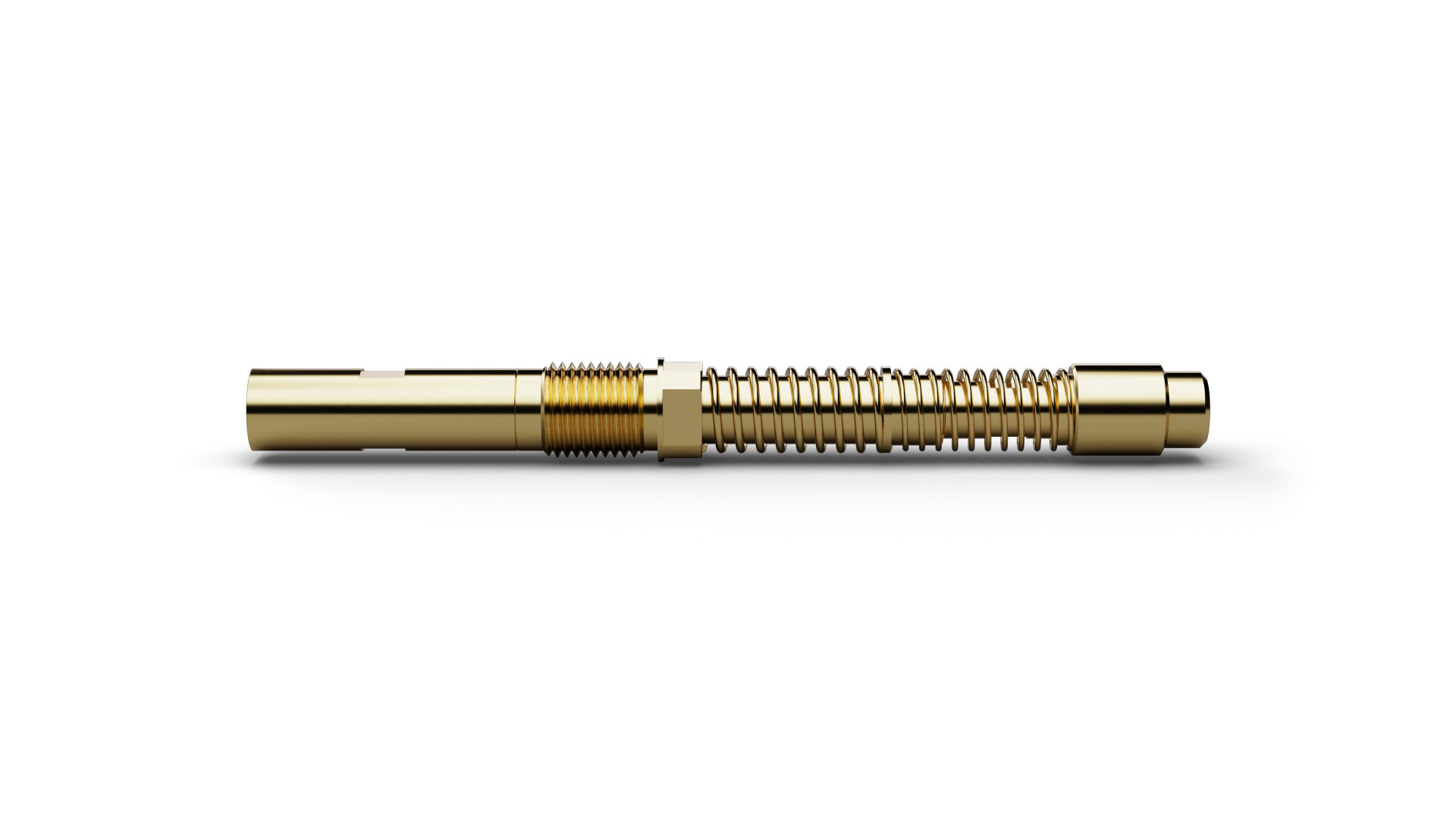

The High Frequency Probe HF76HFMm0120G630MSMPmS (item number 1138954) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 50 Ω, HF76HFMm0120G630MSMPmS supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range extends up to 20 GHz, and this version is intended for contacting HFM male connectors. On HF76HFMm0120G630MSMPmS, spring forces of 510 cN on the outer contact and 120 cN on the inner contact provide defined mechanical contacting.
