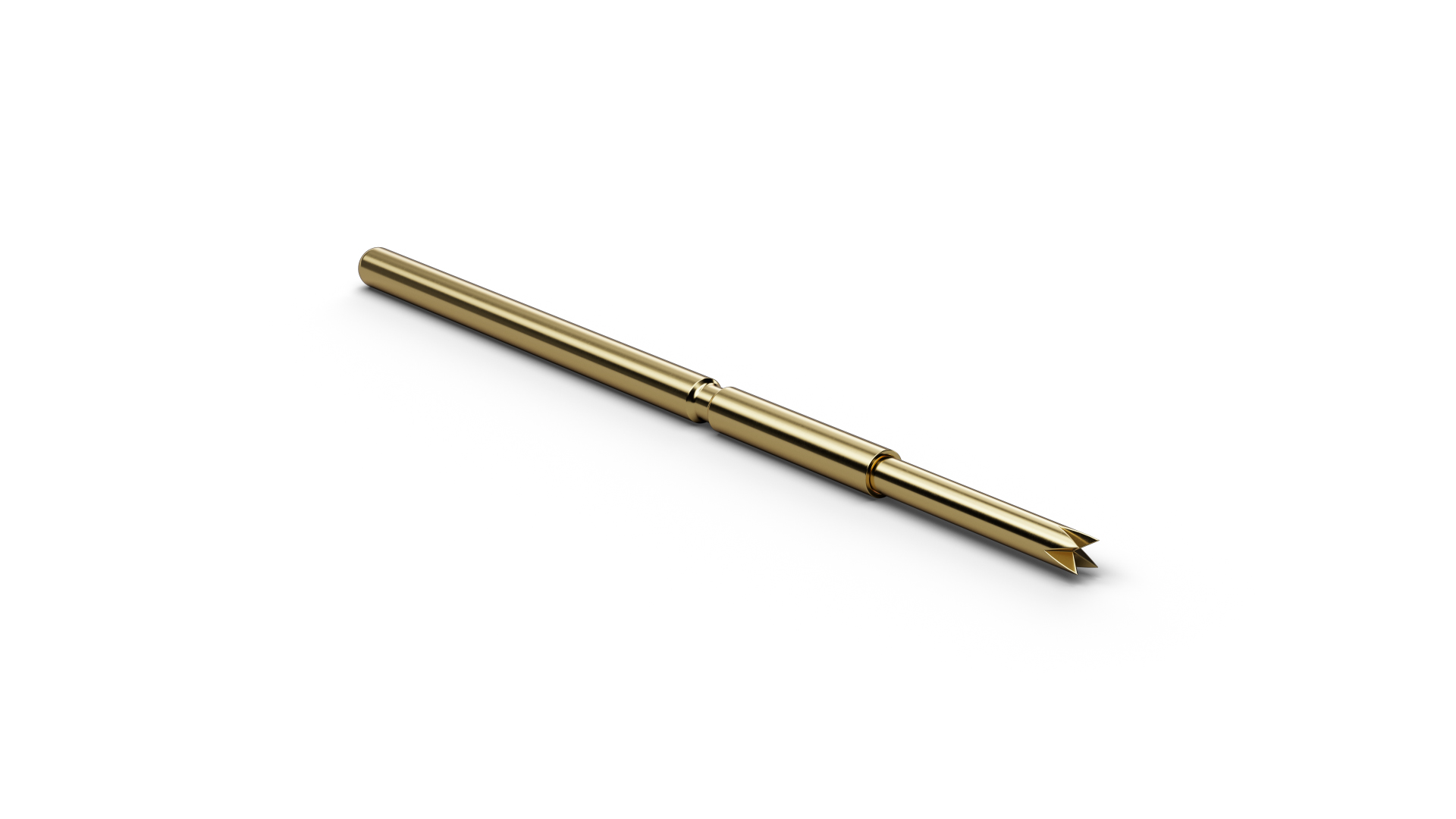

F11121S053L095H (item number 1143895) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 21 (4-point crown (self-cleaning)), F11121S053L095H combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F11121S053L095H combines a pitch of 1.27 mm / 50 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.53 mm. For F11121S053L095H, spring force is 95 cN at a nominal travel of 2 mm. F11121S053L095H is rated for 3 A continuous current with a typical contact resistance of 65 mΩ. The plunger in F11121S053L095H is made of steel and uses Longtime Gold plating. The final H identifies the high-temperature version; F11121S053L095H is suitable for applications up to 200 °C.
