Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCE04 |
| Paso (mm/mil) | 8,00 / 314 |
| Temperatura | -45°C...+200°C |

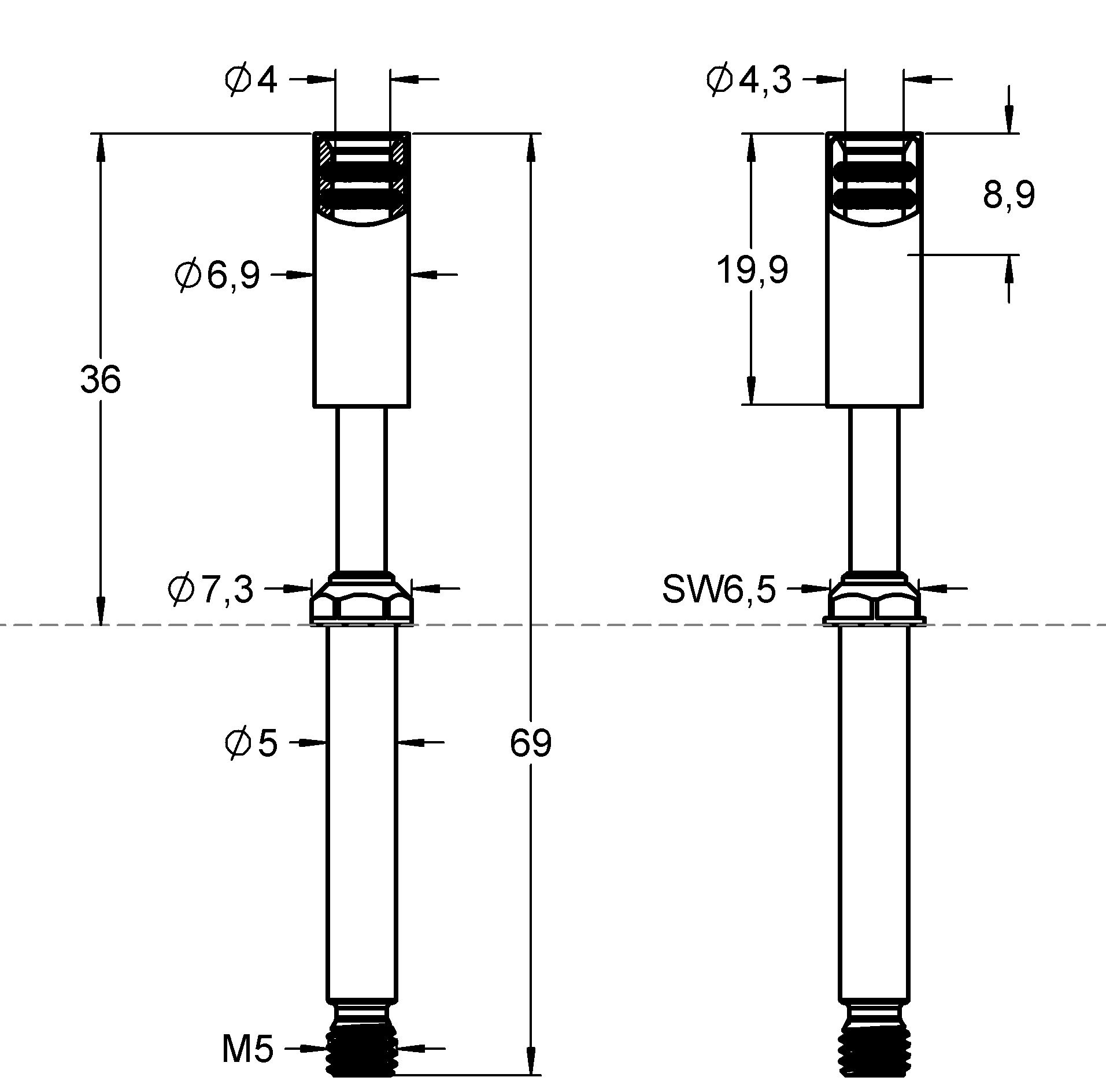

| Dimensiones | |
|---|---|
| Longitud total (mm) | 69 |
| Altura sobresaliente (mm) | 36 |
| Diámetro del estilo de punta (mm) | 6.9 |
| Diámetro del casquillo (mm) | 5 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 52 |
| Material del émbolo | Brass |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 500 |
| Fuerza del resorte (cN) | 1000 |
| Recorrido nominal (mm) | 4.4 |
| Recorrido máximo (mm) | 5.5 |
| Rosca | M5 |
| Tamaño de herramienta (mm) | 6,5 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 40 |
| Resistencia de contacto típica (mΩ) | 2 |
Gráficos
Beschreibung des Produkts
The High Current Probe HCE04FA52G10E089 (item number 1167327) is designed for safe transmission of high electrical currents in test and contacting applications. HCE04FA52G10E089 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCE04FA52G10E089, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCE04FA52G10E089 includes battery and power-electronics testing. The probe is rated for 40 A continuous current with a typical contact resistance of 2 mΩ. HCE04FA52G10E089 operates with 1000 cN spring force and 4.4 mm nominal travel.
