Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | HCE04 |
| Pas (mm/mil) | 8,00 / 314 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 69 |
| Hauteur hors tout (mm) | 36 |
| Diamètre du style de pointe (mm) | 6.9 |
| Diamètre du fût (mm) | 5 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 52 |
| Matériau du piston | Brass |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 500 |
| Force du ressort (cN) | 1000 |
| Course nominale (mm) | 4.4 |
| Course maximale (mm) | 5.5 |
| Filetage | M5 |
| Taille d’outil (mm) | 6,5 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 40 |
| Résistance de contact typique (mΩ) | 2 |

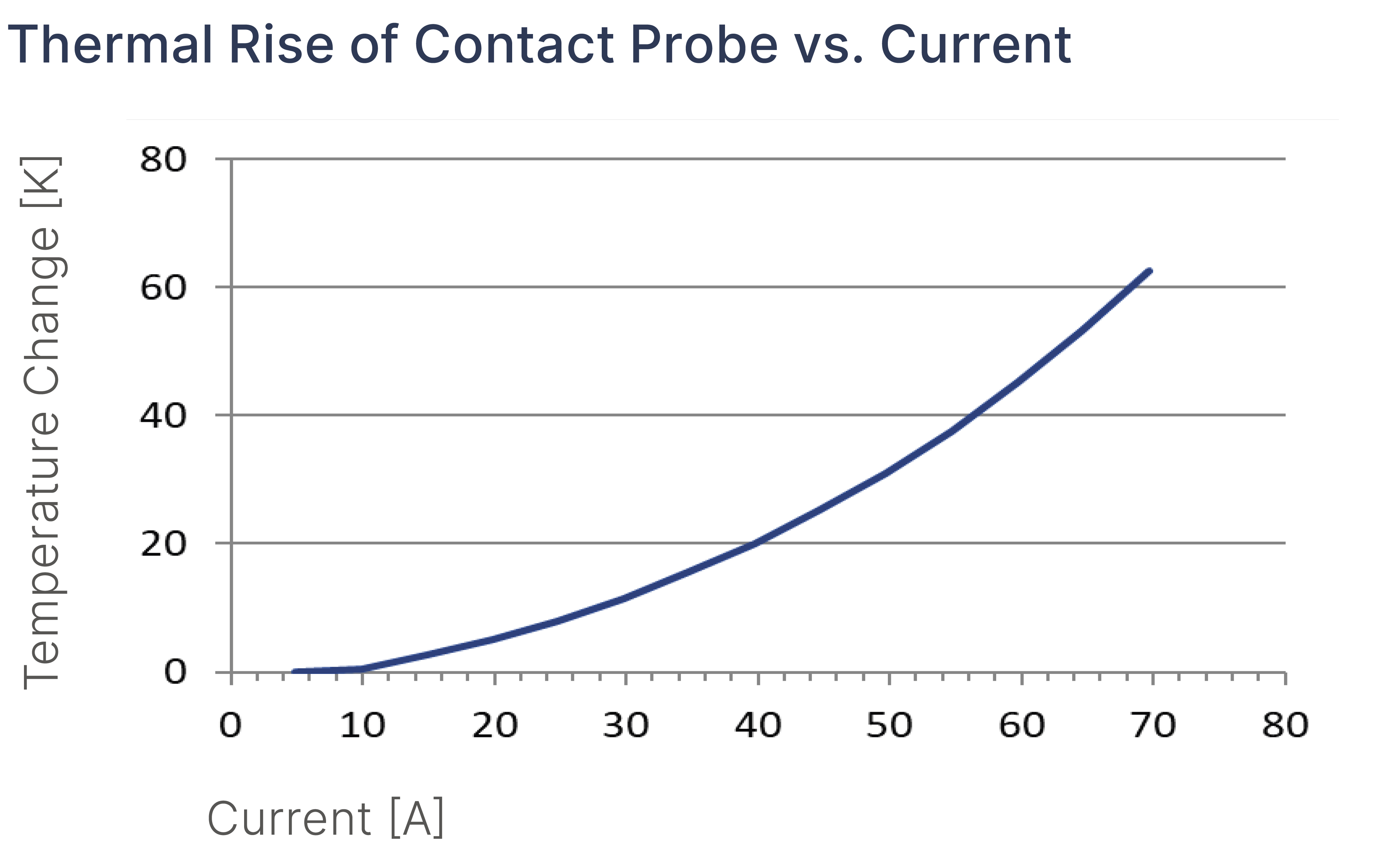

Graphiques
Beschreibung des Produkts
The High Current Probe HCE04FA52G10E089 (item number 1167327) is designed for safe transmission of high electrical currents in test and contacting applications. HCE04FA52G10E089 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCE04FA52G10E089, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCE04FA52G10E089 includes battery and power-electronics testing. The probe is rated for 40 A continuous current with a typical contact resistance of 2 mΩ. HCE04FA52G10E089 operates with 1000 cN spring force and 4.4 mm nominal travel.
