Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HCE04 |
| Pitch (mm/mil) | 8,00 / 314 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 69 |
| Protrusion height (mm) | 36 |
| Tip style diameter (mm) | 6.9 |
| Barrel diameter (mm) | 5 |
| Materials and surfaces | |
|---|---|
| Tip style | 52 |
| Plunger material | Brass |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 500 |
| Spring force (cN) | 1000 |
| Nominal travel (mm) | 4.4 |
| Maximum travel (mm) | 5.5 |
| Thread | M5 |
| Tool size (mm) | 6,5 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 40 |
| Typical contact resistance (mOhm) | 2 |
Graphics
Beschreibung des Produkts

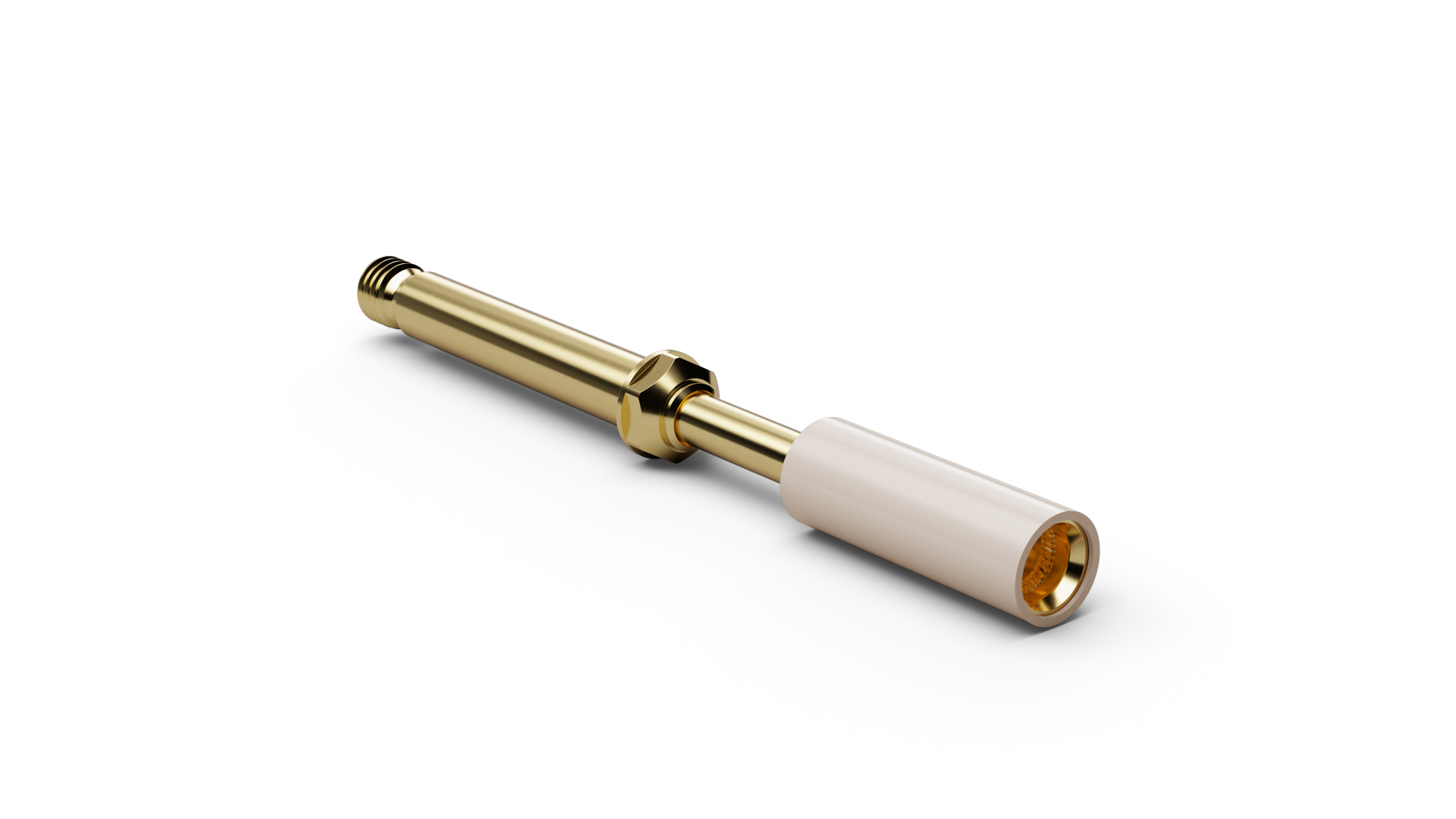

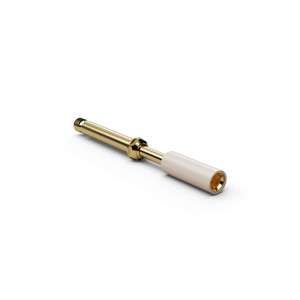

The High Current Probe HCE04FA52G10E089 (item number 1167327) is designed for safe transmission of high electrical currents in test and contacting applications. HCE04FA52G10E089 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCE04FA52G10E089, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCE04FA52G10E089 includes battery and power-electronics testing. The probe is rated for 40 A continuous current with a typical contact resistance of 2 mΩ. HCE04FA52G10E089 operates with 1000 cN spring force and 4.4 mm nominal travel.
