Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | I- |
| Pas (mm/mil) | 3,00 / 118 |
| Température | -45°C...+250°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 21.62 |
| Diamètre du style de pointe (mm) | 2.5 |
| Diamètre du fût (mm) | 1.36 |
| Diamètre de la bague de serrage (mm) | 1.5 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 16 |
| Matériau du piston | Brass |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Uncoated |
| Matériau du ressort | Brass |
| Revêtement du ressort | Uncoated |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 10 |
Graphiques
Beschreibung des Produkts

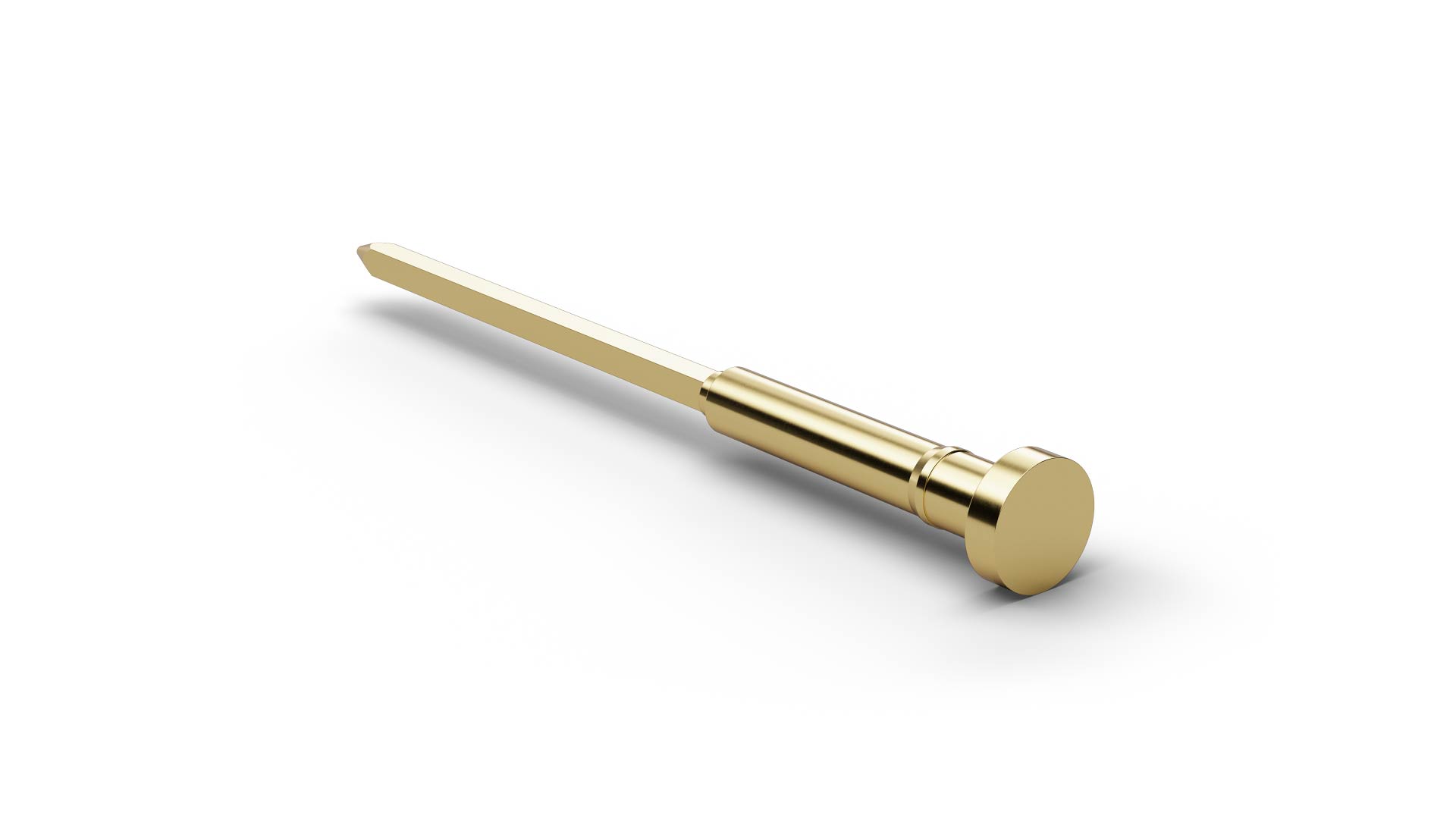

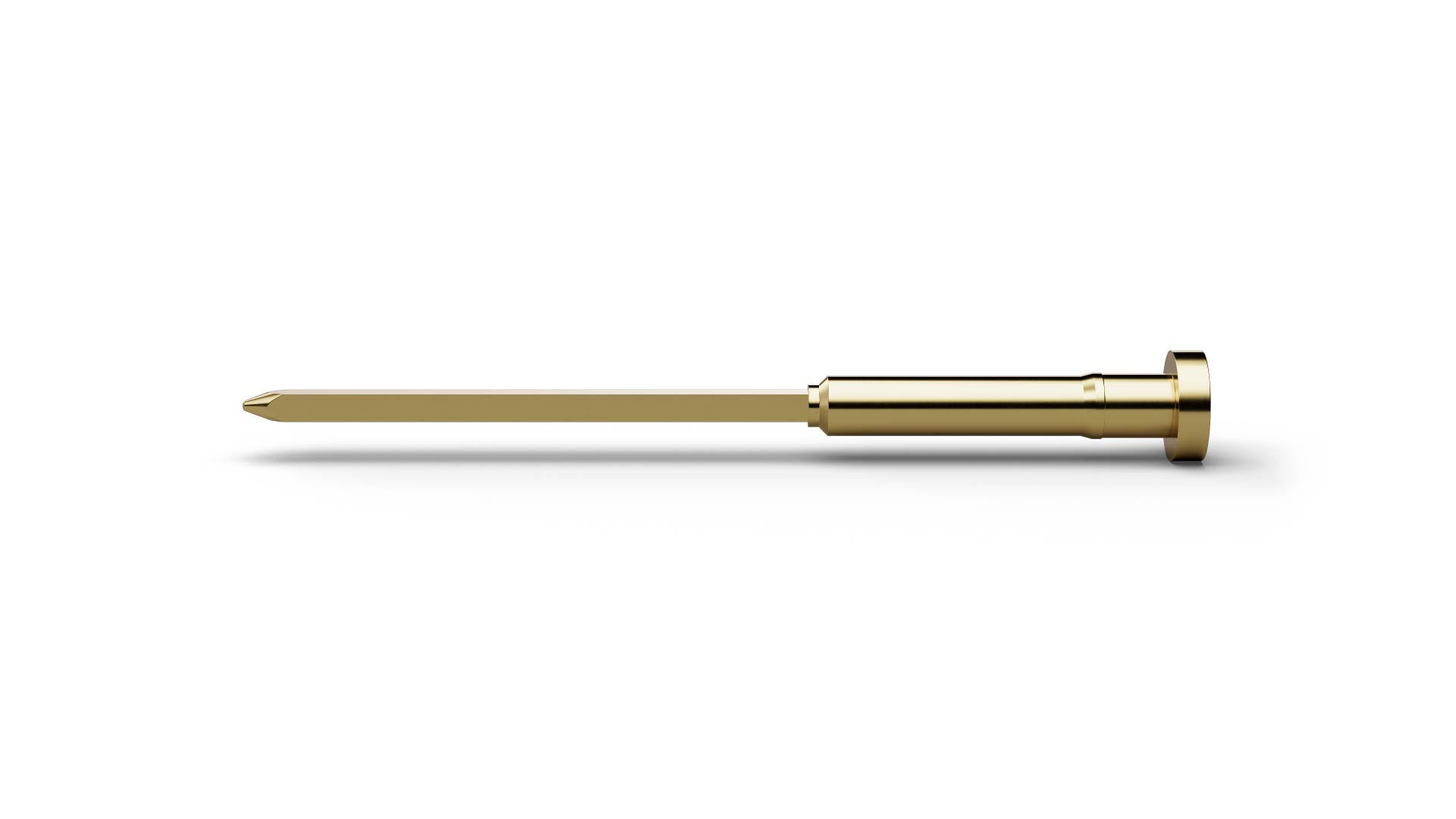

The Interface Probe I-G1S2 (item number 1006531) is designed to transfer electrical signals between the test fixture and test system. I-G1S2 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. The design combines a pitch of 3 mm / 118 mil with tip style 16 (Flat) and a tip diameter of 2.5 mm. I-G1S2 is specified for 10 A continuous current. The plunger in I-G1S2 is made of brass and is gold-plated.
