Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F562 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 24.7 |
| Protrusion height (mm) | 6.2 |
| Tip style diameter (mm) | 1.9 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 15 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 2.7 |
| Maximum travel (mm) | 4.1 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |

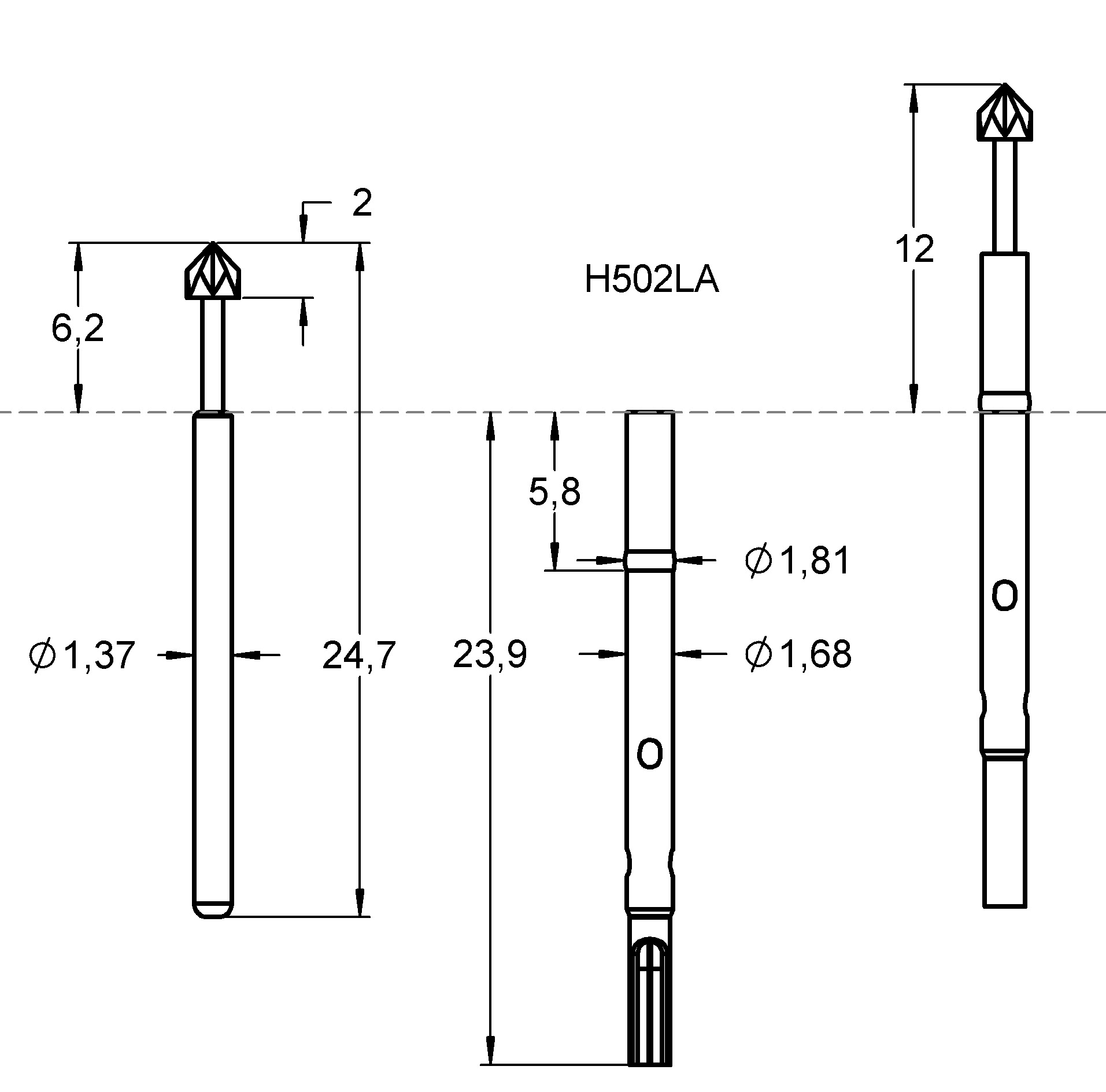

Graphics

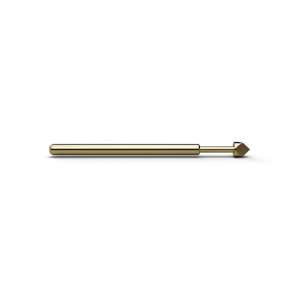

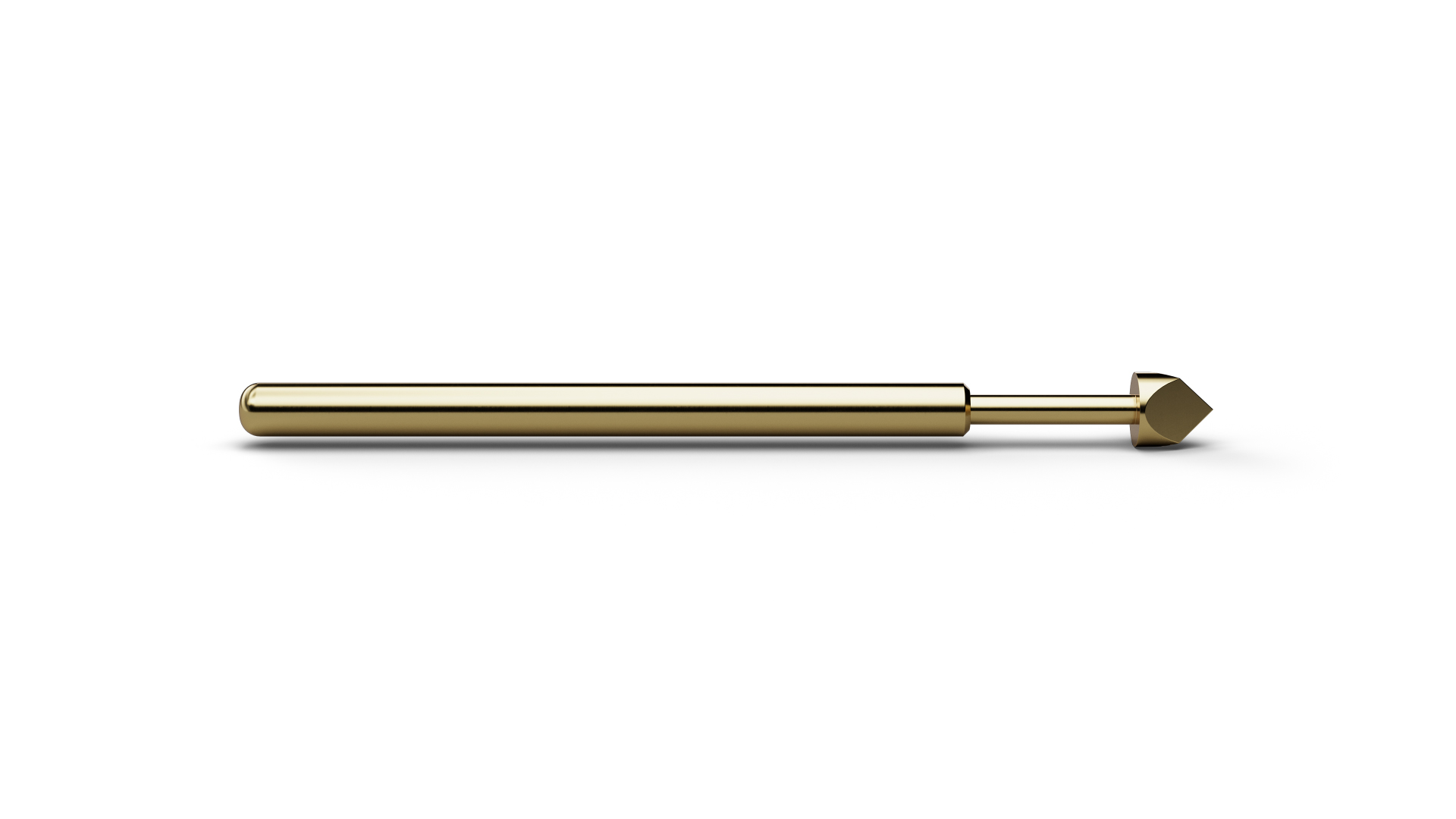

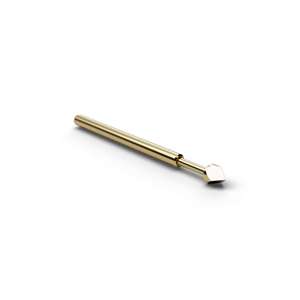

Beschreibung des Produkts
As a Basic Contact Probe, F56215B190G200 (item number 1001324) establishes a spring-loaded electrical connection to the test point. With tip style 15 (Triangular 45° stepped), F56215B190G200 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F56215B190G200 combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.9 mm. For F56215B190G200, spring force is 200 cN at a nominal travel of 2.7 mm. The electrical rating of F56215B190G200 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F56215B190G200 is made of beryllium copper and is gold-plated.
