Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F563 |
| Pitch (mm/mil) | 3,00 / 118 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33 |
| Protrusion height (mm) | 16 |
| Tip style diameter (mm) | 1.3 |
| Barrel diameter (mm) | 2.03 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 180 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 6 |
| Typical contact resistance (mOhm) | 100 |

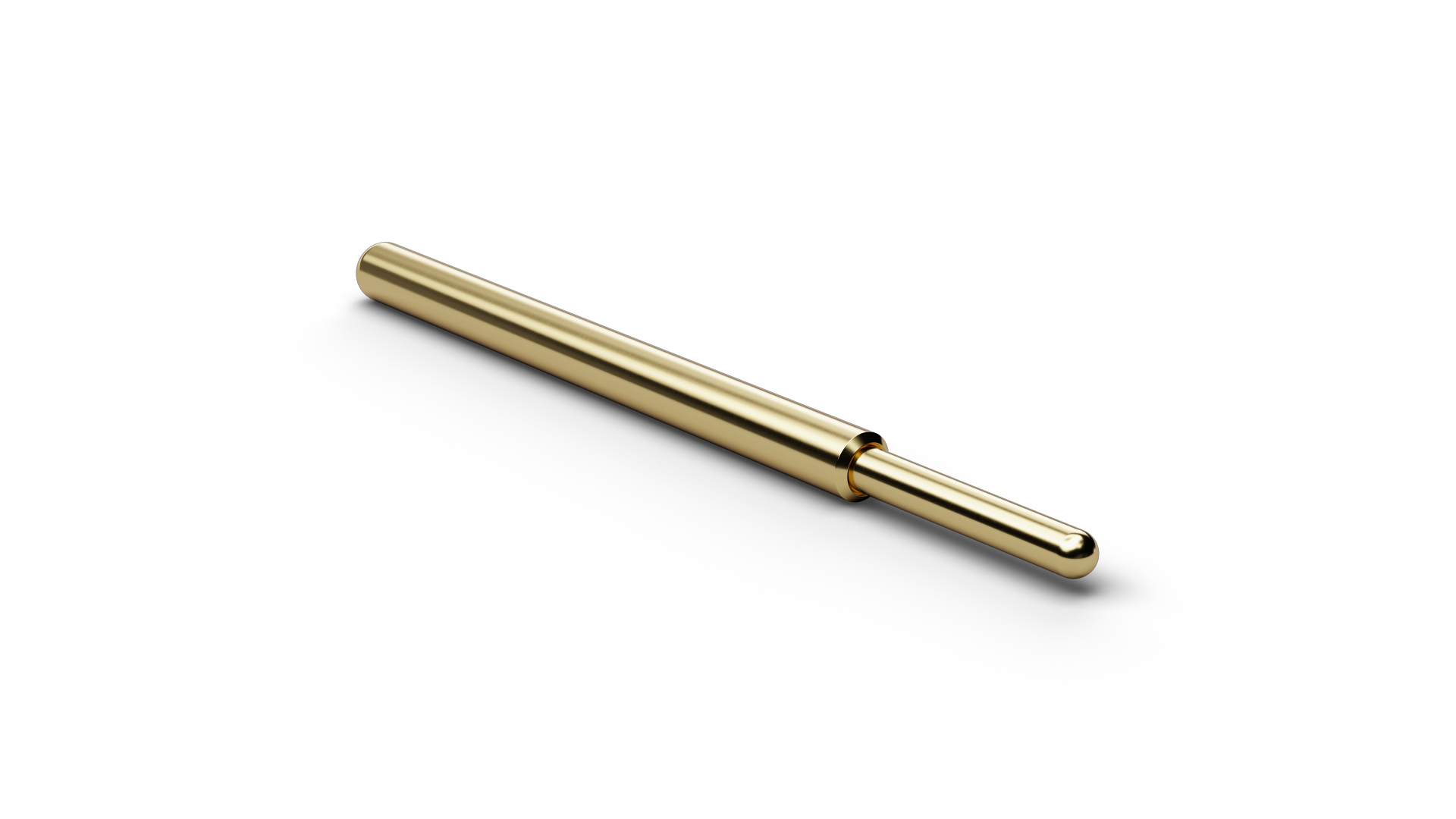

Graphics
