Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F538 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 25.7 |
| Protrusion height (mm) | 7.2 |
| Tip style diameter (mm) | 1.9 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 07 |
| Plunger material | Steel |
| Plunger plating | Nickel |
| Barrel material | Bronze |
| Barrel plating | Silver |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 220 |
| Nominal travel (mm) | 2.7 |
| Maximum travel (mm) | 4 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 55 |
Graphics
Beschreibung des Produkts

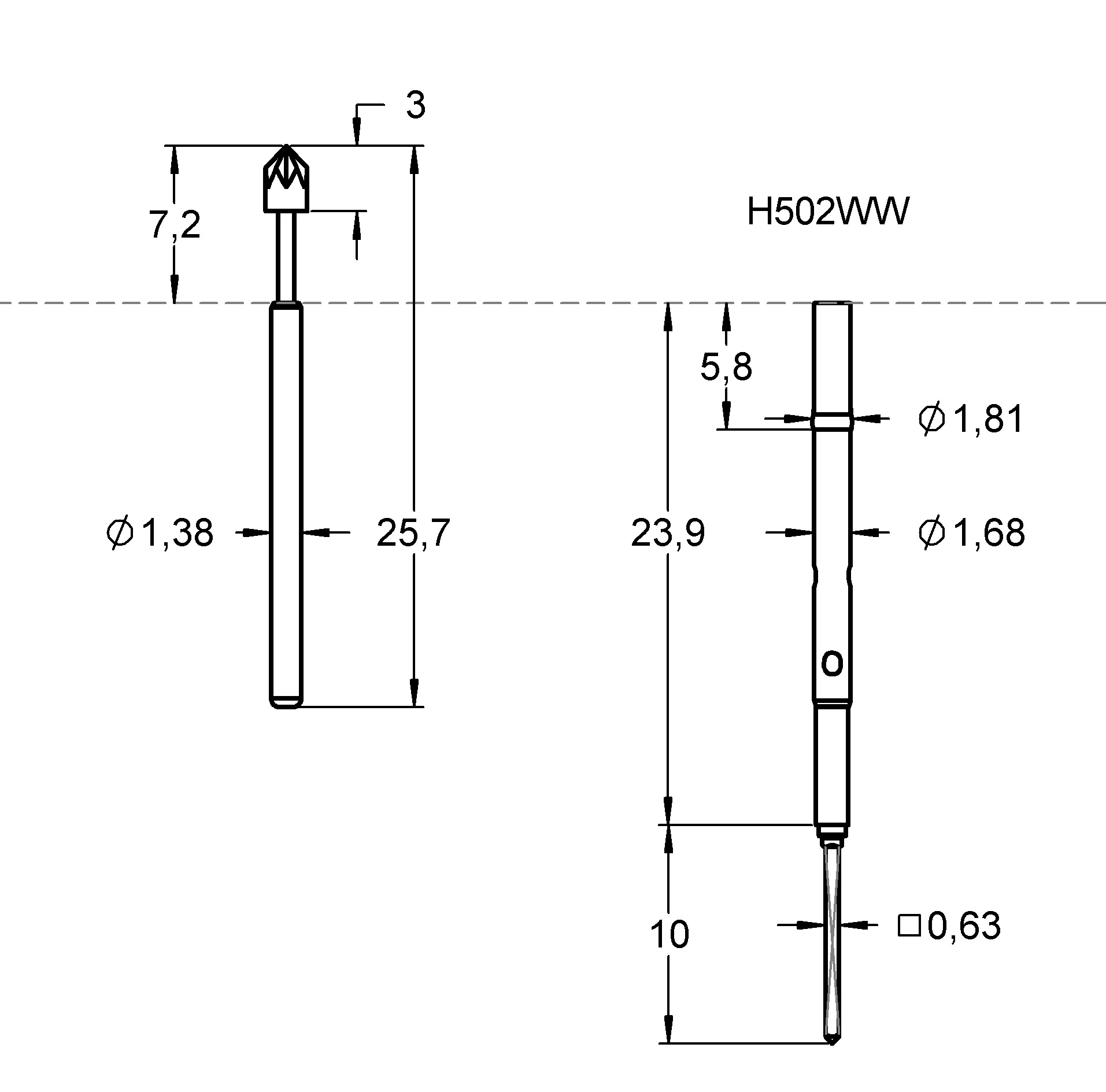

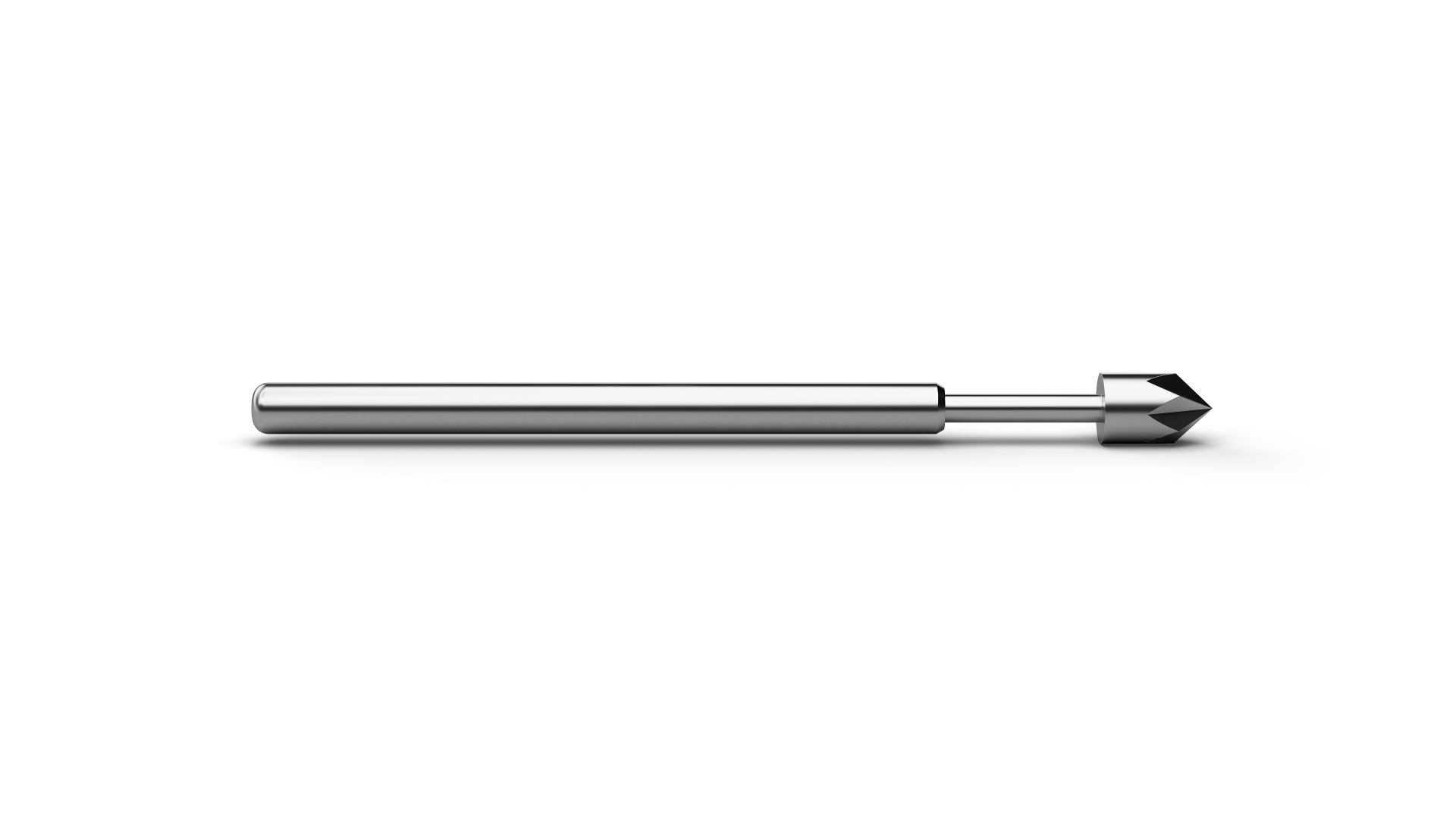

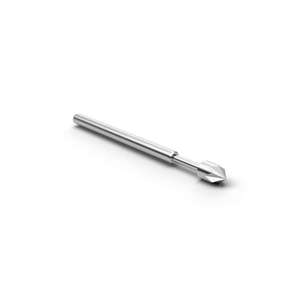

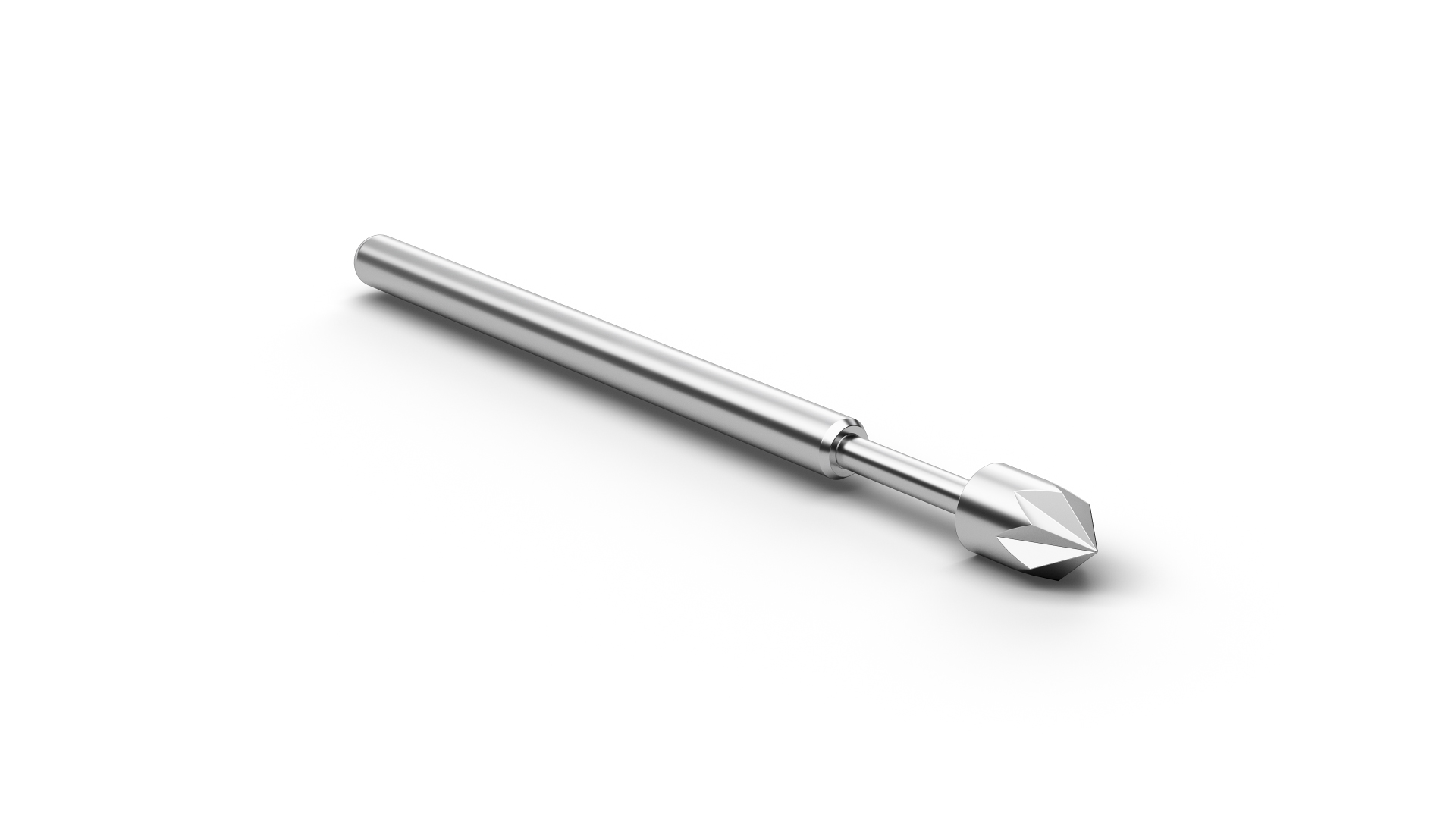

F53807S190N220 (item number 1001345) belongs to the Interface Solutions range for ICT and Functional Test setups. F53807S190N220 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. F53807S190N220 combines a pitch of 2.54 mm / 100 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 1.9 mm. For F53807S190N220, spring force is 220 cN at a nominal travel of 2.7 mm. For F53807S190N220, the specified continuous current is 5 A.
