Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F732 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |
| Additional definition | H |
| Dimensions | |
|---|---|
| Total length (mm) | 35.7 |
| Protrusion height (mm) | 10.3 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 2.3 |
| Press ring diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 100 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |

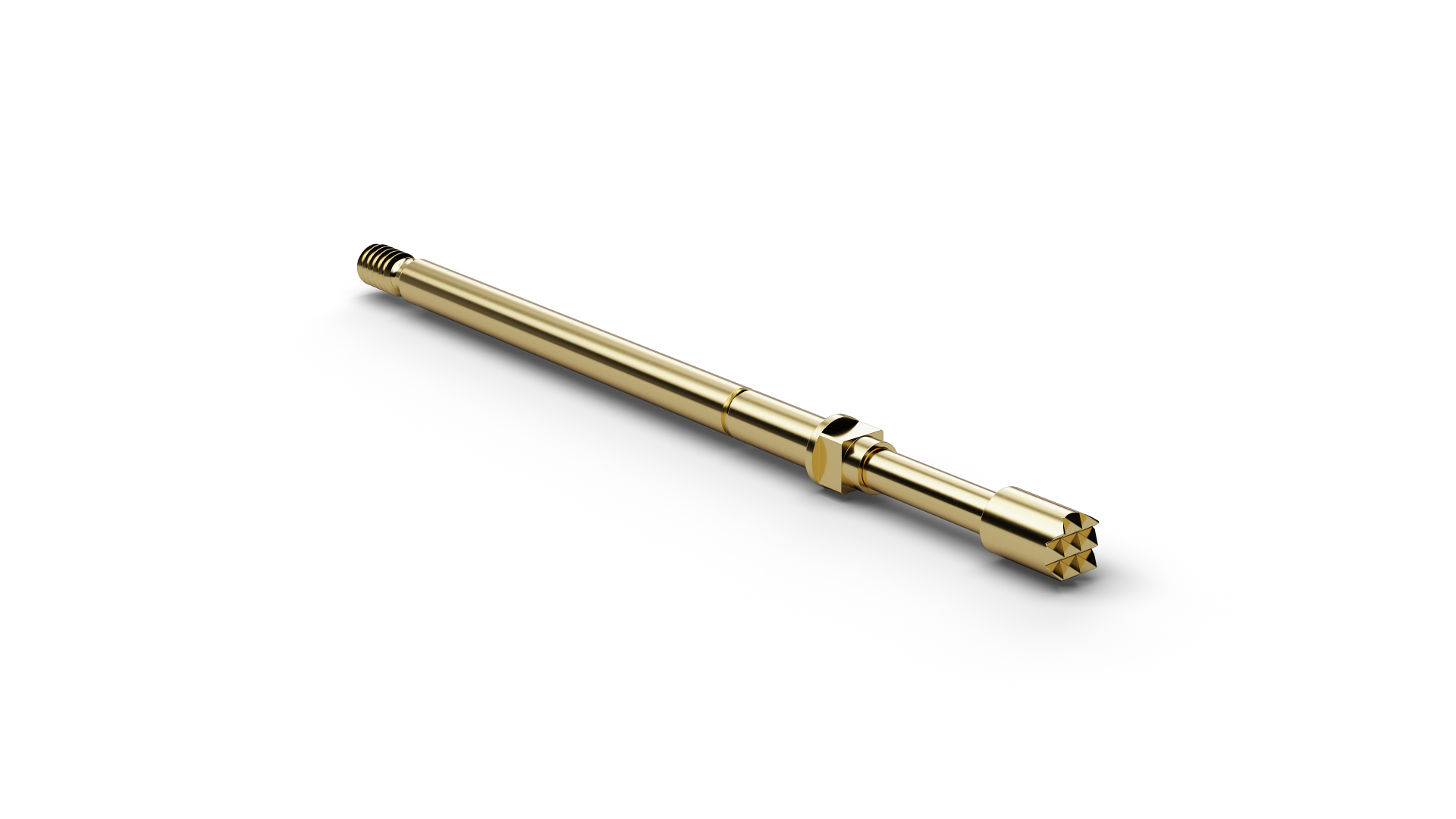

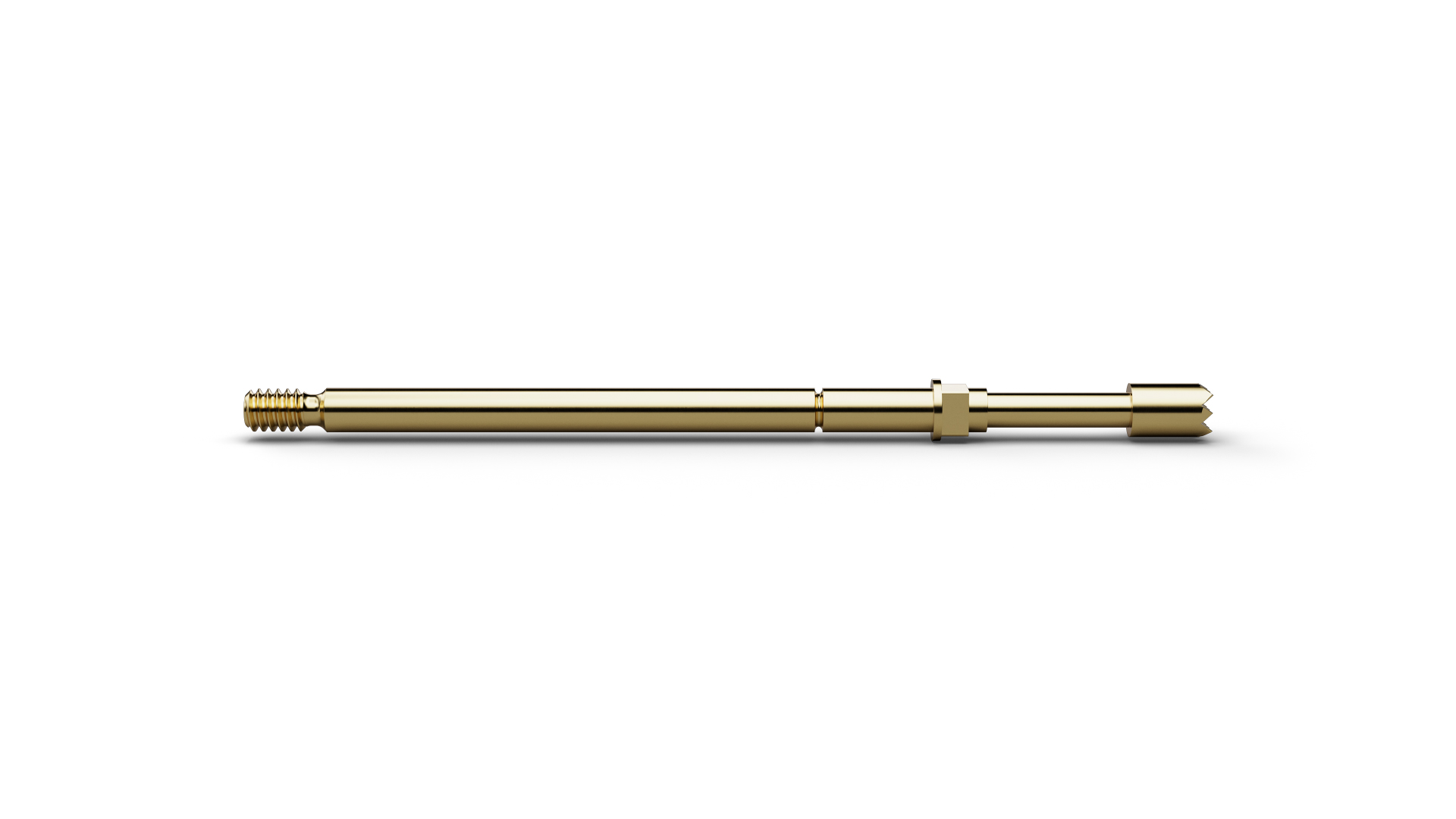

Graphics
Beschreibung des Produkts
F73206B200G300H (item number 1001445) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F73206B200G300H supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73206B200G300H is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73206B200G300H uses an M1.6 thread. On F73206B200G300H, a pitch of 2.54 mm / 100 mil is combined with 300 cN spring force and 4 mm nominal travel. F73206B200G300H is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. In this H configuration, F73206B200G300H is part of the high-temperature range and can be used in applications up to 200 °C.
