Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P / P137-L095 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 9.5 |
| Protrusion height (mm) | 2.4 |
| Tip style diameter (mm) | 1.05 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 85 |
| Nominal travel (mm) | 0.8 |
| Maximum travel (mm) | 1.2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 8 |
| Typical contact resistance (mOhm) | 20 |

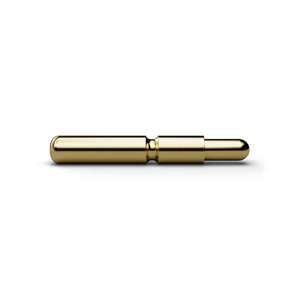

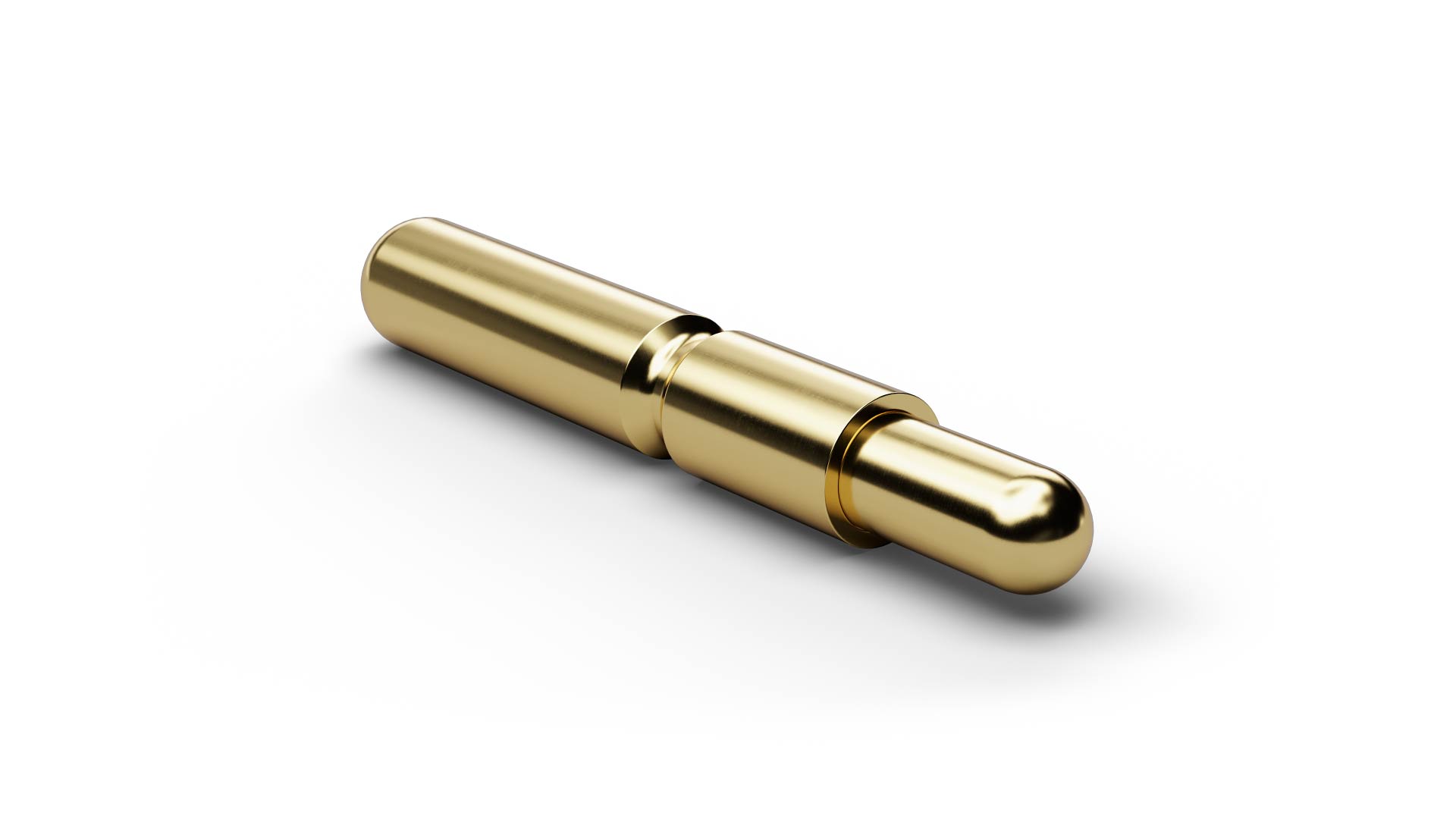

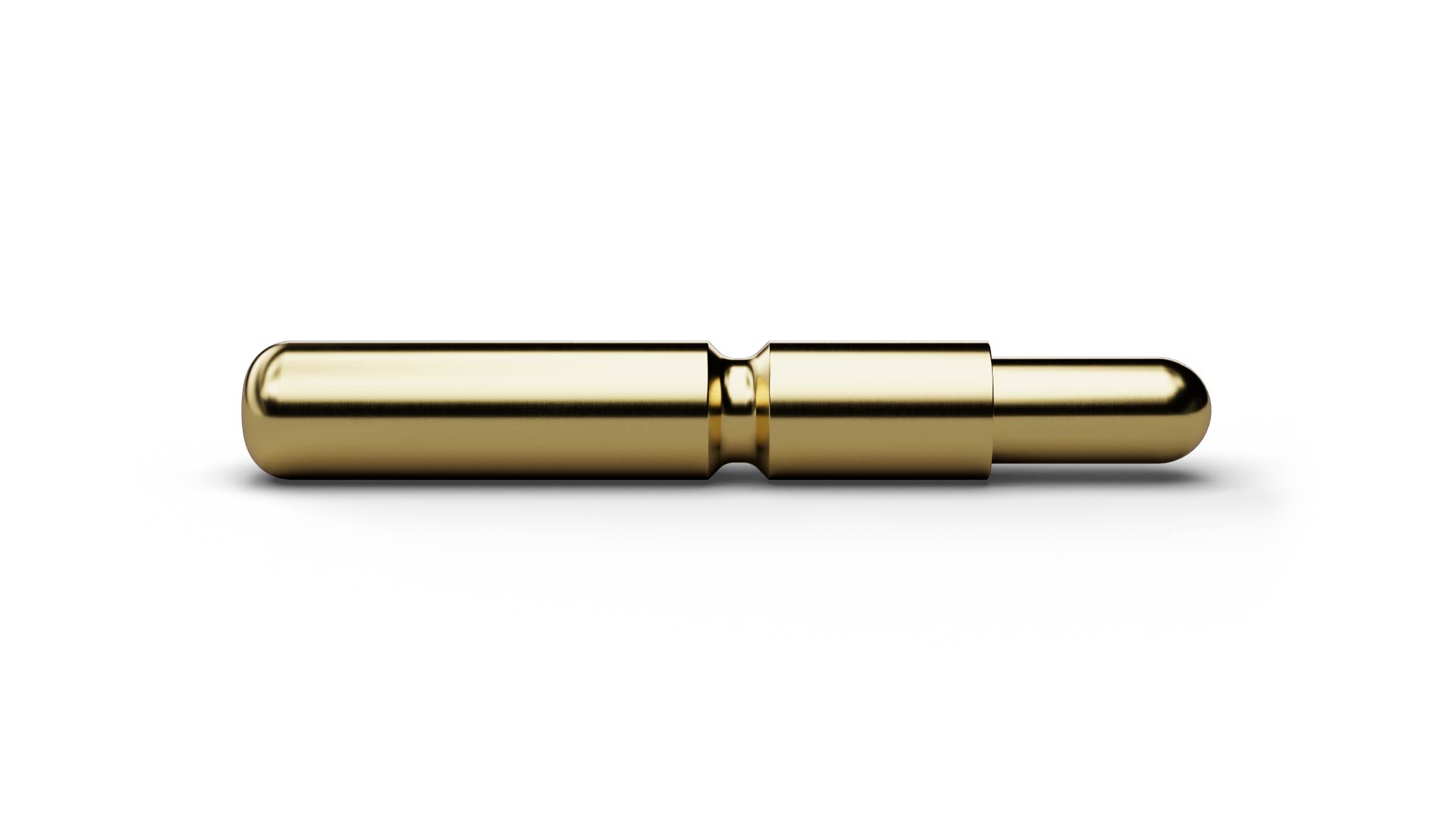

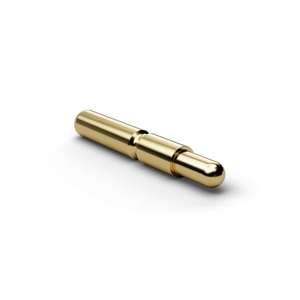

Graphics
