Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F786 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 38 |
| Protrusion height (mm) | 16 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 1.66 |
| Collar diameter (mm) | 2.04 |
| Press ring diameter (mm) | 2.04 |
| Materials and surfaces | |
|---|---|
| Tip style | 04 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 6.4 |
| Maximum travel (mm) | 8 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |
Graphics
Beschreibung des Produkts

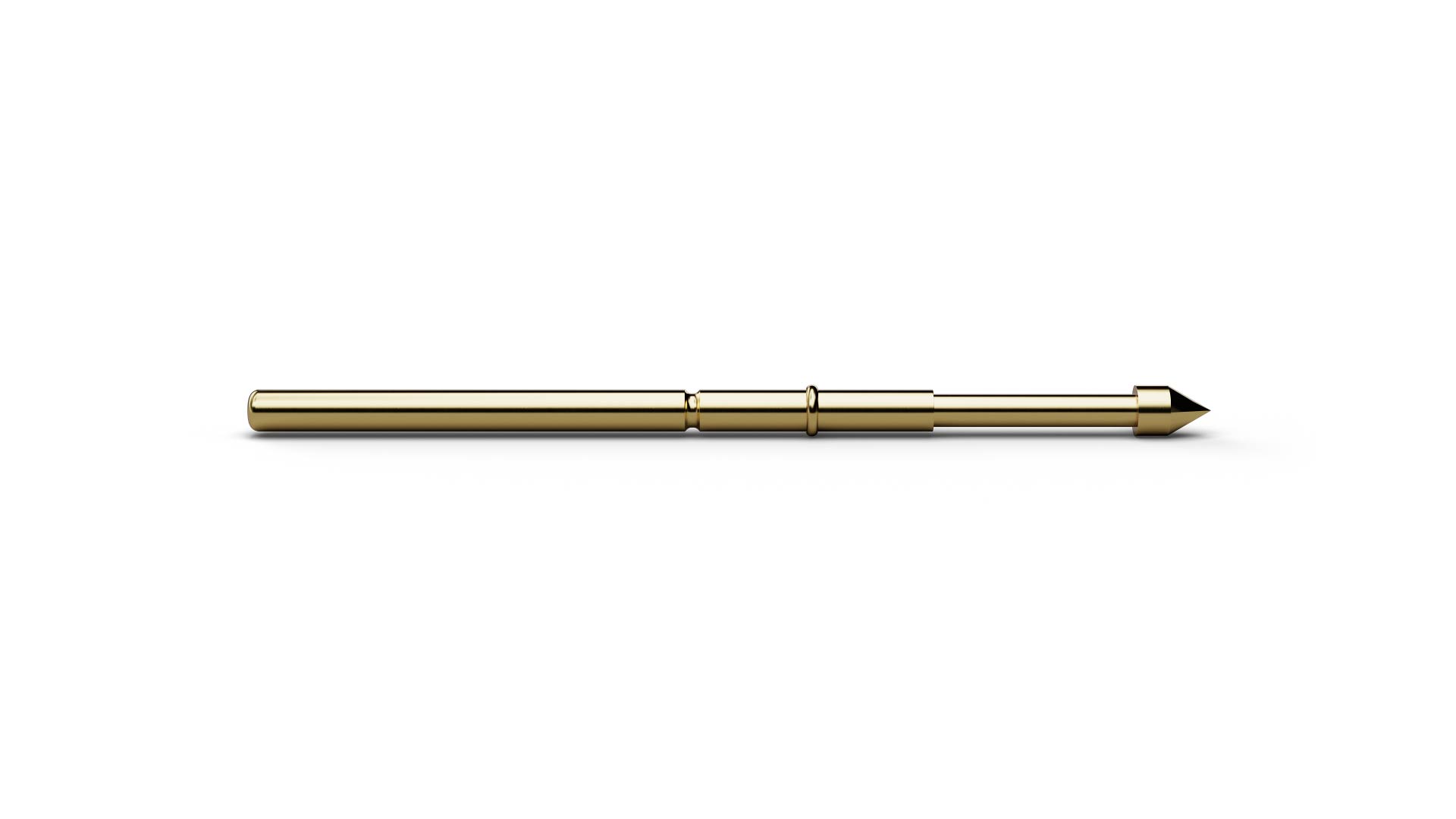

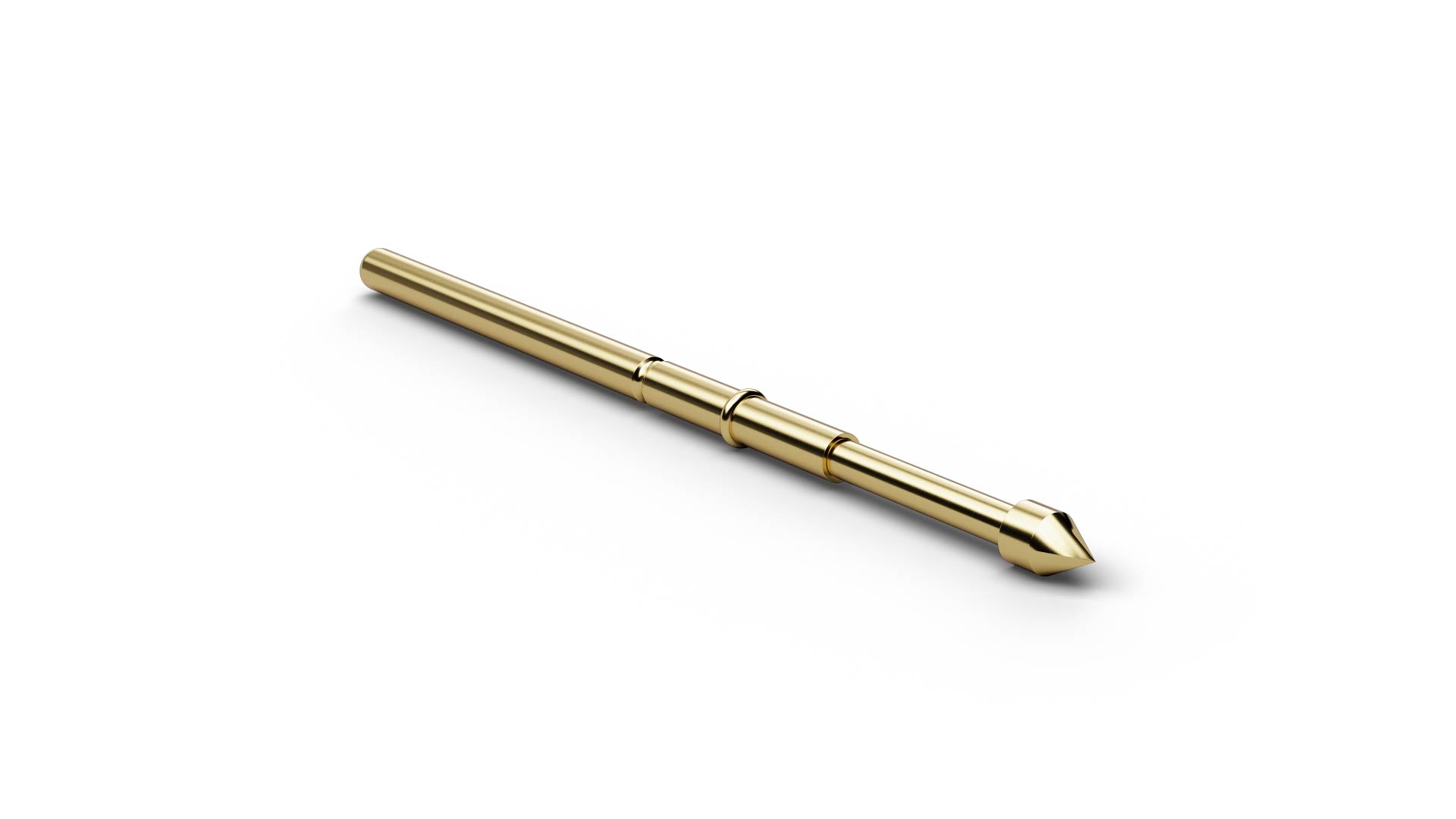

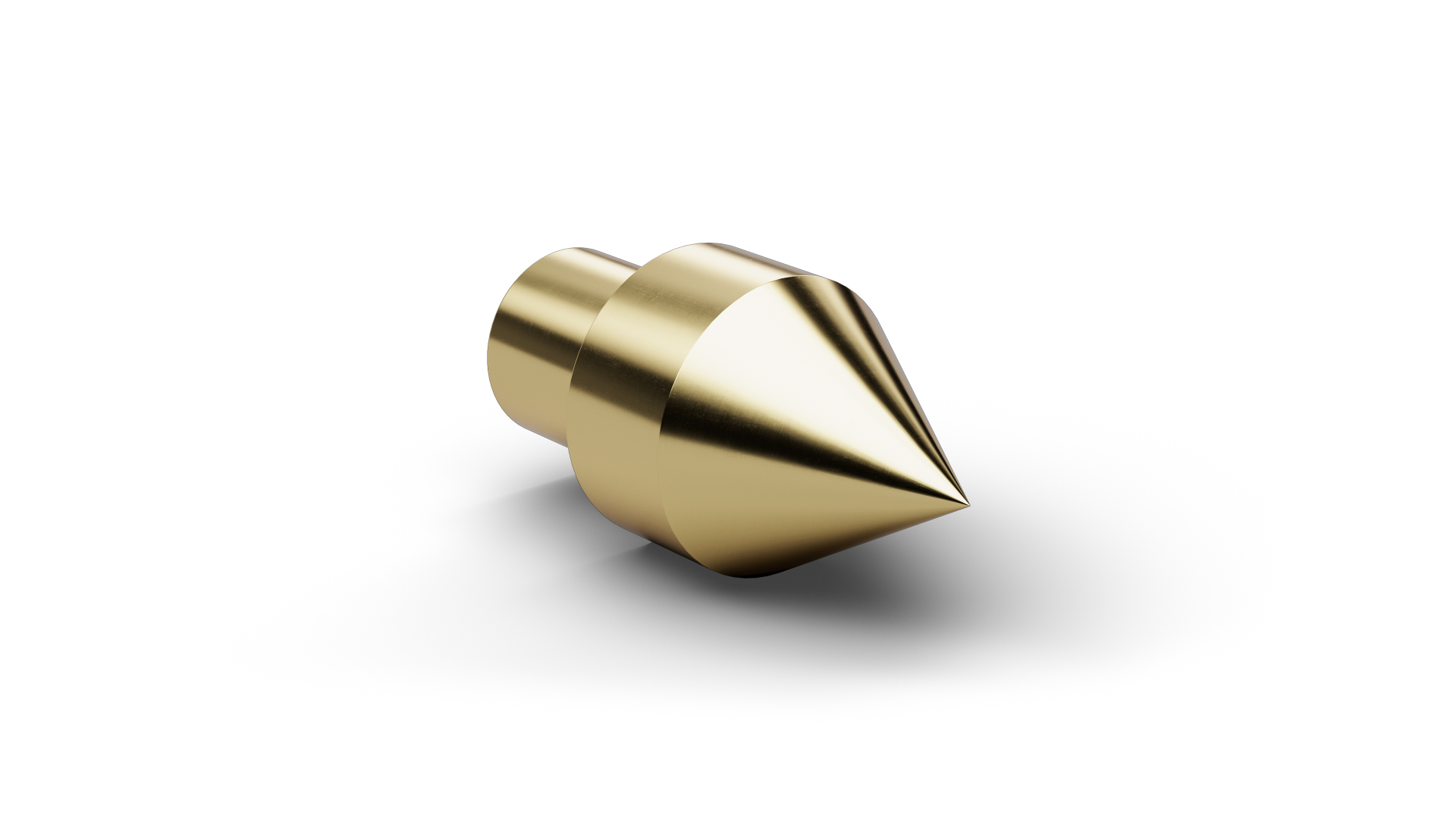

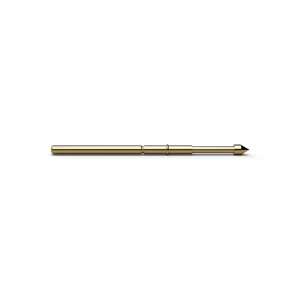

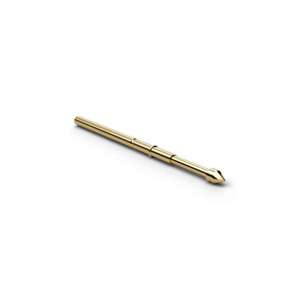

F78604B200G150 (item number 1001538) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. F78604B200G150 belongs to the basic probe range for ICT/FCT, where tip geometry, spring force and surface finish are matched to the target test point. The design combines a pitch of 2.54 mm / 100 mil with tip style 04 (Conical 60° stepped) and a tip diameter of 2 mm. F78604B200G150 operates with 150 cN spring force and 6.4 mm nominal travel. F78604B200G150 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F78604B200G150 is made of beryllium copper and is gold-plated.
