Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F788 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 43 |
| Protrusion height (mm) | 12 |
| Tip style diameter (mm) | 0.6 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 33 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 165 |
| Nominal travel (mm) | 6.4 |
| Maximum travel (mm) | 7 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 2 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

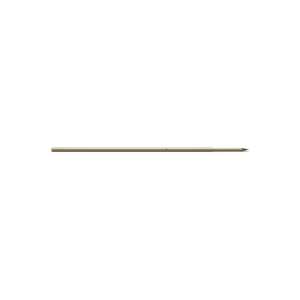

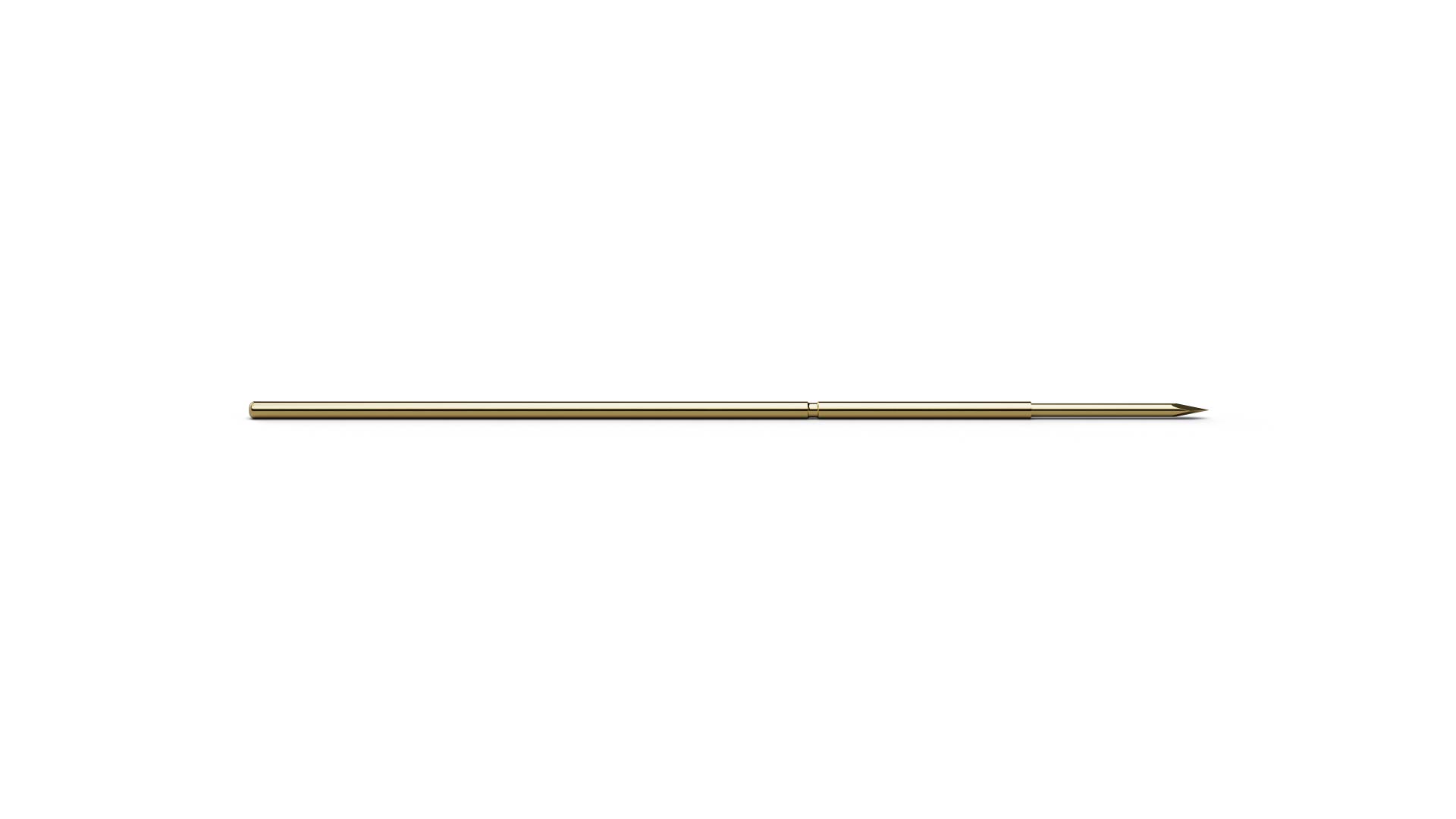

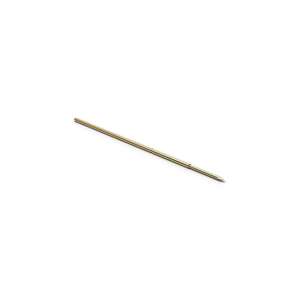

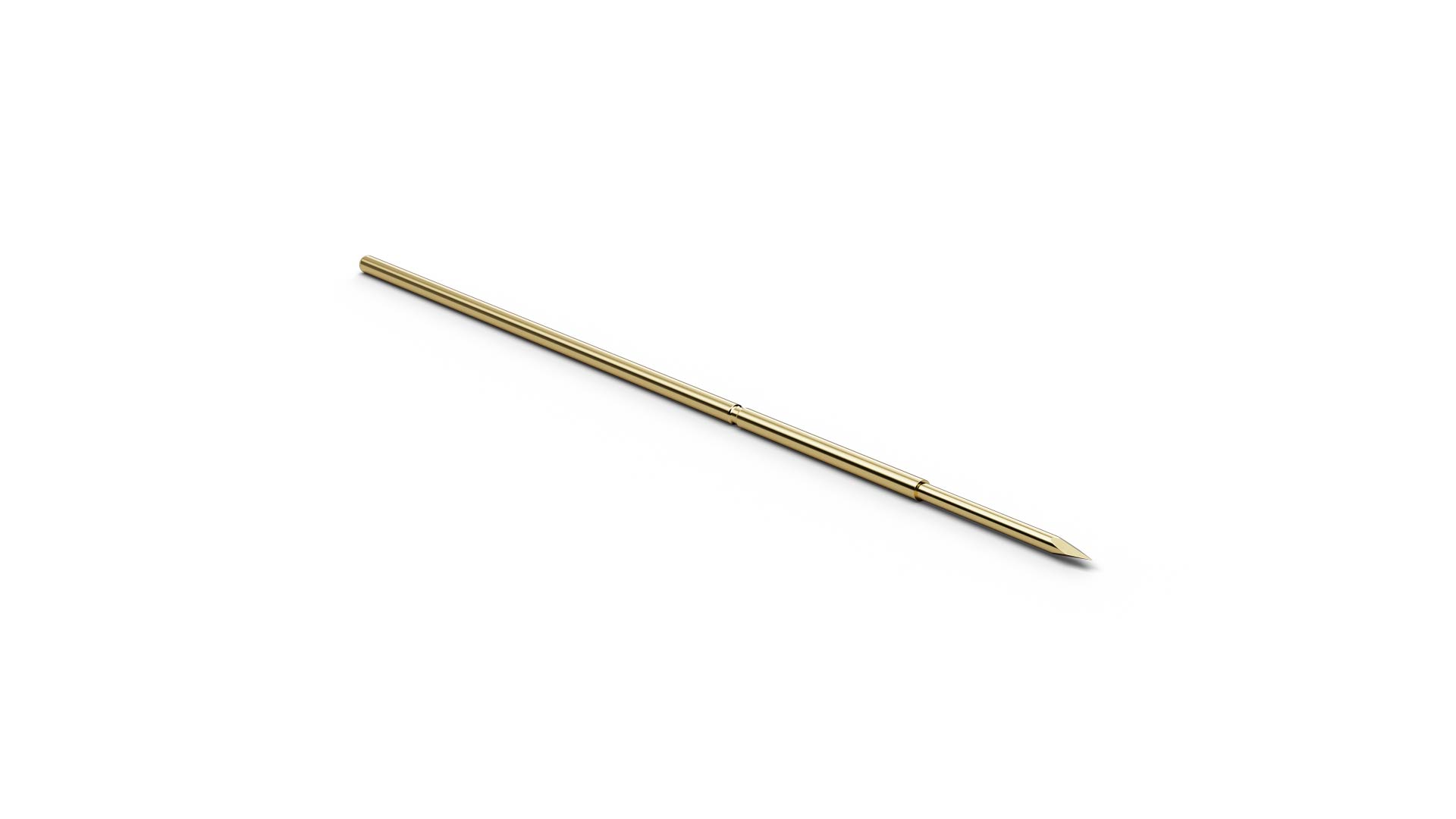

F78833S060L165 (item number 1001551) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F78833S060L165 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F78833S060L165 combines a pitch of 1.27 mm / 50 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.6 mm. For F78833S060L165, spring force is 165 cN at a nominal travel of 6.4 mm. The electrical rating of F78833S060L165 combines 2 A continuous current with 20 mΩ typical contact resistance. The plunger in F78833S060L165 is made of steel and uses Longtime Gold plating.
