Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F772 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 32 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 1.66 |
| Collar diameter (mm) | 2.04 |
| Press ring diameter (mm) | 2.04 |
| Materials and surfaces | |
|---|---|
| Tip style | 28 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |
Graphics
Beschreibung des Produkts

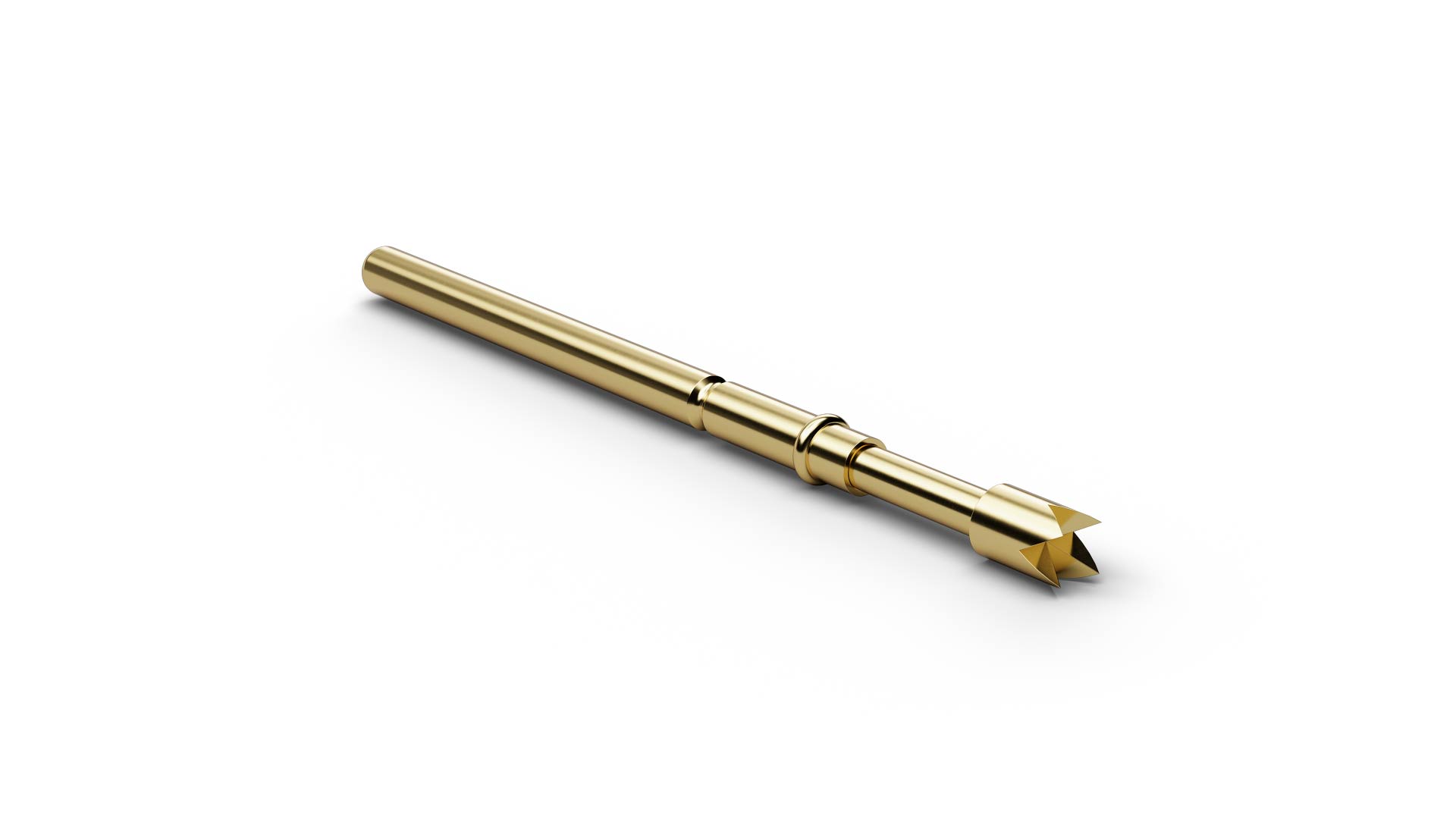

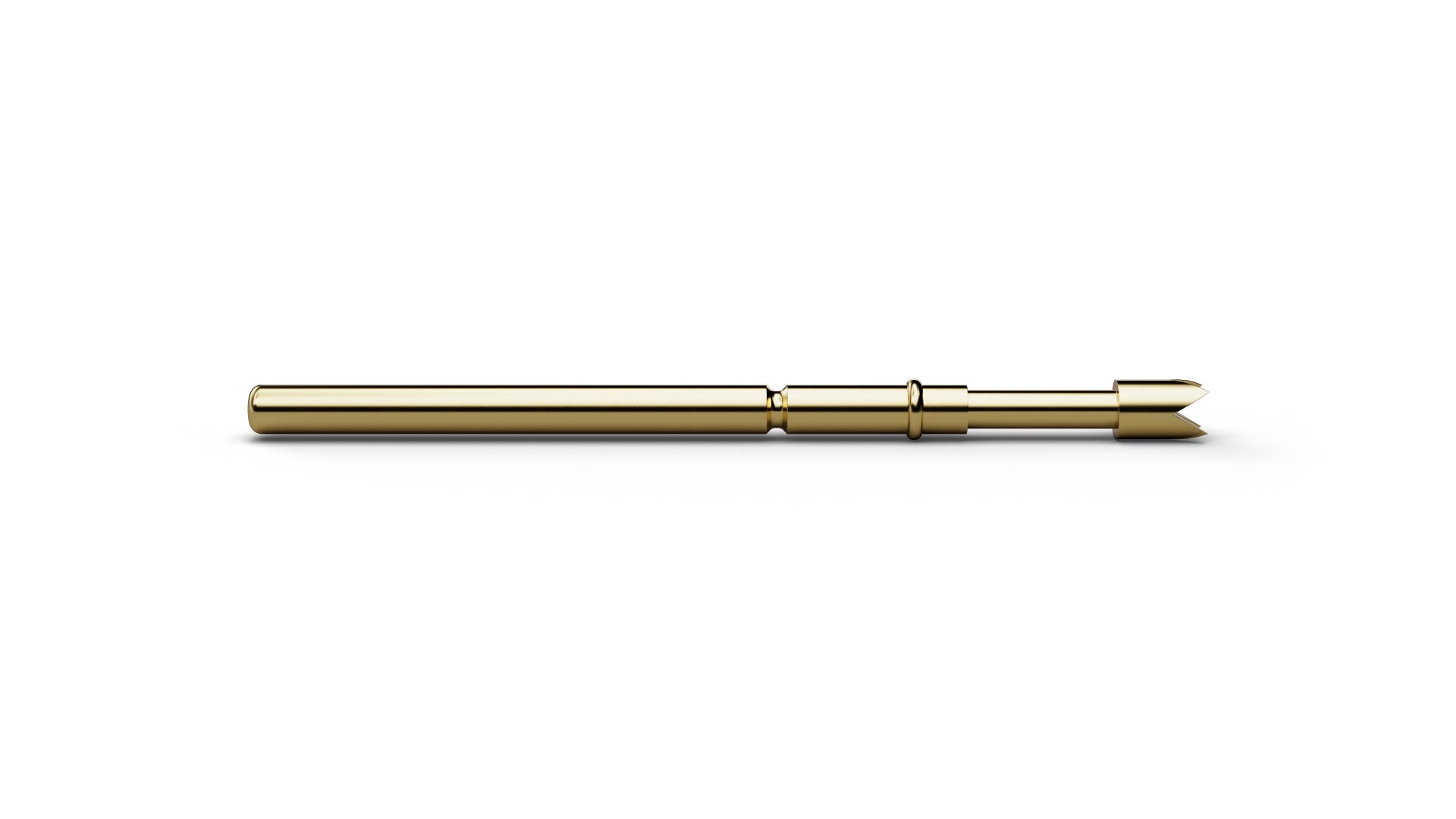

The Basic Contact Probe F77228B200G150 (item number 1001570) is a spring-loaded probe for temporary electrical contact with test points. With tip style 28 (4-point crown stepped), F77228B200G150 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F77228B200G150 combines a pitch of 2.54 mm / 100 mil with tip style 28 (4-point crown stepped) and a tip diameter of 2 mm. For F77228B200G150, spring force is 150 cN at a nominal travel of 4 mm. F77228B200G150 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F77228B200G150 is made of beryllium copper and is gold-plated.
