Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F773 |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 27 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3 |
| Press ring diameter (mm) | 3 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 100 |
| Spring force (cN) | 400 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 25 |
Graphics
Beschreibung des Produkts

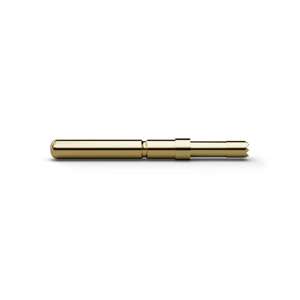

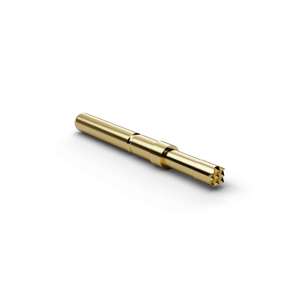

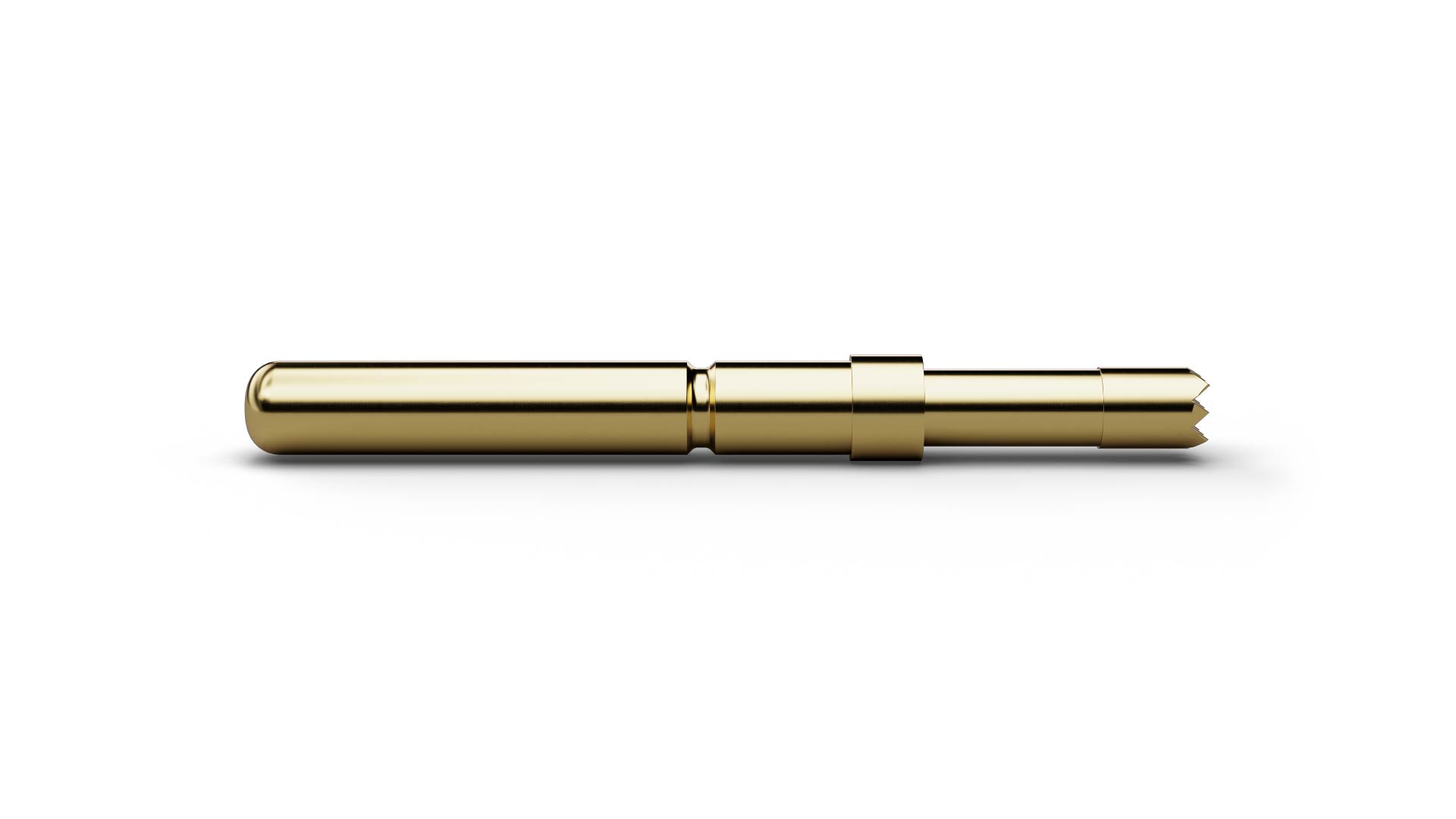

The Basic Contact Probe F77306B230G400 (item number 1001580) is a spring-loaded probe for temporary electrical contact with test points. With tip style 06 (Serrated stepped), F77306B230G400 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F77306B230G400 combines a pitch of 3.5 mm / 138 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.3 mm. F77306B230G400 operates with 400 cN spring force and 4 mm nominal travel. F77306B230G400 is rated for 10 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F77306B230G400 is made of beryllium copper and is gold-plated.
