Technical data
| General | |
|---|---|
| Type/family | H750 |

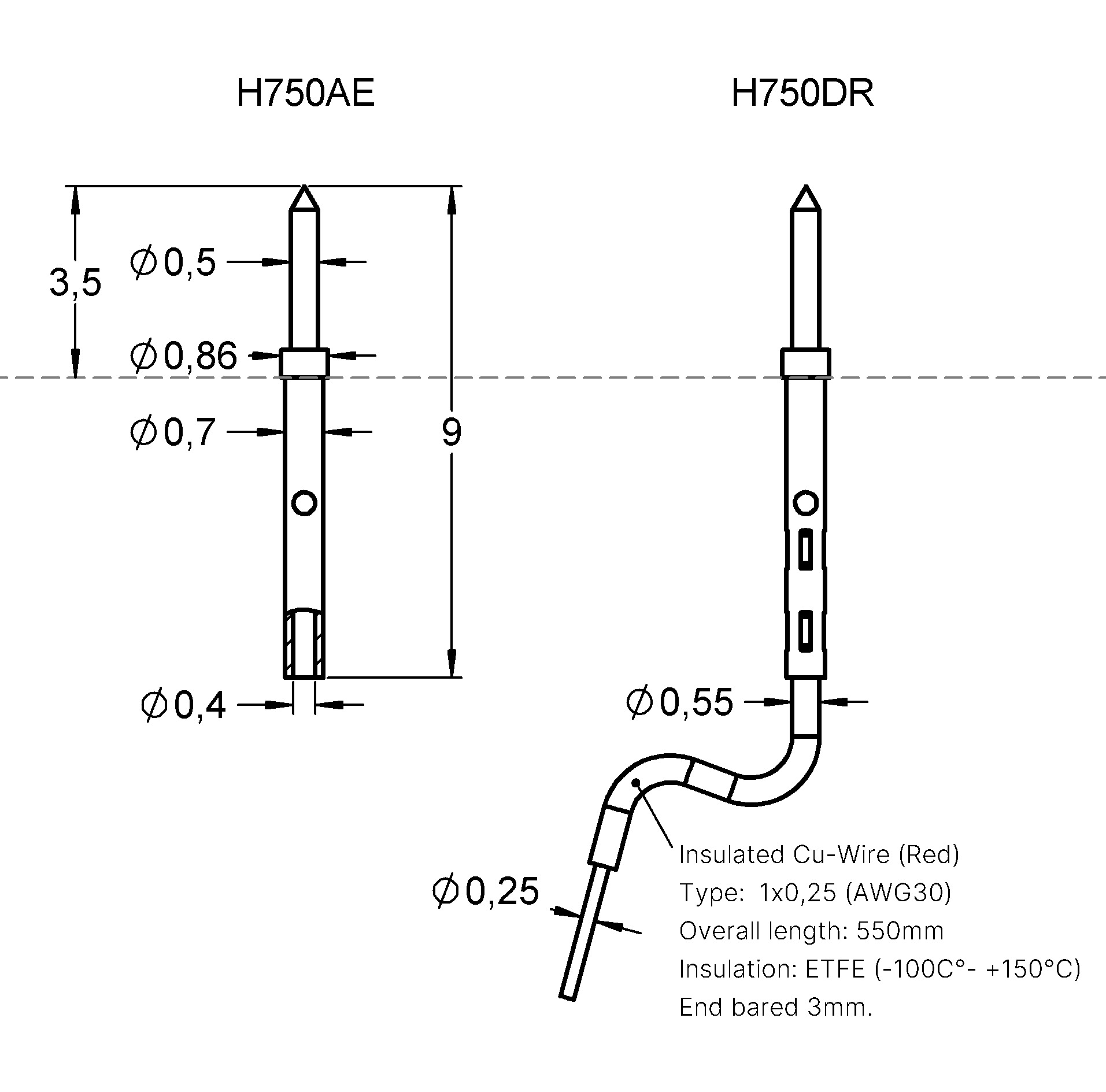

| Dimensions | |
|---|---|
| Total length (mm) | 9 |
| Press ring diameter (mm) | 0.86 |
| Outer diameter (mm) | 0.7 |
| Mechanical specifications |
|---|
Graphics
Beschreibung des Produkts

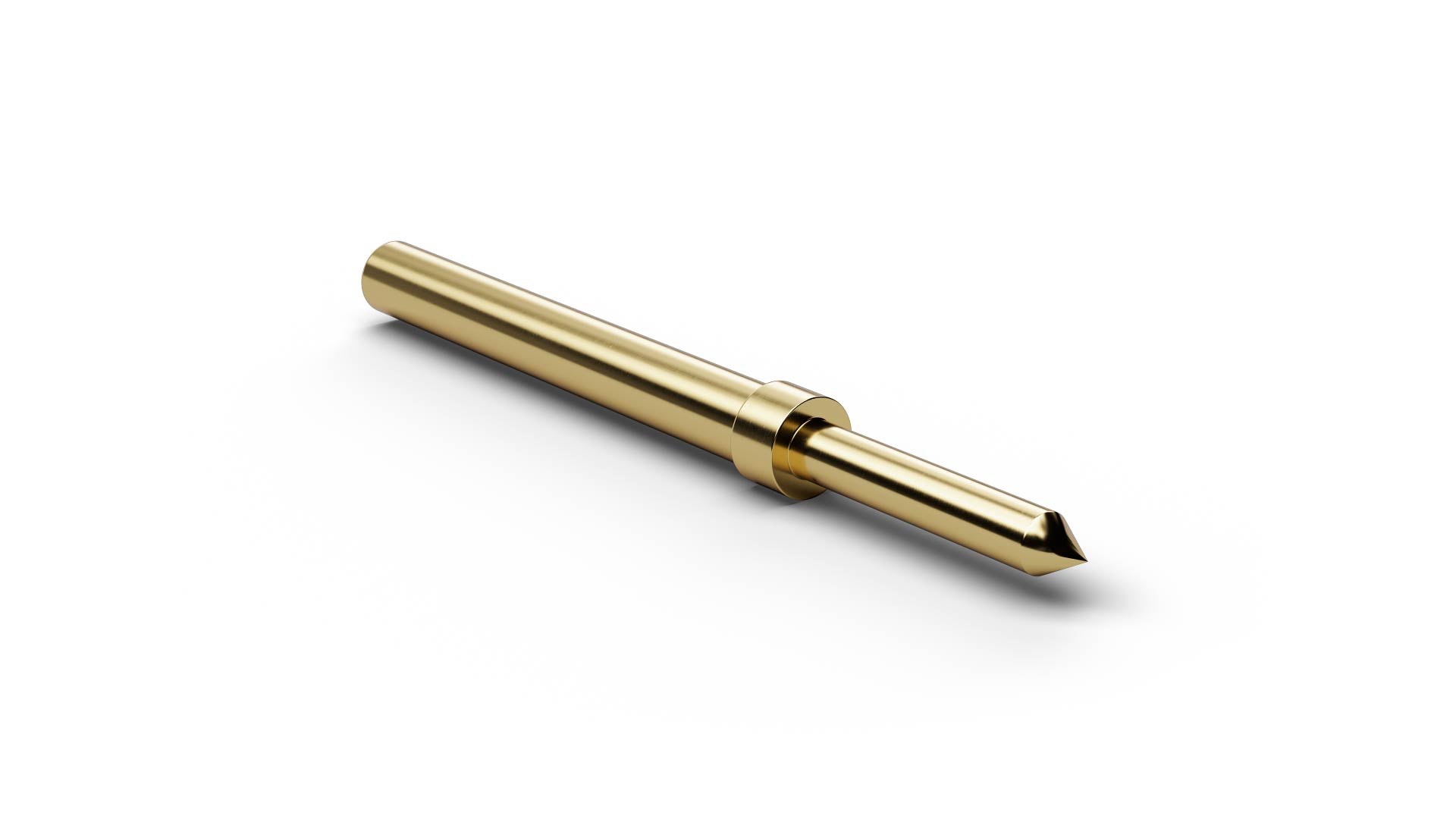

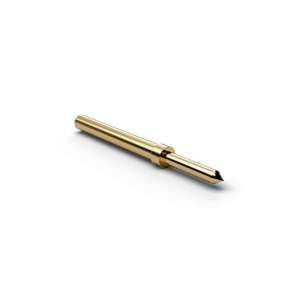

The receptacle H750AE (item number 1001693) is designed for the compatible Contact Probe in the test fixture. As a Receptacle, H750AE guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H750AE, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
