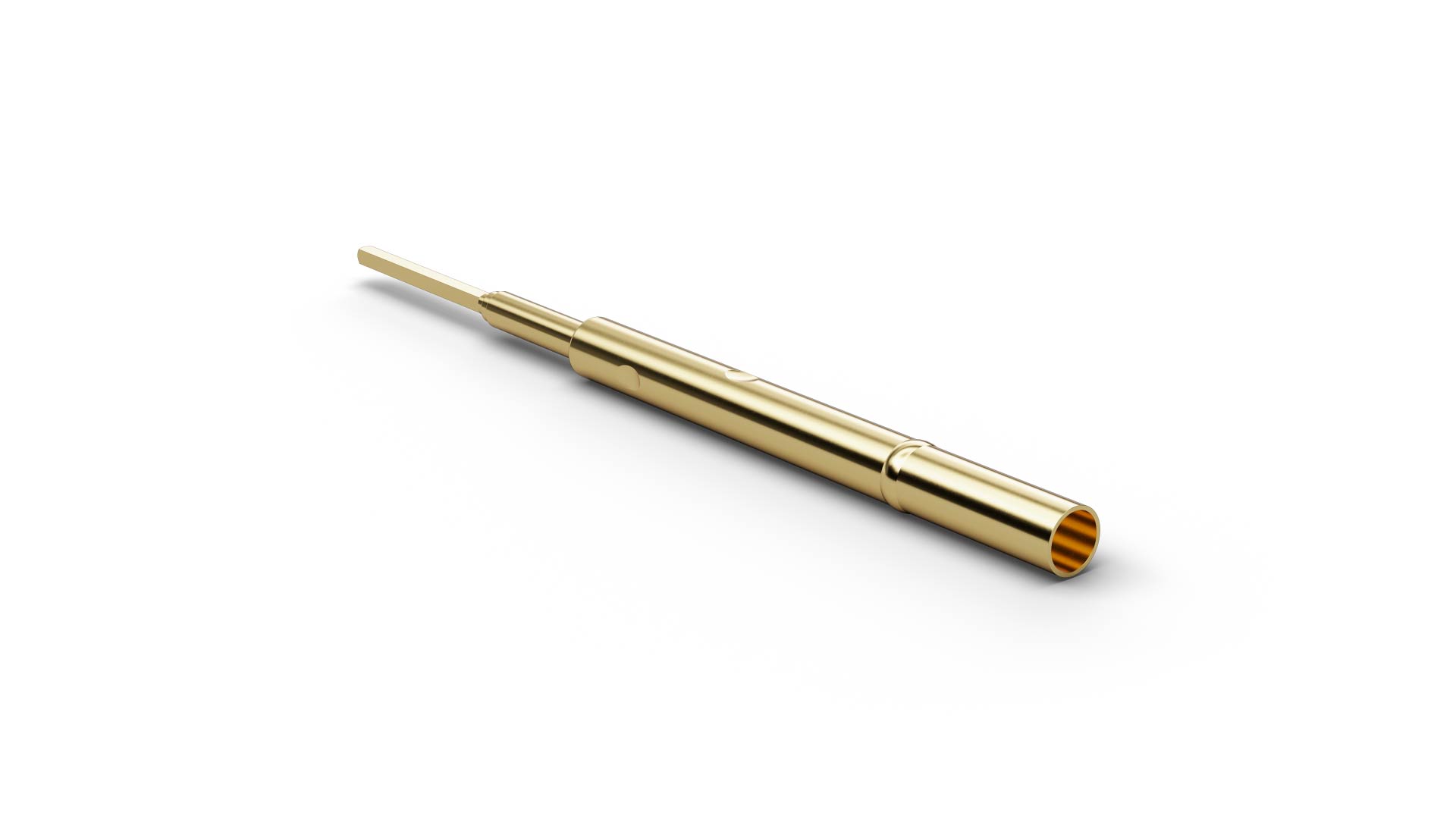

H563WW (item number 1001705) is a receptacle for the compatible Basic Contact Probe and defines its installed position in the test fixture. As a Receptacle, H563WW guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data includes pitch 3.5 mm / 138 mil, outside diameter 2.36 mm, length 40 mm, connection type wire-wrap connection. When selecting H563WW, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
