Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F731 |
| Pitch (mm/mil) | 2,40 / 94 |
| Temperature | -45°C...+100°C |
| Additional definition | L |
| Dimensions | |
|---|---|
| Total length (mm) | 32 |
| Protrusion height (mm) | 13.5 |
| Tip style diameter (mm) | 0.75 |
| Barrel diameter (mm) | 1.37 |
| Collar diameter (mm) | 1.85 |
| Press ring diameter (mm) | 1.85 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 3.5 |
| Maximum travel (mm) | 4.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,4 |
| Tool size (mm) | 1,4 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

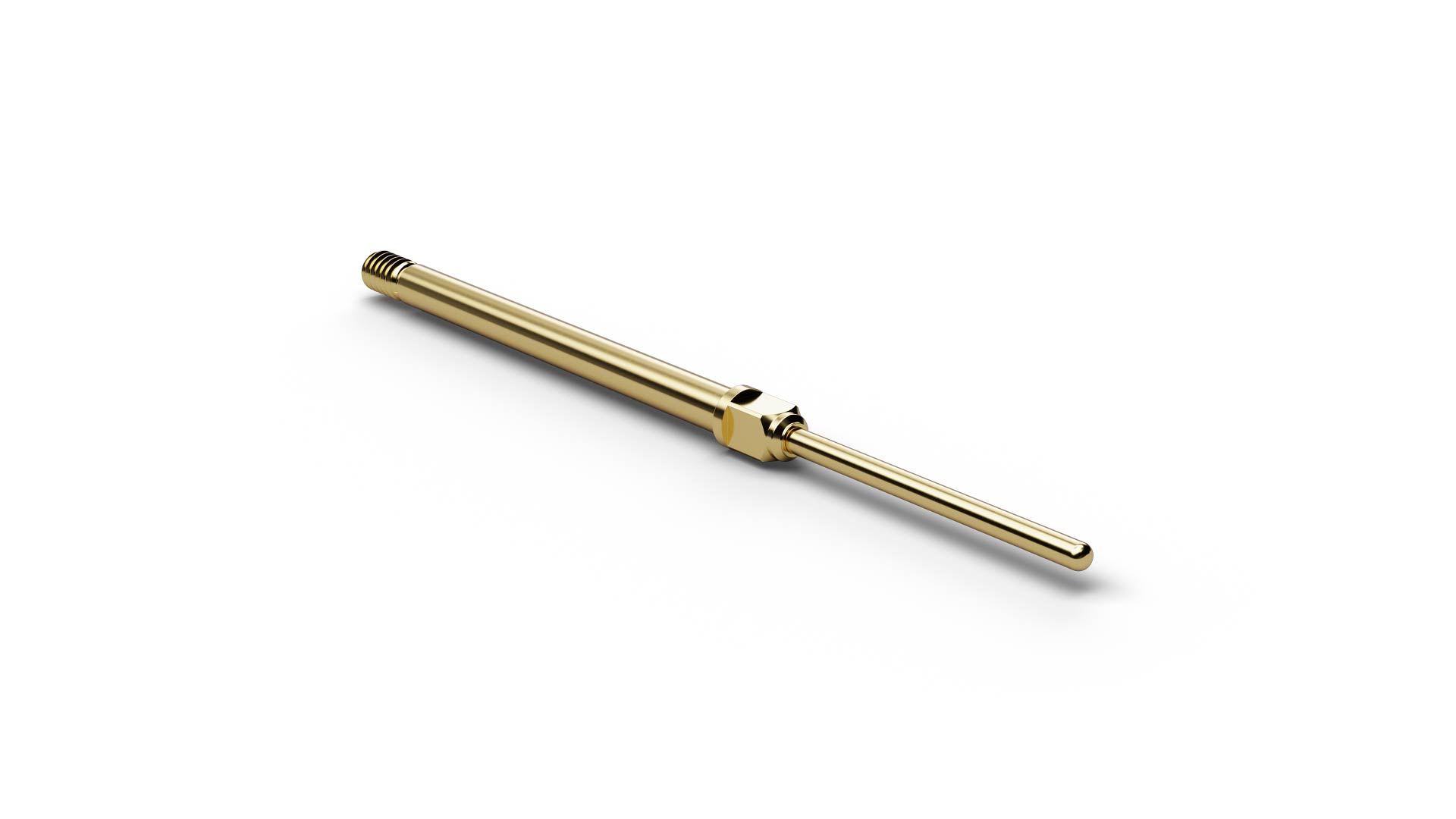

As a Basic Threaded Probe, F73111B075G300L (item number 1002940) is screwed securely into the test fixture. The threaded mounting of F73111B075G300L supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73111B075G300L is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73111B075G300L uses an M1.4 thread. On F73111B075G300L, a pitch of 2.4 mm / 94 mil is combined with 300 cN spring force and 3.5 mm nominal travel. F73111B075G300L is rated for 5 A continuous current with a typical contact resistance of 30 mΩ.
