Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HCF330 |
| Pitch (mm/mil) | 3,00 / 118 |
| Temperature | -45°C...+200°C |

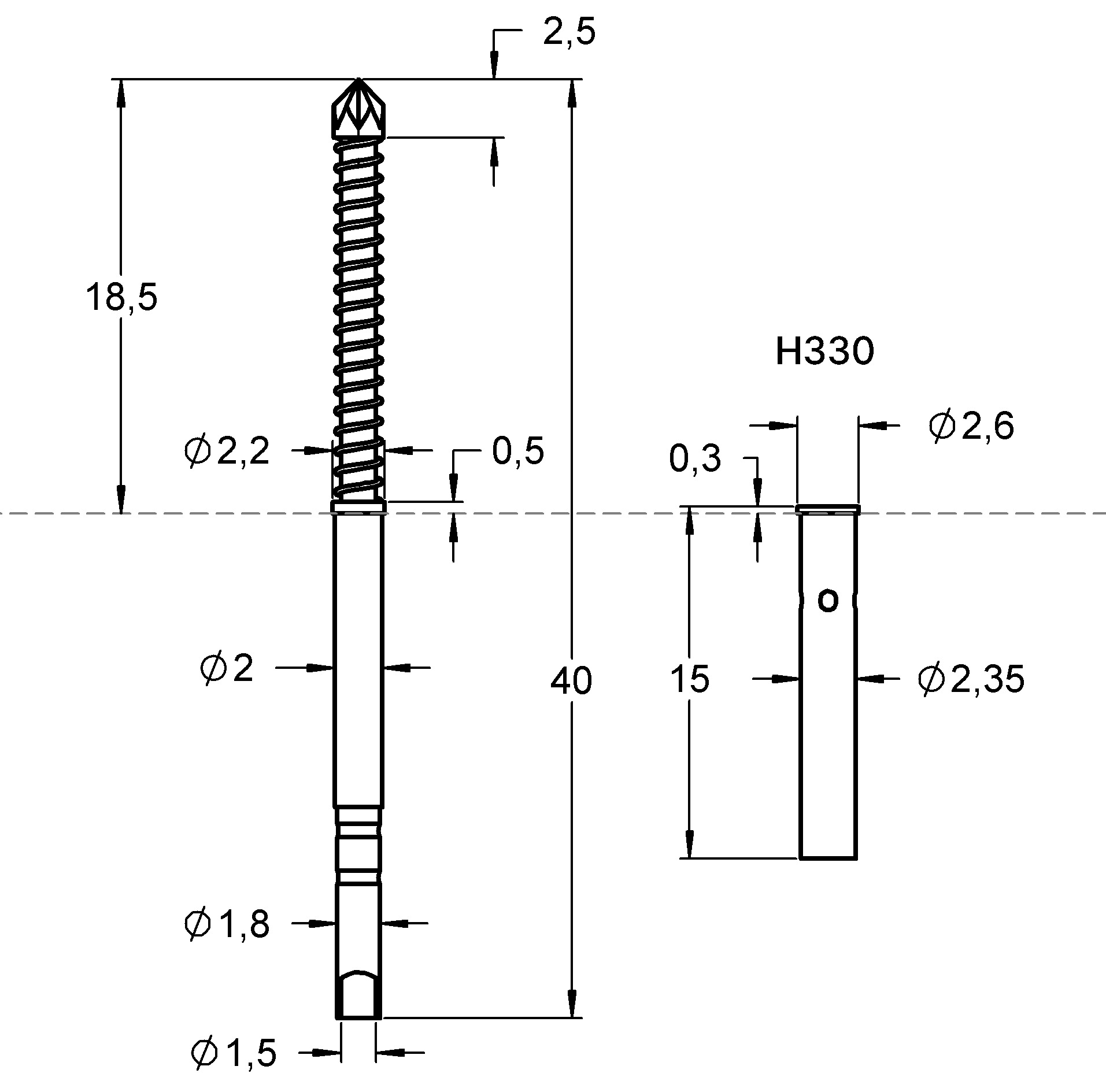

| Dimensions | |
|---|---|
| Total length (mm) | 40 |
| Protrusion height (mm) | 18.5 |
| Tip style diameter (mm) | 2.1 |
| Barrel diameter (mm) | 2 |
| Collar diameter (mm) | 2.2 |
| Press ring diameter (mm) | 2.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 07 |
| Plunger material | Steel |
| Plunger plating | Nickel |
| Barrel material | Bronze |
| Barrel plating | Uncoated |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 210 |
| Nominal travel (mm) | 5.6 |
| Maximum travel (mm) | 7 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 14 |
| Typical contact resistance (mOhm) | 15 |

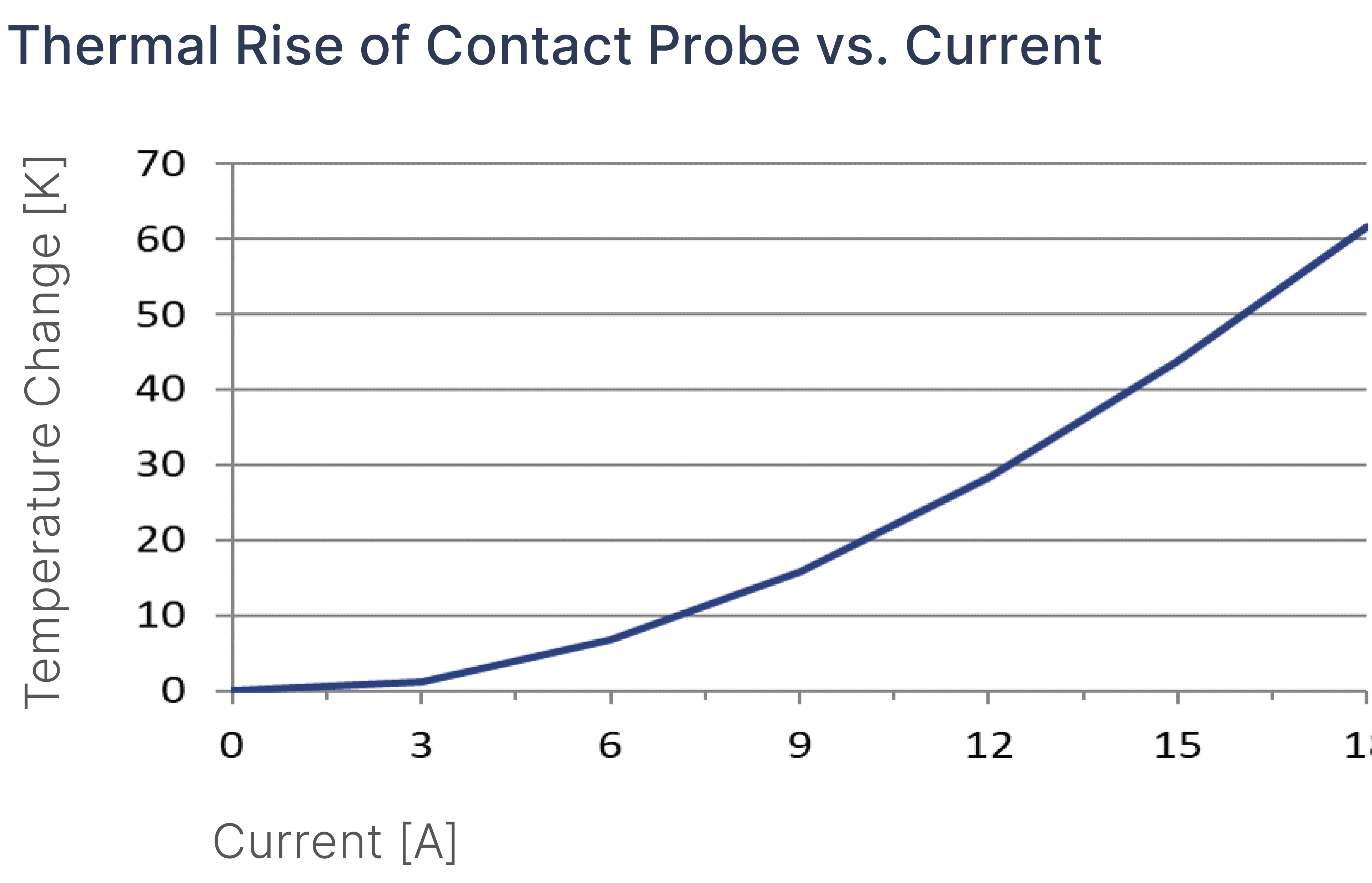

Graphics

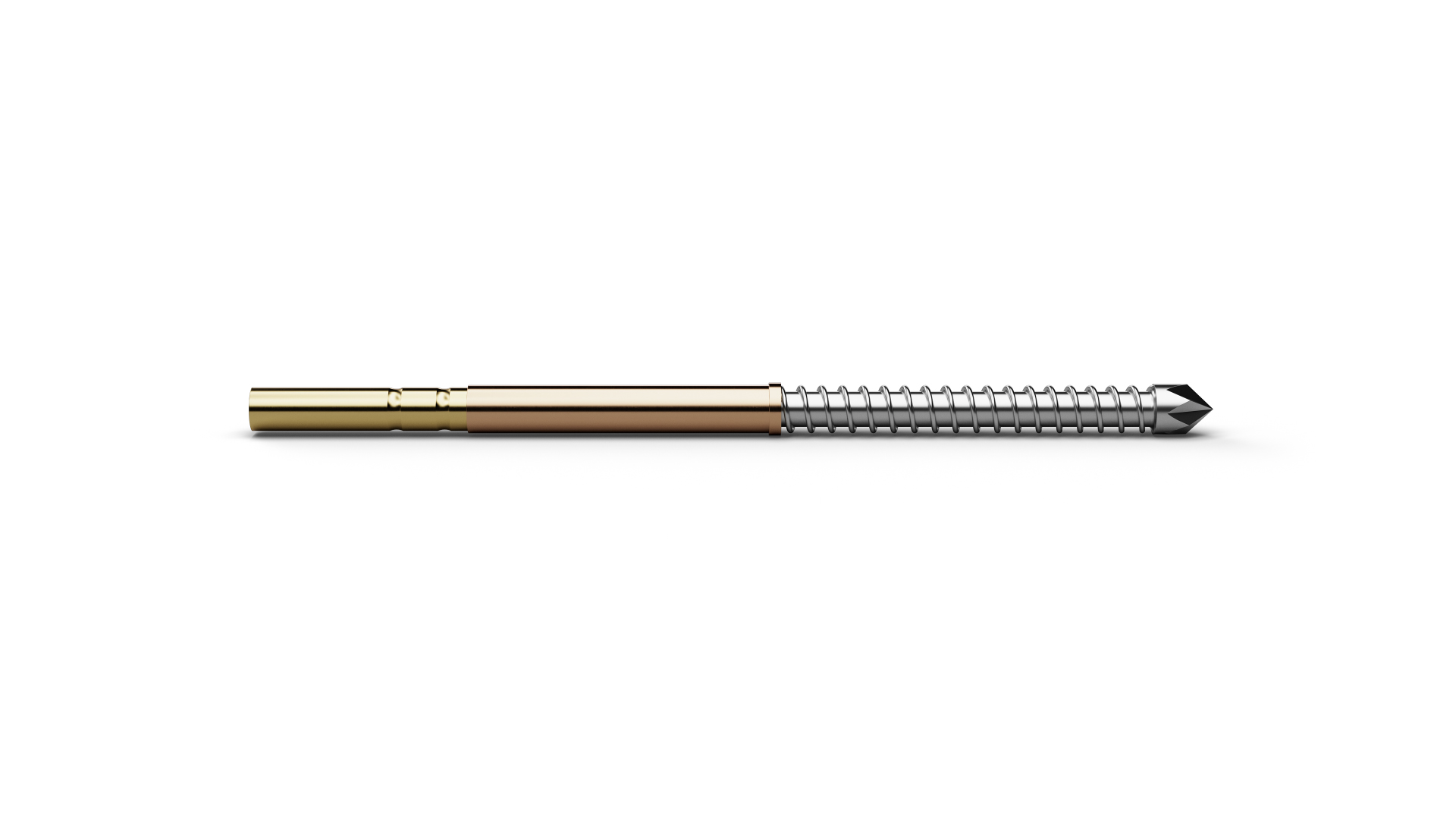

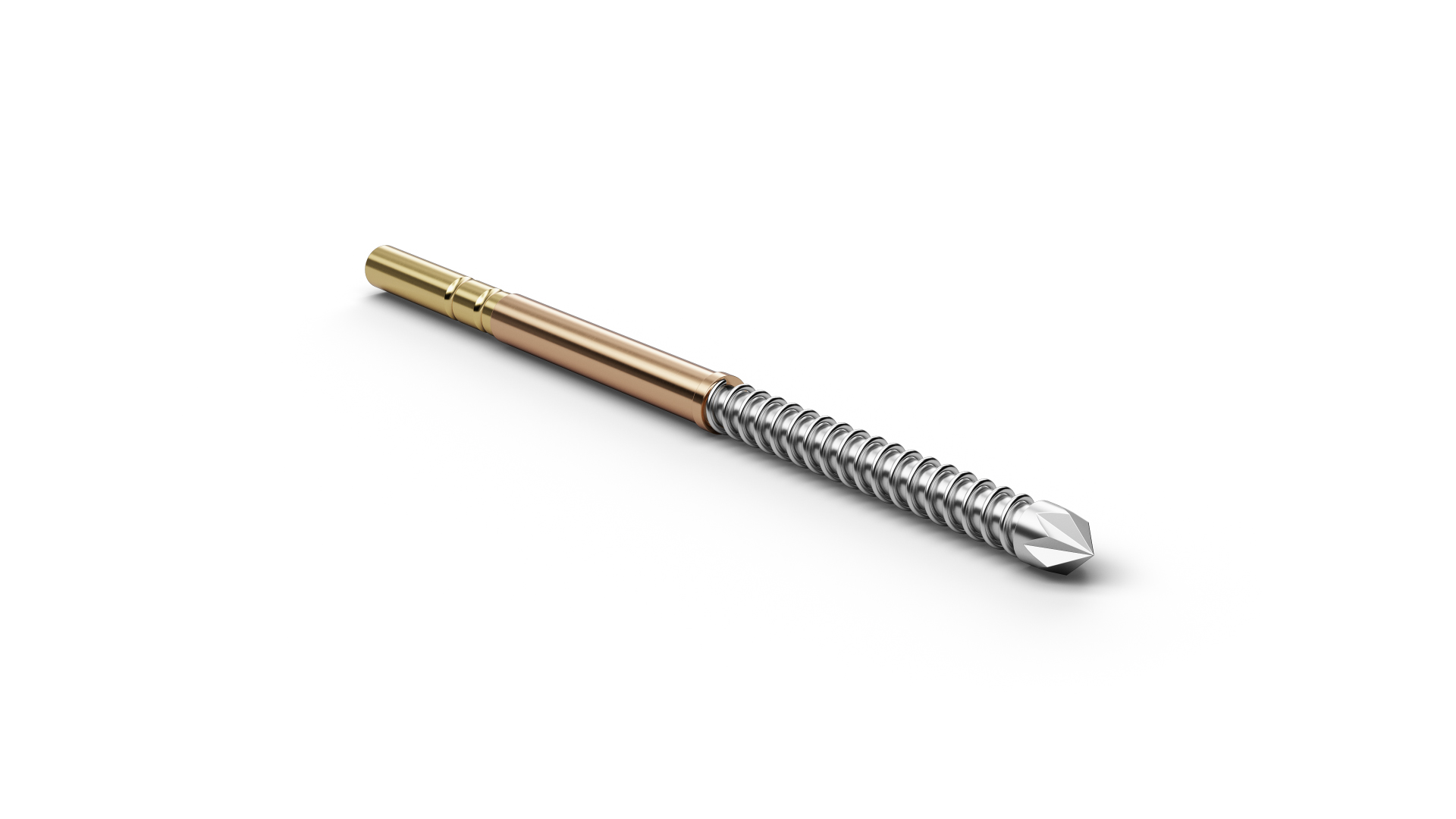

Beschreibung des Produkts
The High Current Probe HCF33007S210N210 (item number 1003518) is designed for safe transmission of high electrical currents in test and contacting applications. HCF33007S210N210 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF33007S210N210, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF33007S210N210 includes power-electronics testing. The electrical rating of HCF33007S210N210 combines 14 A continuous current with 15 mΩ typical contact resistance. For HCF33007S210N210, spring force is 210 cN at a nominal travel of 5.6 mm.
