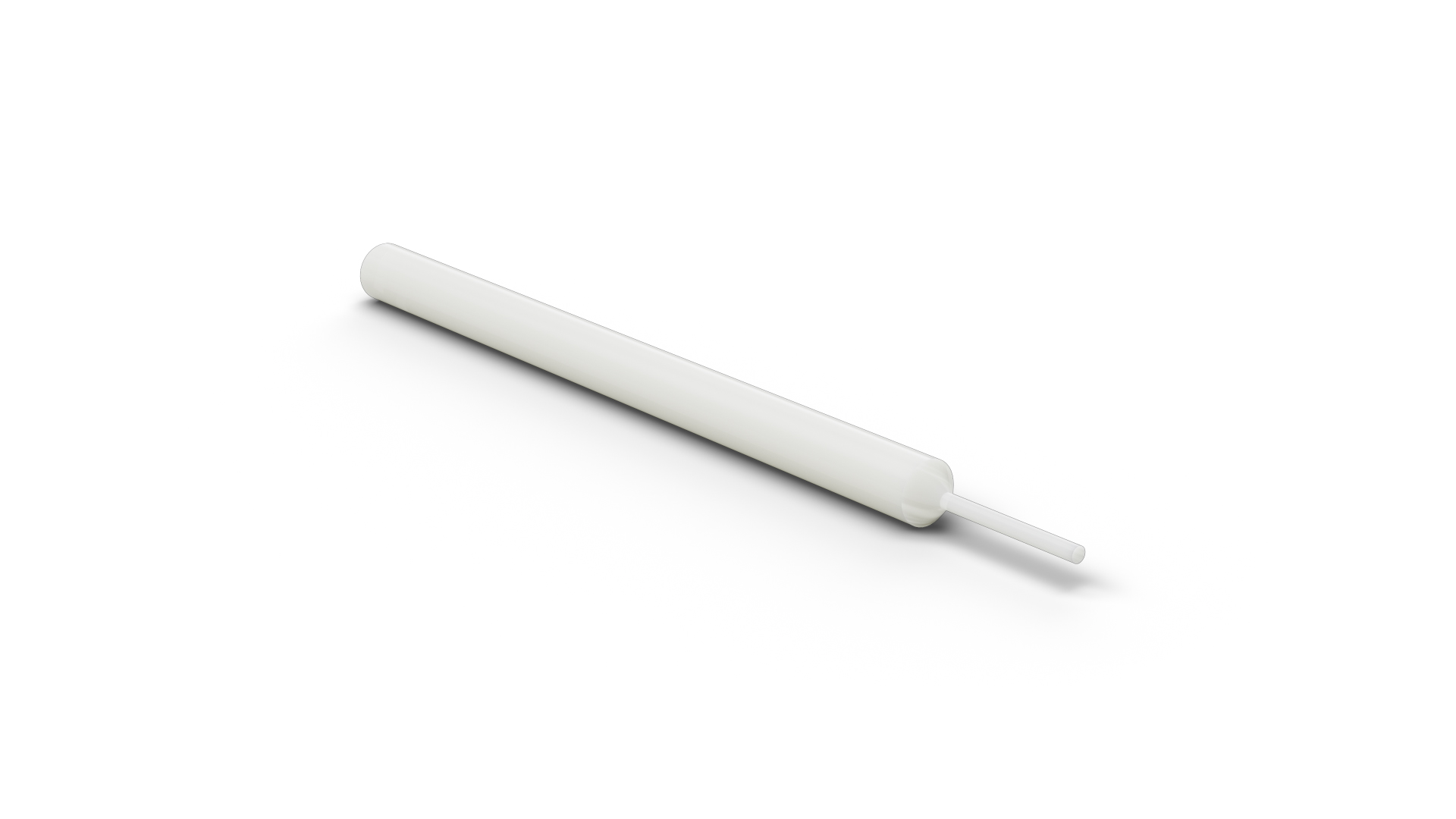

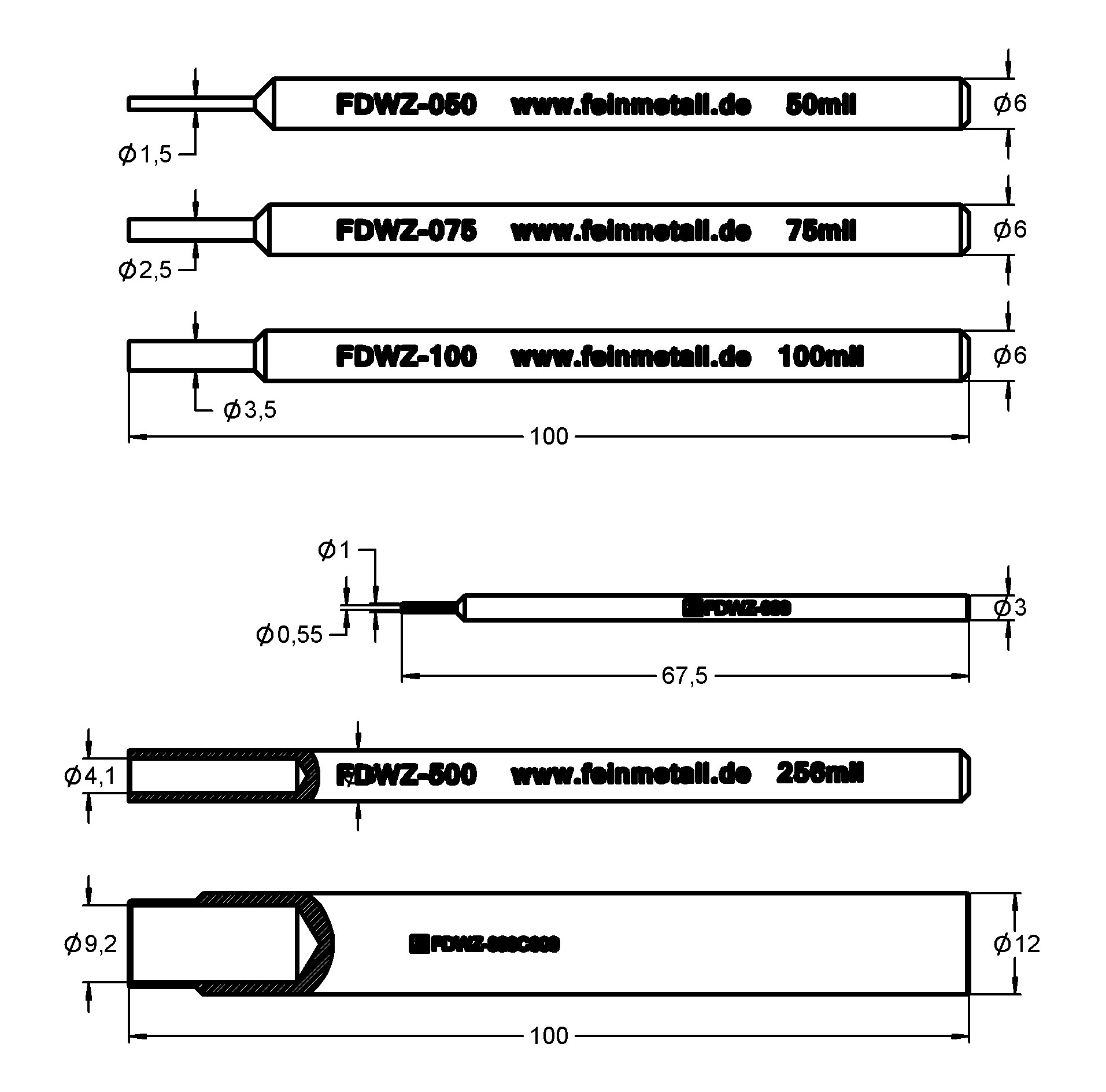

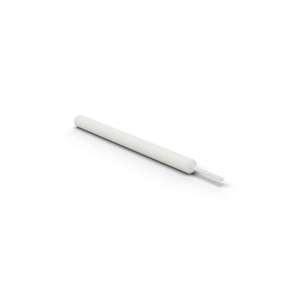

FDWZ-050 (item number 1003576) is an assembly tool for Contact Probes and Receptacles or related test components. FDWZ-050 is matched to installation or maintenance of the corresponding probes and receptacles and supports controlled handling of the contacting components. FDWZ-050 supports precise assembly, adjustment or maintenance of the associated contacting components. For handling, the relevant data includes tool type FDWZ-050, tool interface Steckschlüssel, length 100 mm, outside diameter 6 mm, pitch reference 1.27 mm / 50 mil. The geometry of FDWZ-050 is matched to controlled assembly and helps reduce the risk of damage to the Contact Probe, Receptacle or test fixture.
