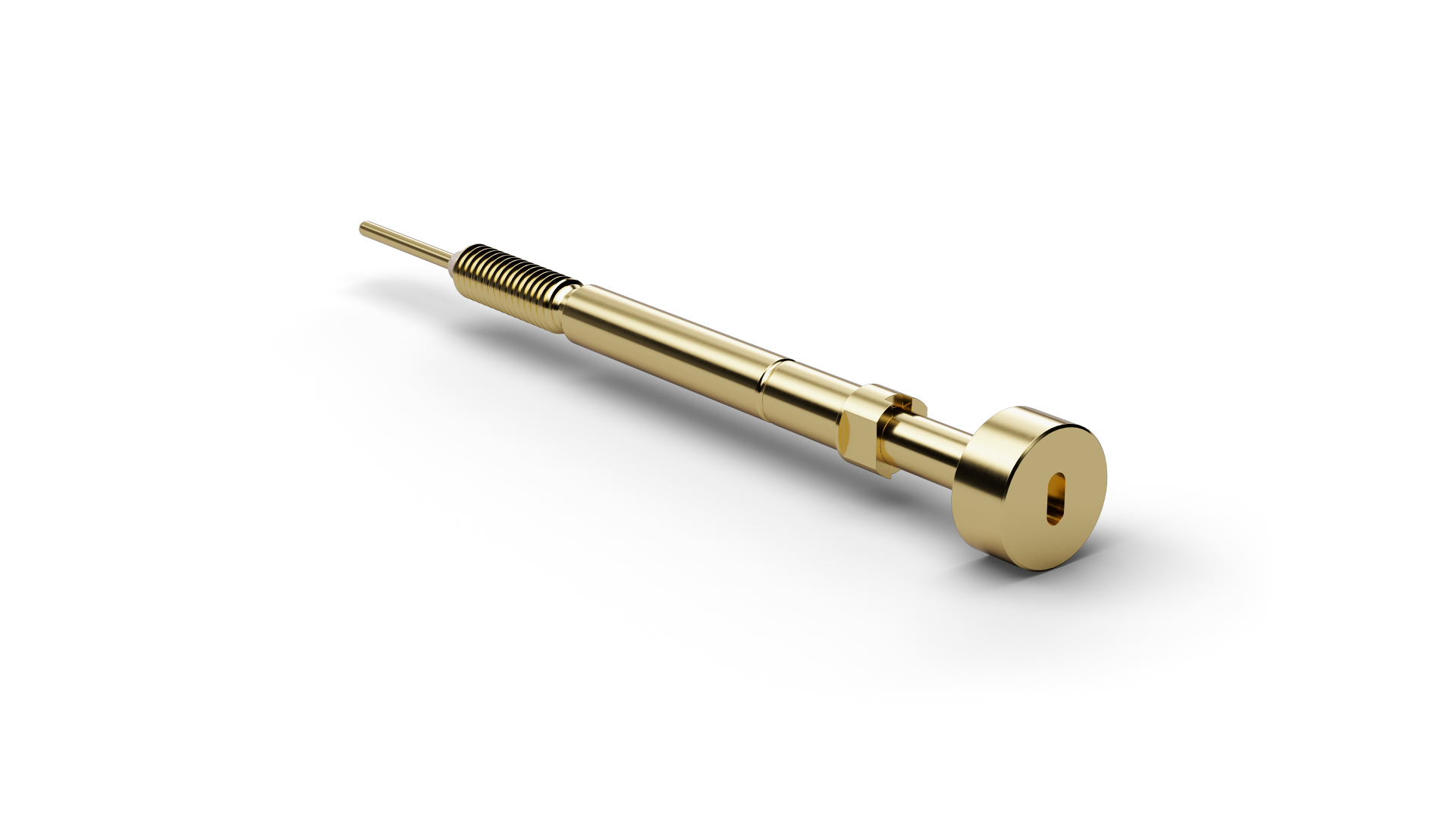

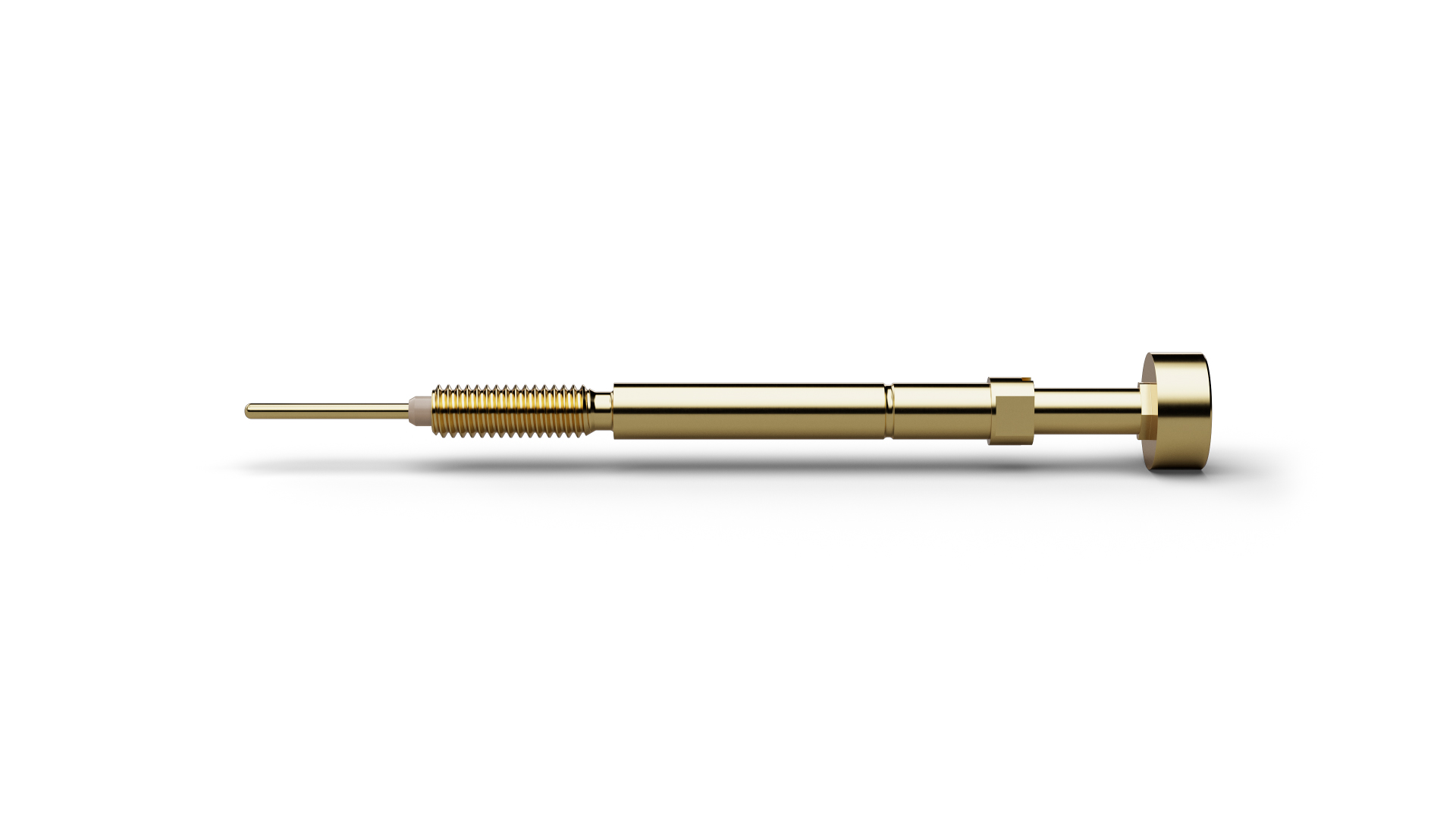

Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F886-NO |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | SM |
| Dimensions | |
|---|---|
| Total length (mm) | 44.8 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 5.5 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 130 |
| Spring force (cN) | 350 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.09 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 50 |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |
