Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F885-NO |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | LM |
| Dimensions | |
|---|---|
| Total length (mm) | 51.3 |
| Protrusion height (mm) | 16.5 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 220 |
| Spring force (cN) | 900 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 50 |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

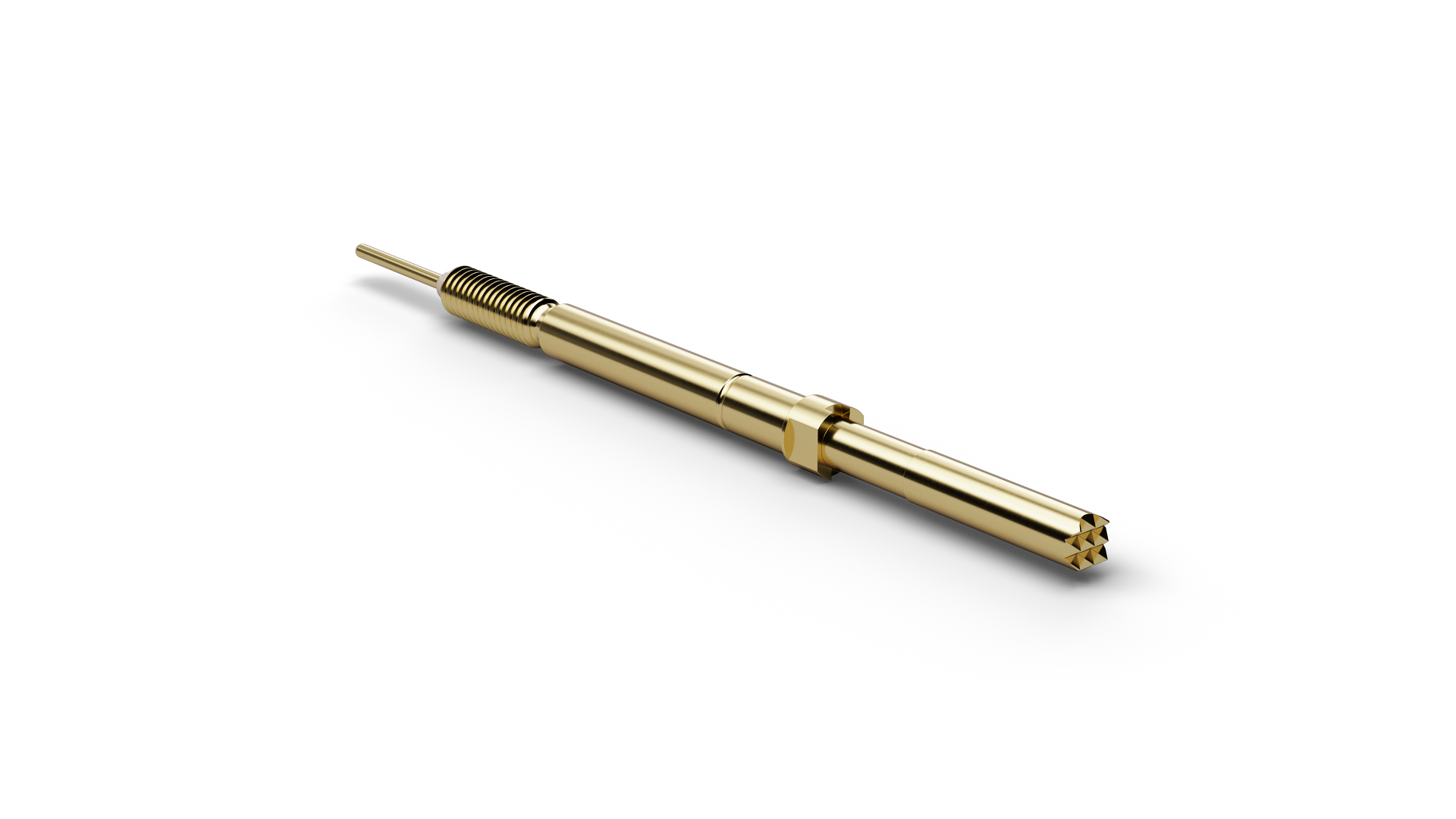

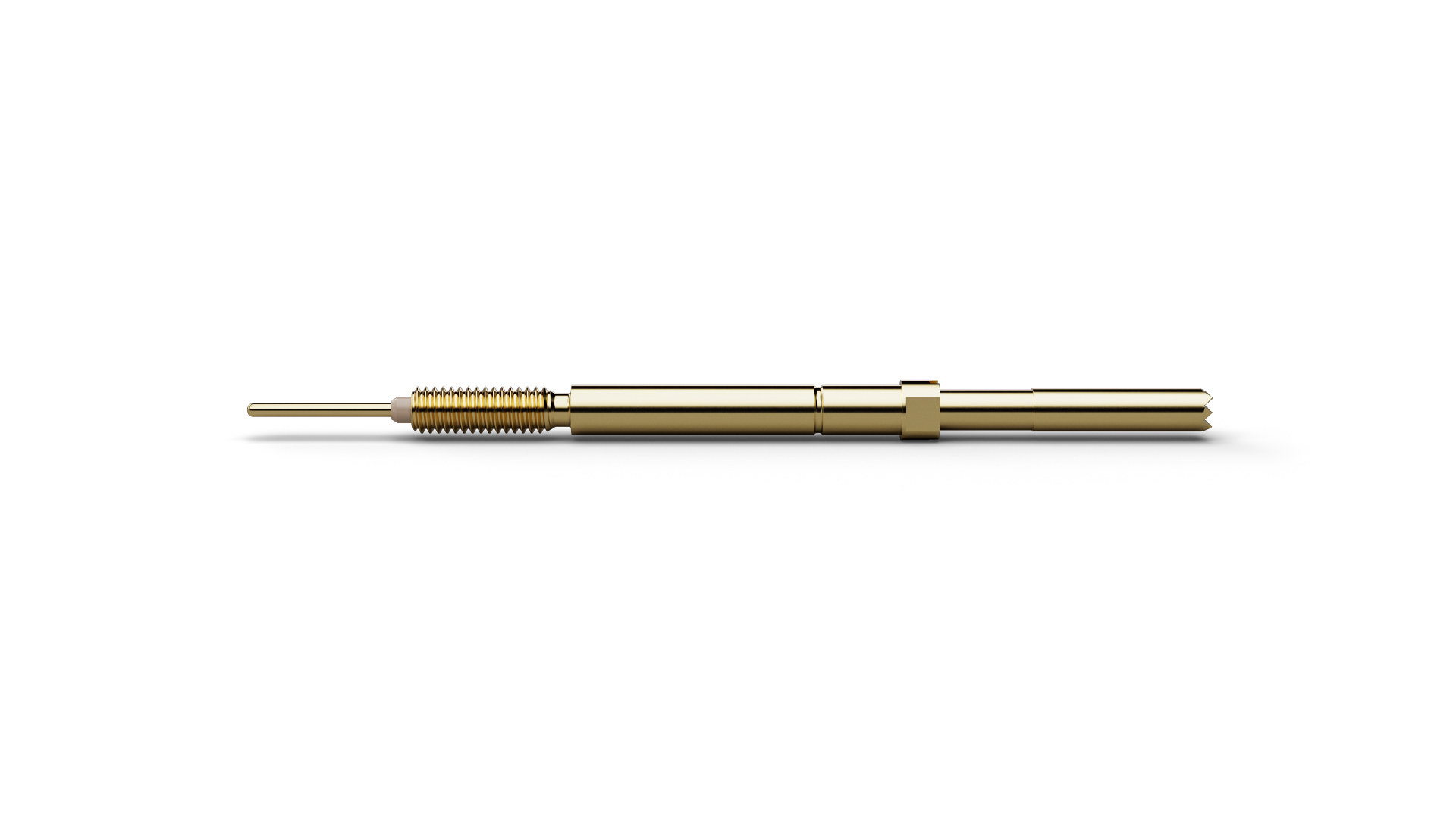

The Normally Open Switch Probe F88506B230G900LM (item number 1004329) combines spring-loaded contacting with a defined switching or sensing function. F88506B230G900LM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88506B230G900LM, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. F88506B230G900LM operates with 900 cN spring force and 4 mm nominal travel. F88506B230G900LM is rated for 10 A continuous current with a typical contact resistance of 50 mΩ. F88506B230G900LM combines a pitch of 3.5 mm / 138 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.3 mm.
