Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F767 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 39.5 |
| Protrusion height (mm) | 16 |
| Tip style diameter (mm) | 0.6 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 21 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 35 |
| Spring force (cN) | 165 |
| Nominal travel (mm) | 6.4 |
| Maximum travel (mm) | 8 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 20 |

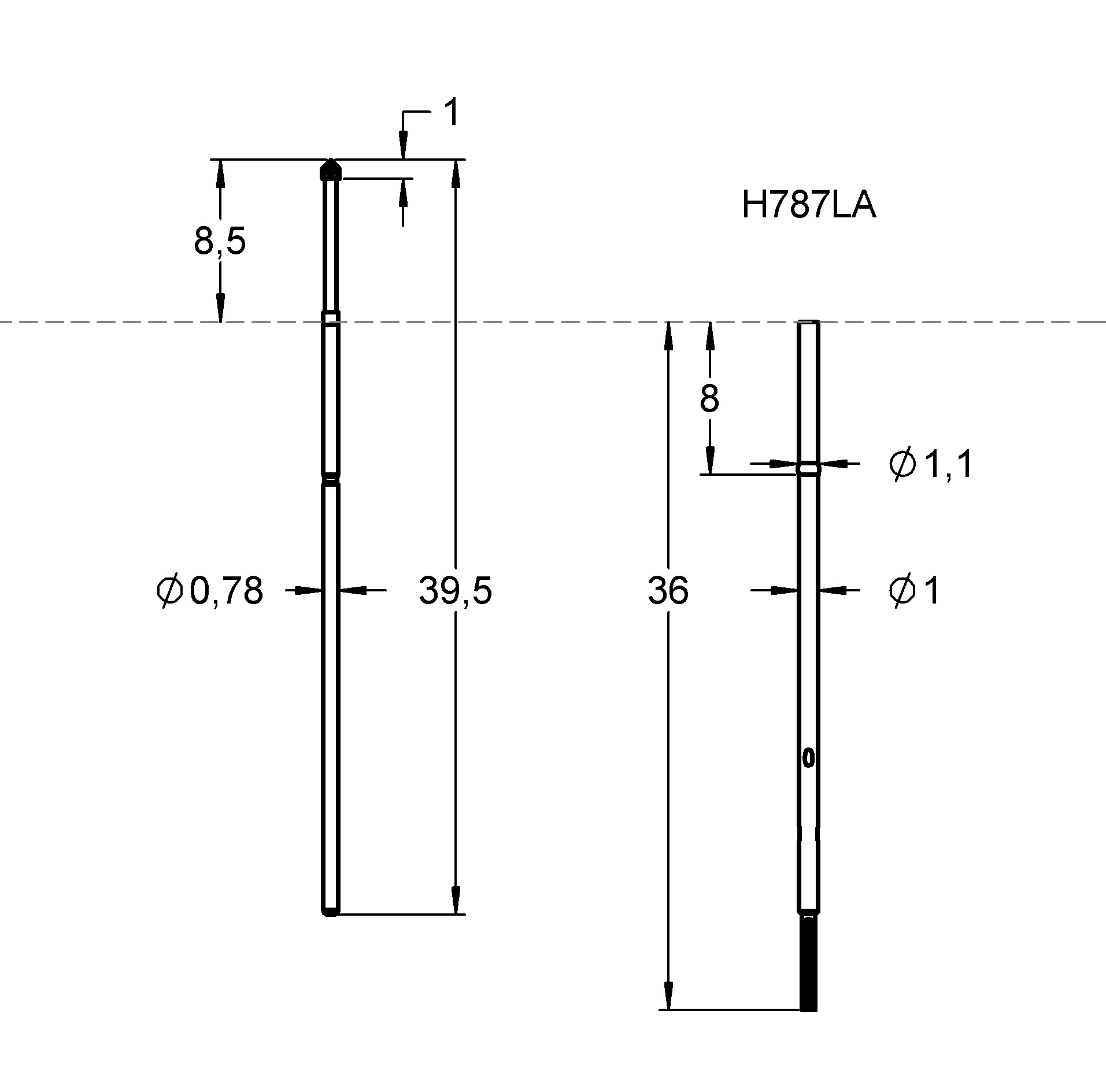

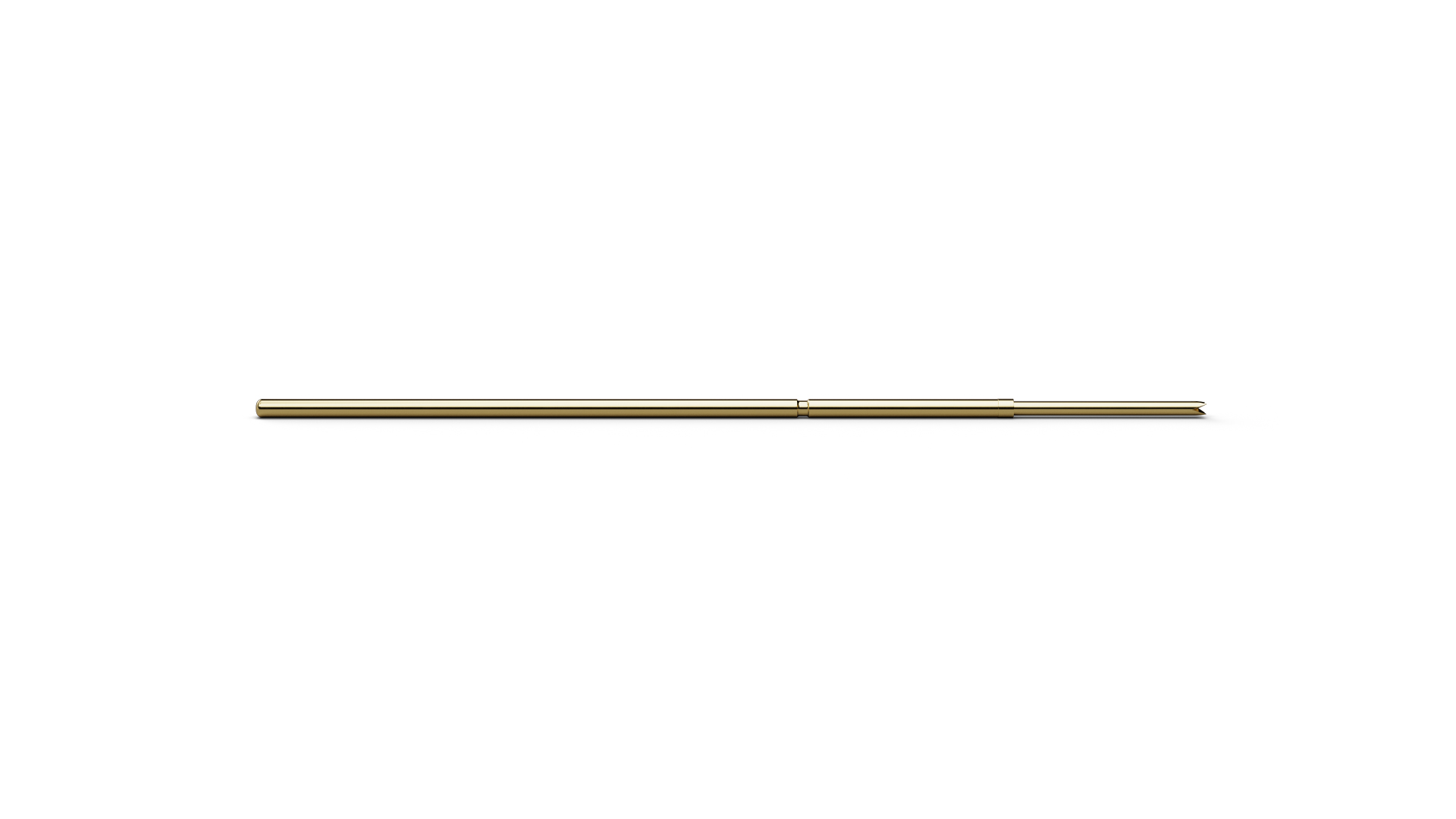

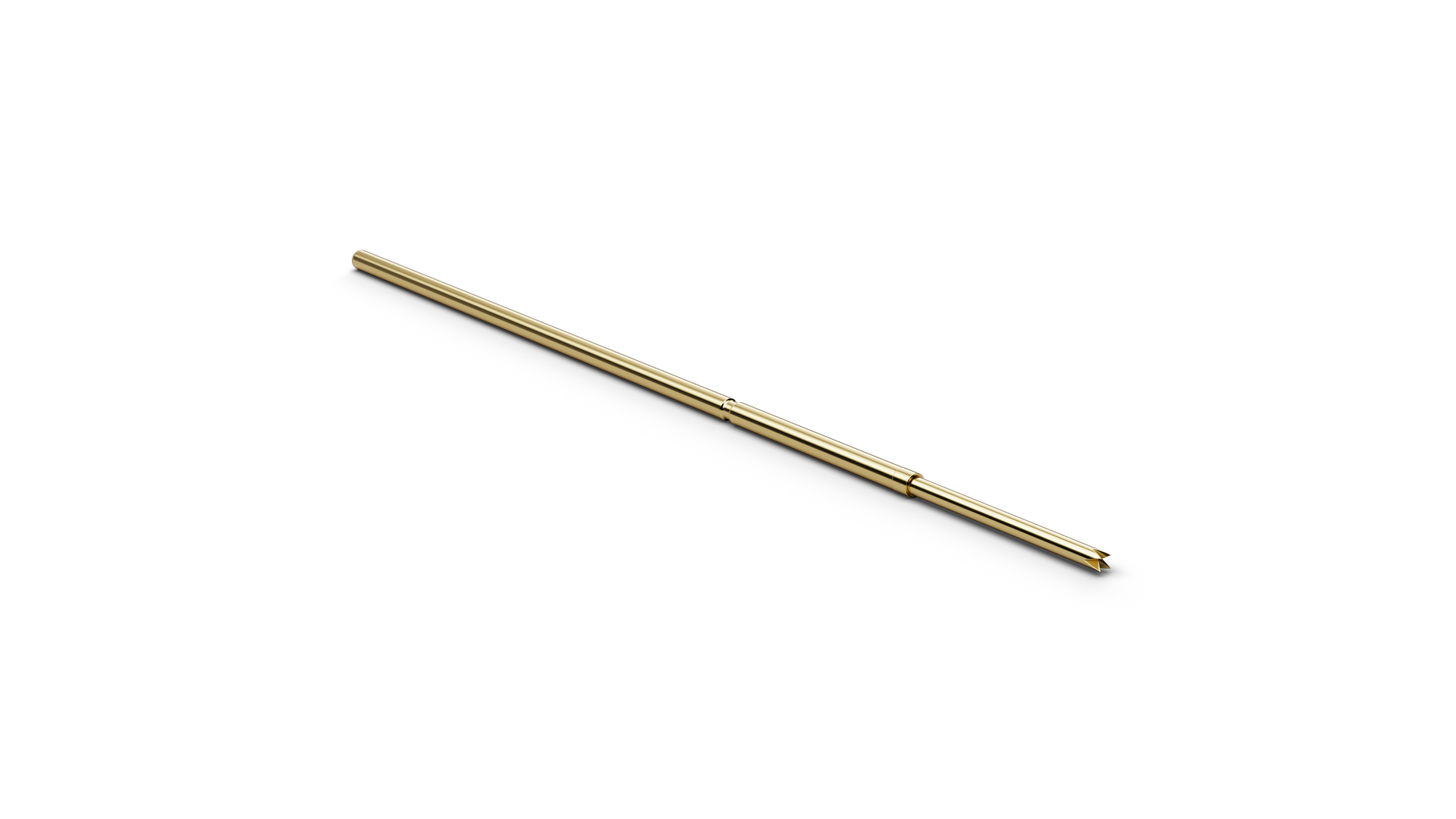

Graphics
Beschreibung des Produkts
F76721S060L165 (item number 1004453) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 21 (4-point crown (self-cleaning)), F76721S060L165 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F76721S060L165 combines a pitch of 1.27 mm / 50 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.6 mm. For F76721S060L165, spring force is 165 cN at a nominal travel of 6.4 mm. F76721S060L165 is rated for 3 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F76721S060L165 is made of steel and uses Longtime Gold plating.
