Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F767 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 39.5 |
| Protrusion height (mm) | 16 |
| Tip style diameter (mm) | 0.9 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 07 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 165 |
| Nominal travel (mm) | 6.4 |
| Maximum travel (mm) | 7 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

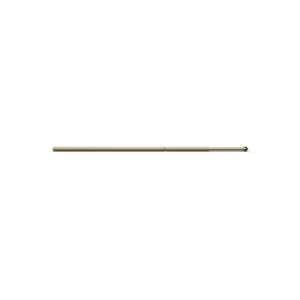

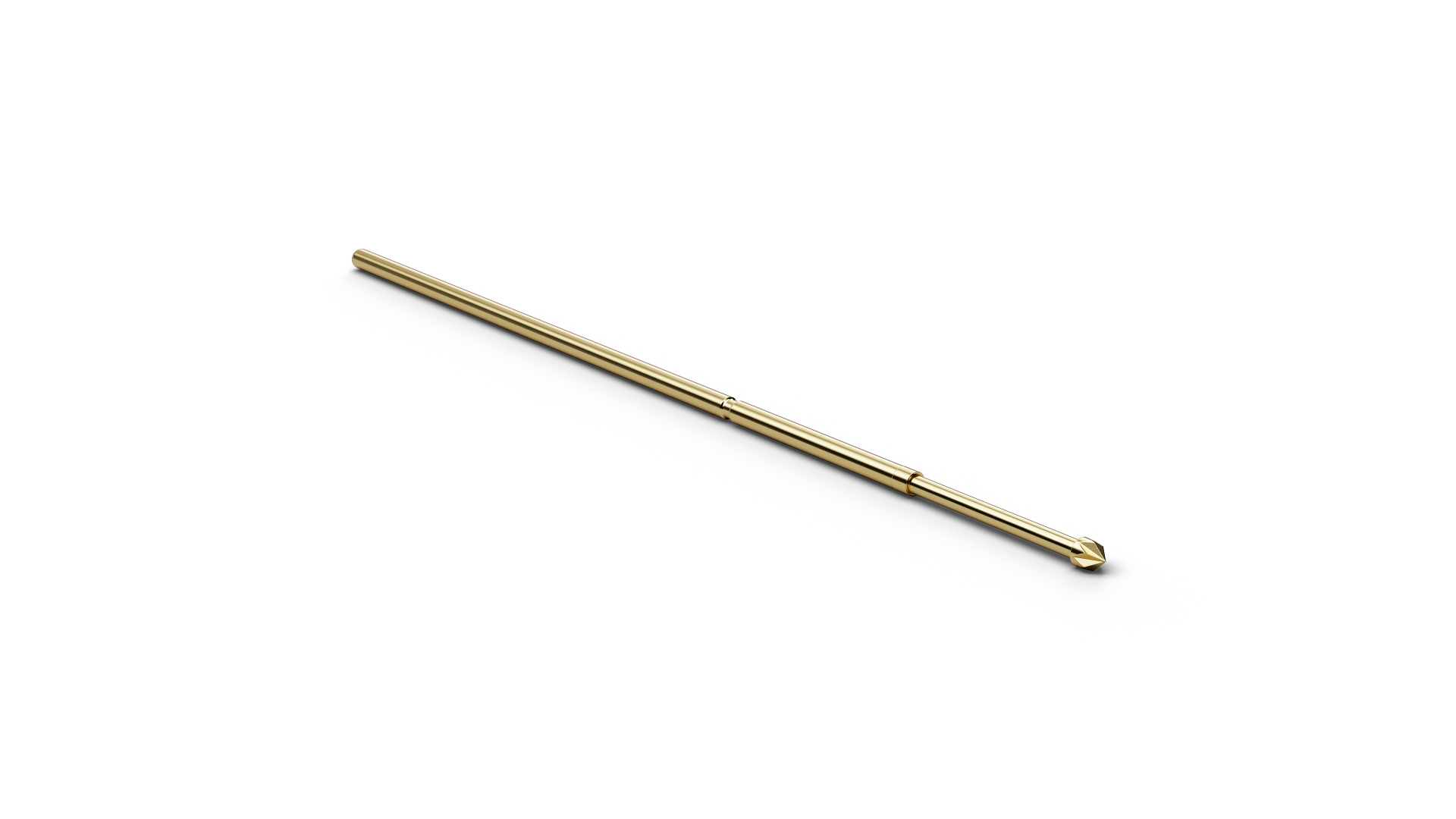

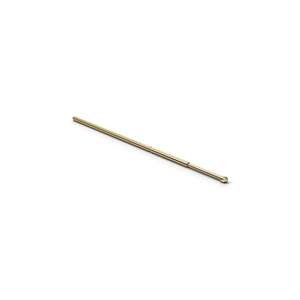

The Basic Contact Probe F76707S090L165 (item number 1004457) is a spring-loaded probe for temporary electrical contact with test points. With tip style 07 (Hexagonal 90° stepped), F76707S090L165 combines ICT/FCT use with a geometry intended for plated vias and pads where sharp edges penetrate contamination and oxide layers. F76707S090L165 combines a pitch of 1.27 mm / 50 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 0.9 mm. For F76707S090L165, spring force is 165 cN at a nominal travel of 6.4 mm. The electrical rating of F76707S090L165 combines 3 A continuous current with 20 mΩ typical contact resistance. The plunger in F76707S090L165 is made of steel and uses Longtime Gold plating.
