Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | L |
| Dimensions | |
|---|---|
| Total length (mm) | 35.4 |
| Protrusion height (mm) | 10.5 |
| Tip style diameter (mm) | 0.9 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 33 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Nickel |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

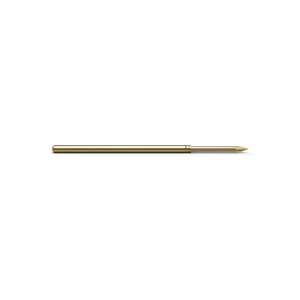

The Basic Contact Probe F10033S090L150L (item number 1004705) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F10033S090L150L combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10033S090L150L combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. For F10033S090L150L, spring force is 150 cN at a nominal travel of 4.3 mm. The electrical rating of F10033S090L150L combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10033S090L150L is made of steel and uses Longtime Gold plating.
