Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | VF100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 69.5 |
| Protrusion height (mm) | 40.5 |
| Tip style diameter (mm) | 1.9 |
| Barrel diameter (mm) | 2 |
| Collar diameter (mm) | 2.2 |
| Press ring diameter (mm) | 2.2 |
| A – spade diameter (mm) | 1.9 |
| B – spade width (mm) | 0.5 |
| C – spade length (mm) | 10 |
| Materials and surfaces | |
|---|---|
| Tip style | 82 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 120 |
| Spring force (cN) | 1500 |
| Nominal travel (mm) | 5 |
| Maximum travel (mm) | 5.5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Thread | M2X0,25 |
| Tool size (mm) | 1,8 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

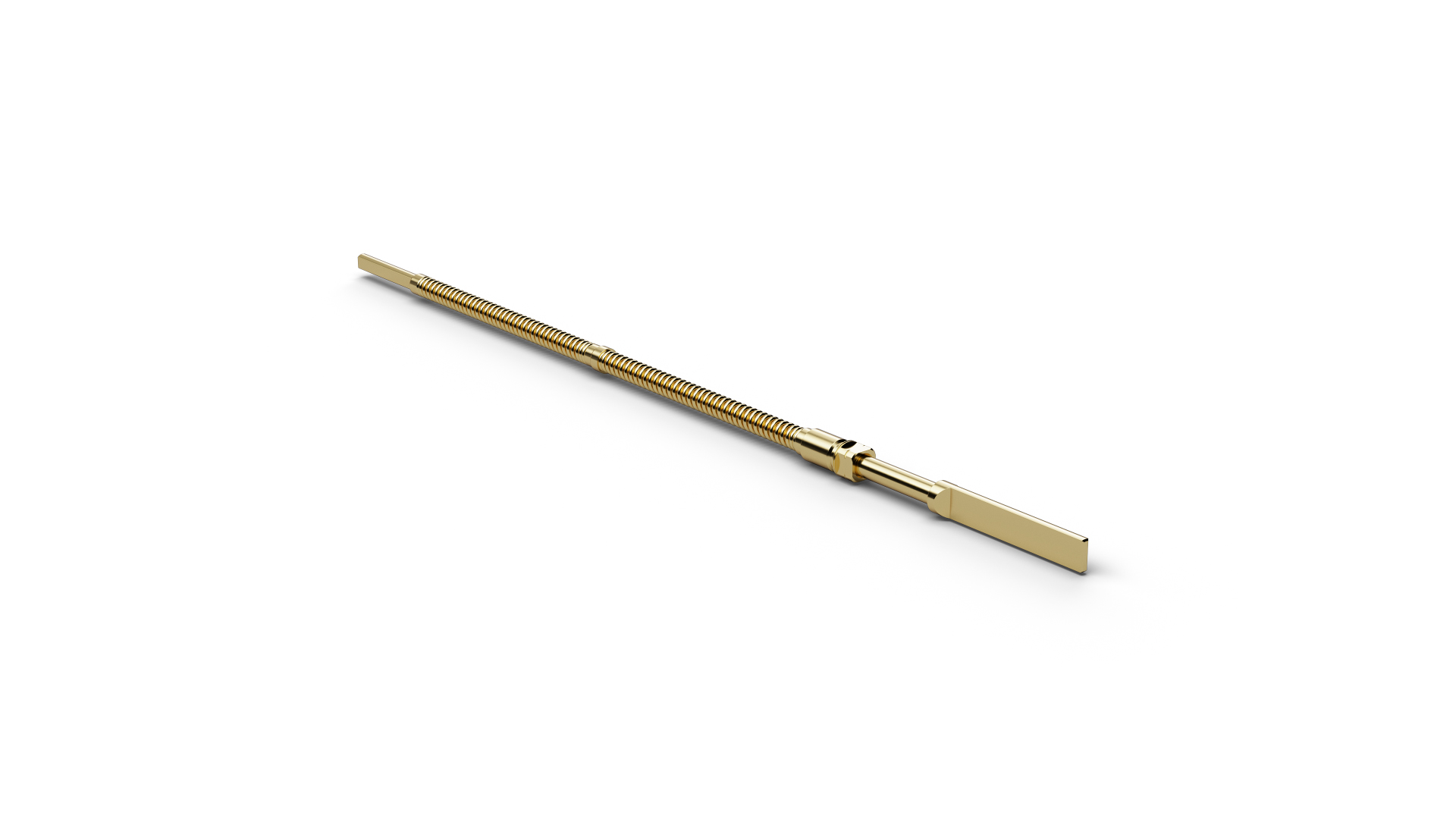

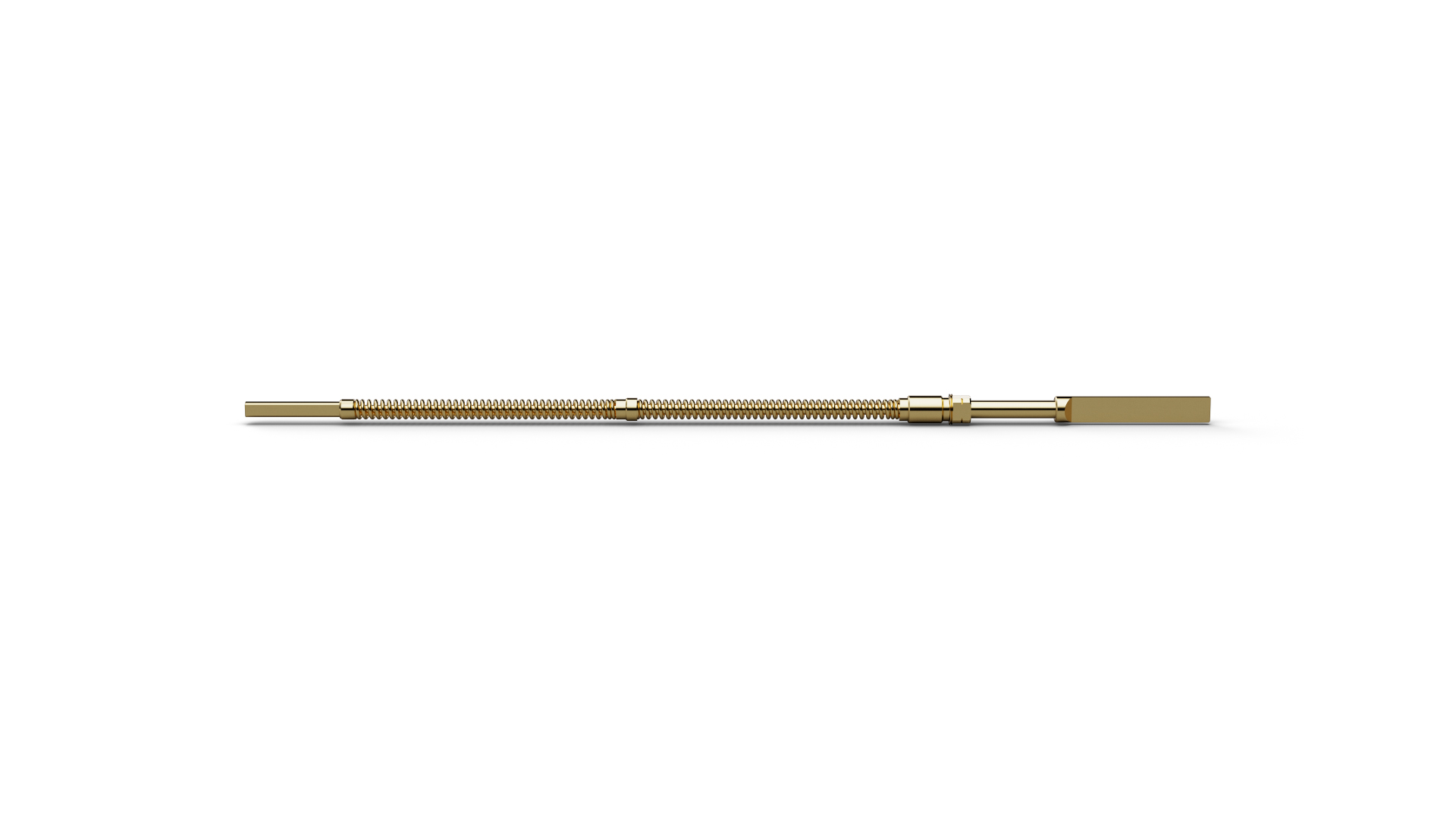

The Push Back Probe VF10082B0003G15 (item number 1005140) is designed to verify that terminals are correctly locked in connector housings. VF10082B0003G15 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. For VF10082B0003G15, spring force is 1500 cN at a nominal travel of 5 mm. Pointing accuracy for VF10082B0003G15 is specified as ±0.1 mm. The electrical rating of VF10082B0003G15 combines 5 A continuous current with 30 mΩ typical contact resistance. For installation, VF10082B0003G15 uses an M2 x 0.25 thread.
