Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | VF3 |
| Pitch (mm/mil) | 3,00 / 118 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 69.7 |
| Protrusion height (mm) | 34.8 |
| Tip style diameter (mm) | 2.7 |
| Barrel diameter (mm) | 2.19 |
| Collar diameter (mm) | 2.6 |
| Press ring diameter (mm) | 2.6 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 300 |
| Spring force (cN) | 1500 |
| Nominal travel (mm) | 5 |
| Maximum travel (mm) | 5.5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Thread | M2X0,2 |
| Tool size (mm) | 2,2 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 8 |
| Typical contact resistance (mOhm) | 30 |

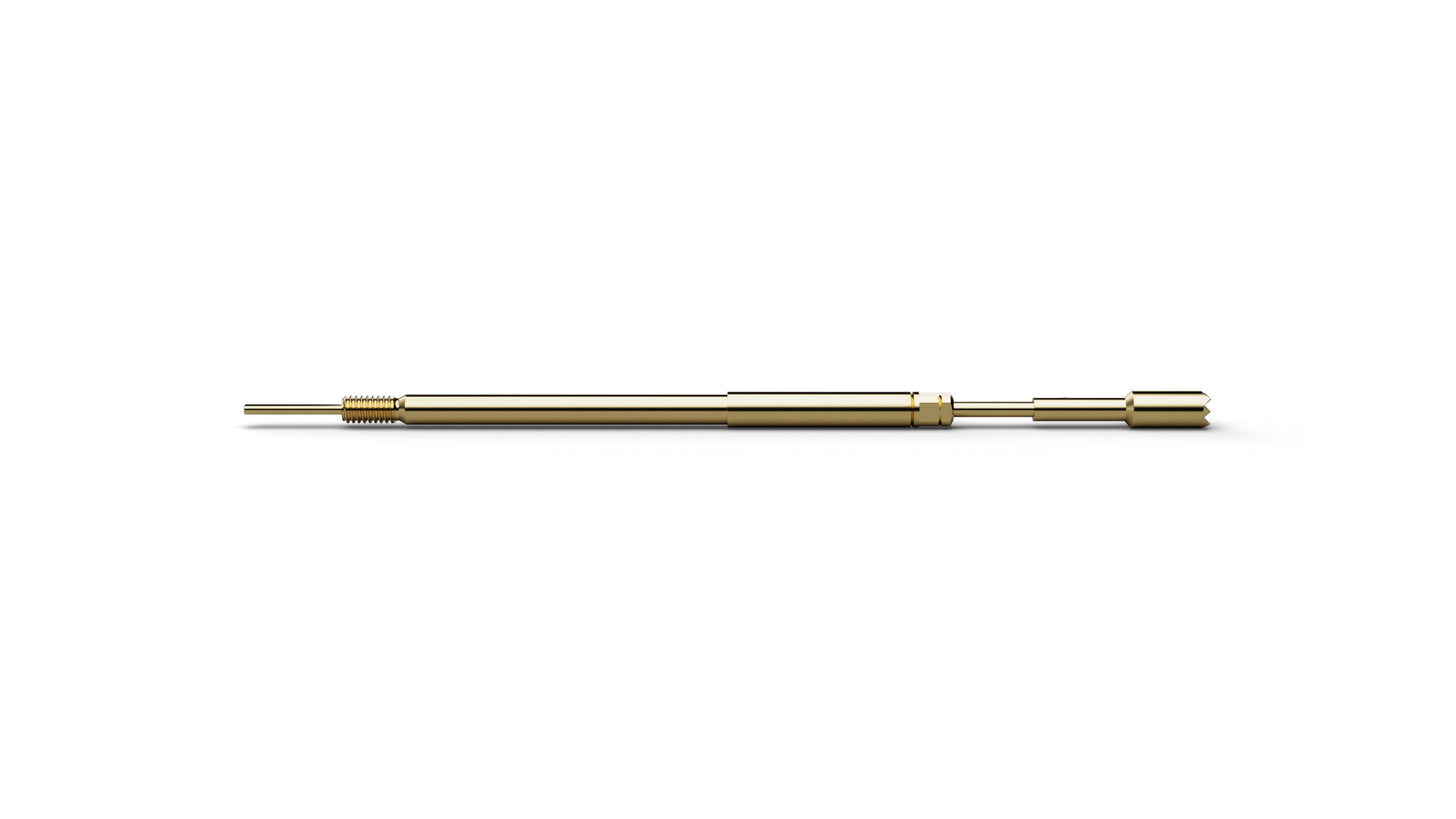

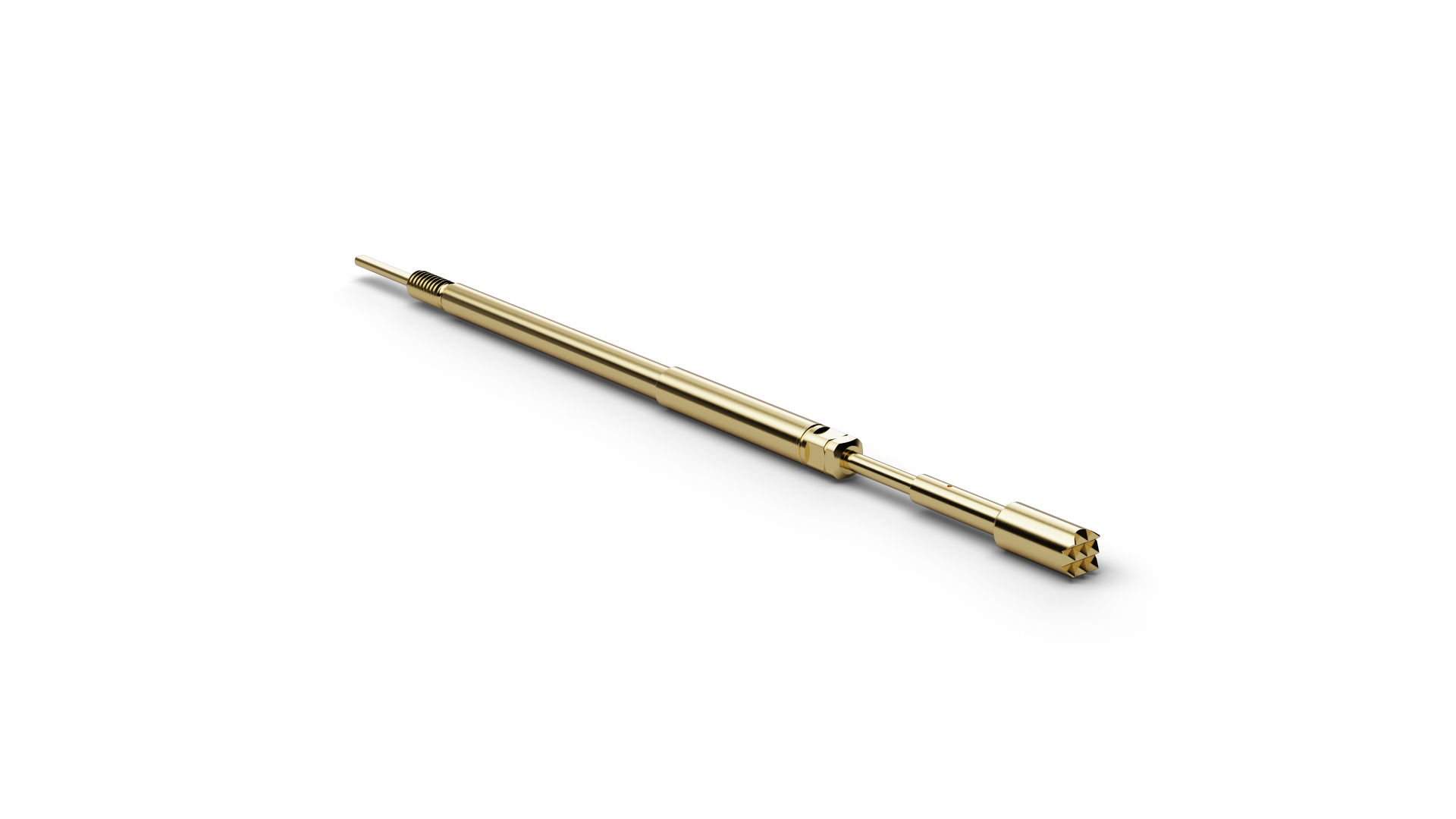

Graphics
Beschreibung des Produkts
The Push Back Probe VF306B270G15 (item number 1005906) is designed to verify that terminals are correctly locked in connector housings. VF306B270G15 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. VF306B270G15 operates with 1500 cN spring force and 5 mm nominal travel. Pointing accuracy for VF306B270G15 is specified as ±0.1 mm. The electrical rating of VF306B270G15 combines 8 A continuous current with 30 mΩ typical contact resistance. For installation, VF306B270G15 uses an M2 x 0.2 thread.
