Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F756 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 41.6 |
| Protrusion height (mm) | 10.3 |
| Tip style diameter (mm) | 0.64 |
| Barrel diameter (mm) | 1.64 |
| Collar diameter (mm) | 2.3 |
| Press ring diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 4.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |
Graphics
Beschreibung des Produkts

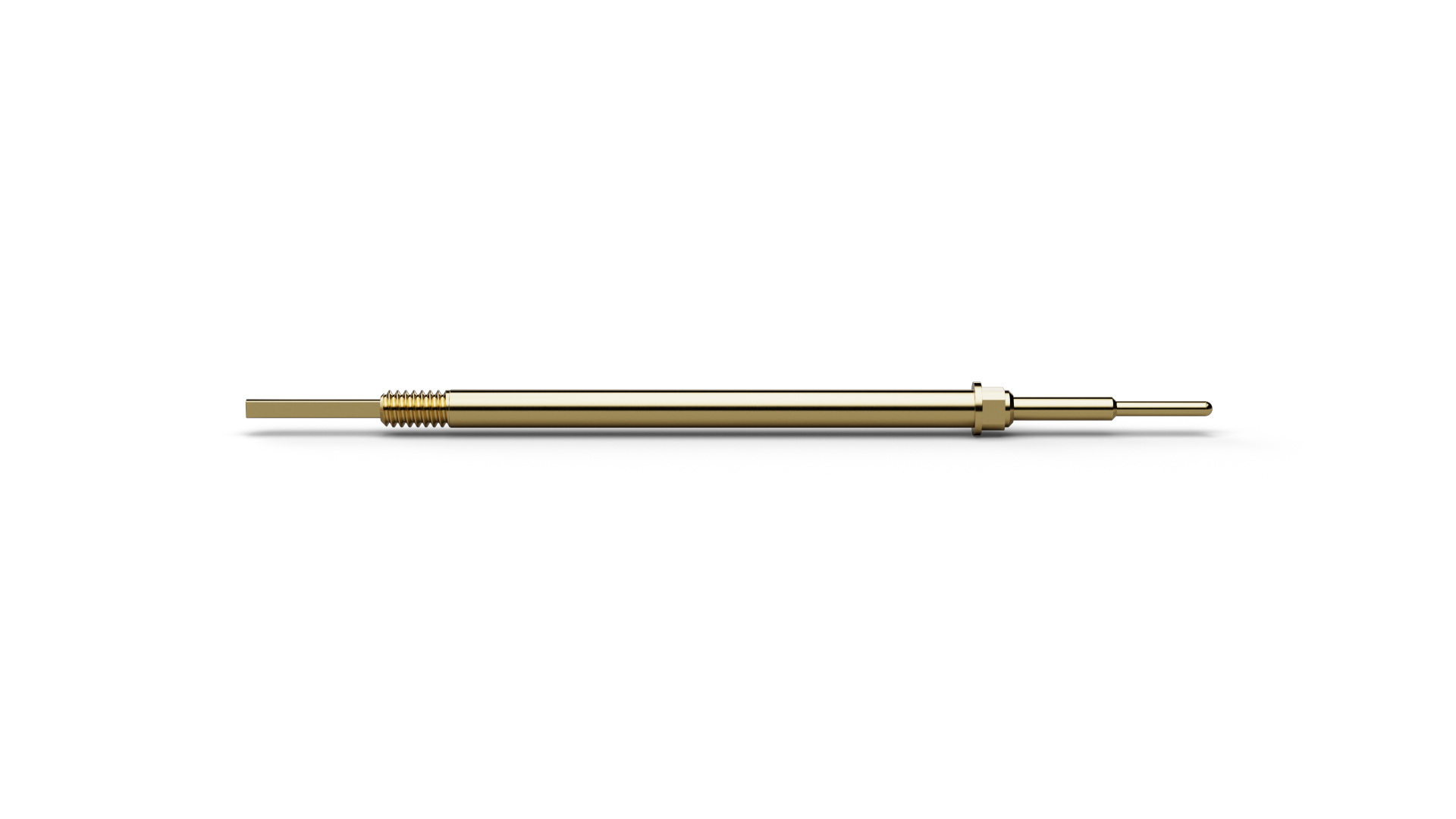

The Twist Proof Probe F75611B064G150 (item number 1006114) keeps its contact tip in a defined rotational orientation. The twist-proof design of F75611B064G150 keeps the contact geometry in a defined orientation and is therefore suited to direction-sensitive connector contacting. The twist-proof design of F75611B064G150 is useful in connector testing when elongated contours, contact tongues or direction-dependent tip geometries must remain precisely aligned. Tip style 11 (Spherical) has a diameter of 0.64 mm. F75611B064G150 operates with 150 cN spring force and 4 mm nominal travel. Pointing accuracy for F75611B064G150 is specified as ±0.08 mm.
