Technical data
| General | |
|---|---|
| Type/family | F883-NC |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | SM |
| Dimensions | |
|---|---|
| Total length (mm) | 44.8 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|

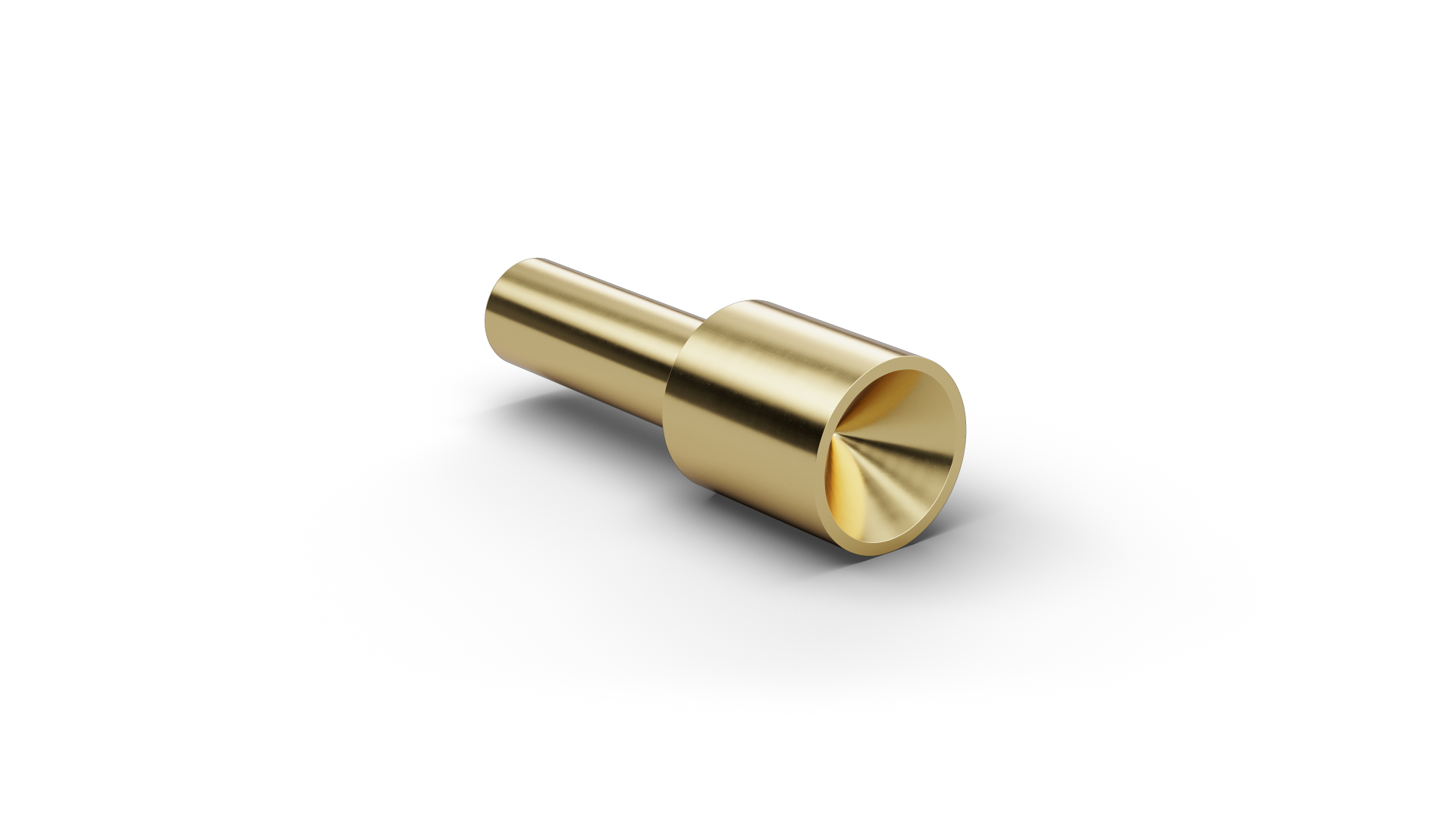

| Tip style | 05 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 230 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.09 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 50 |
| Switch type | NC (Normal Close) |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |

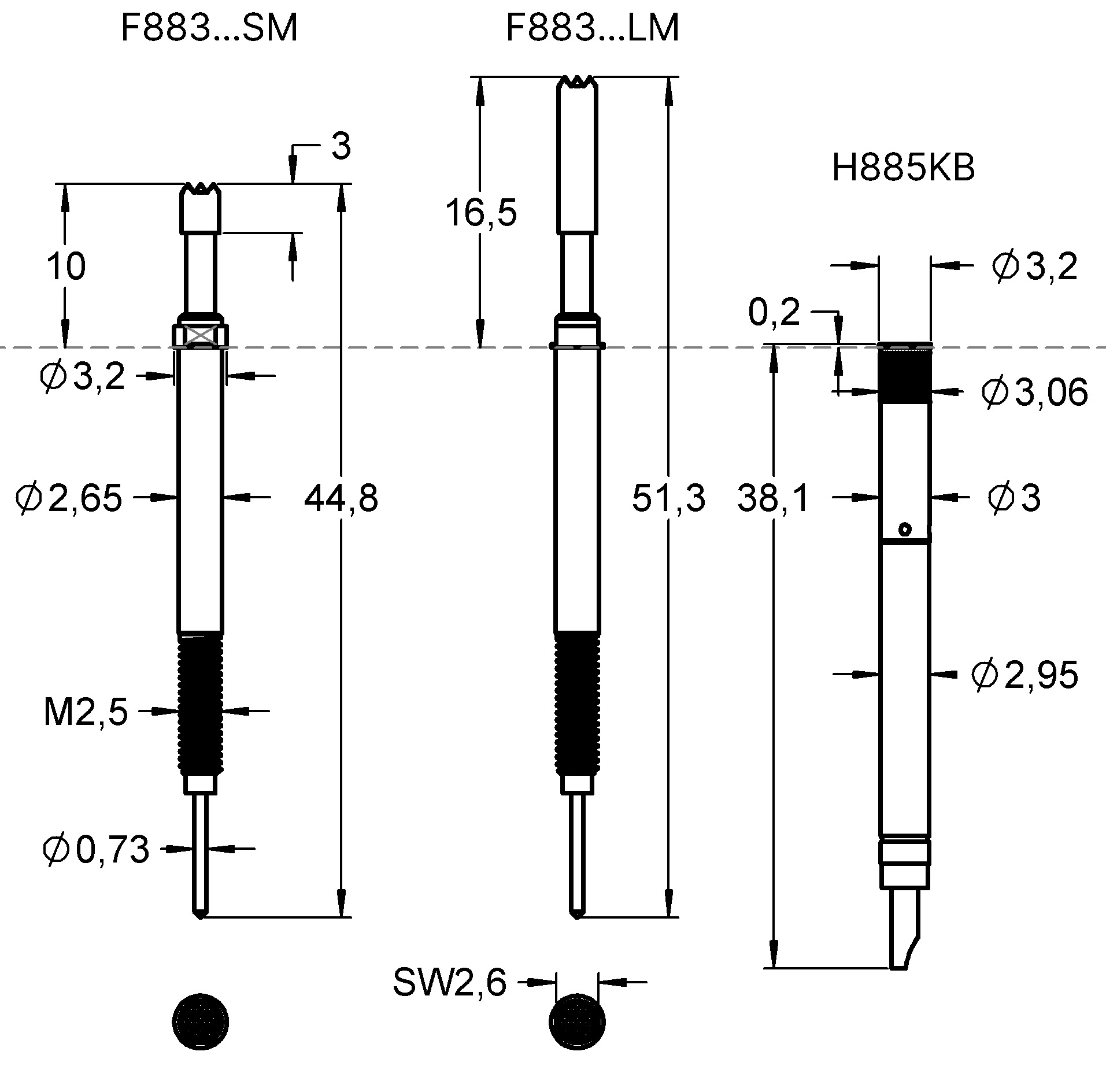

Graphics
Beschreibung des Produkts

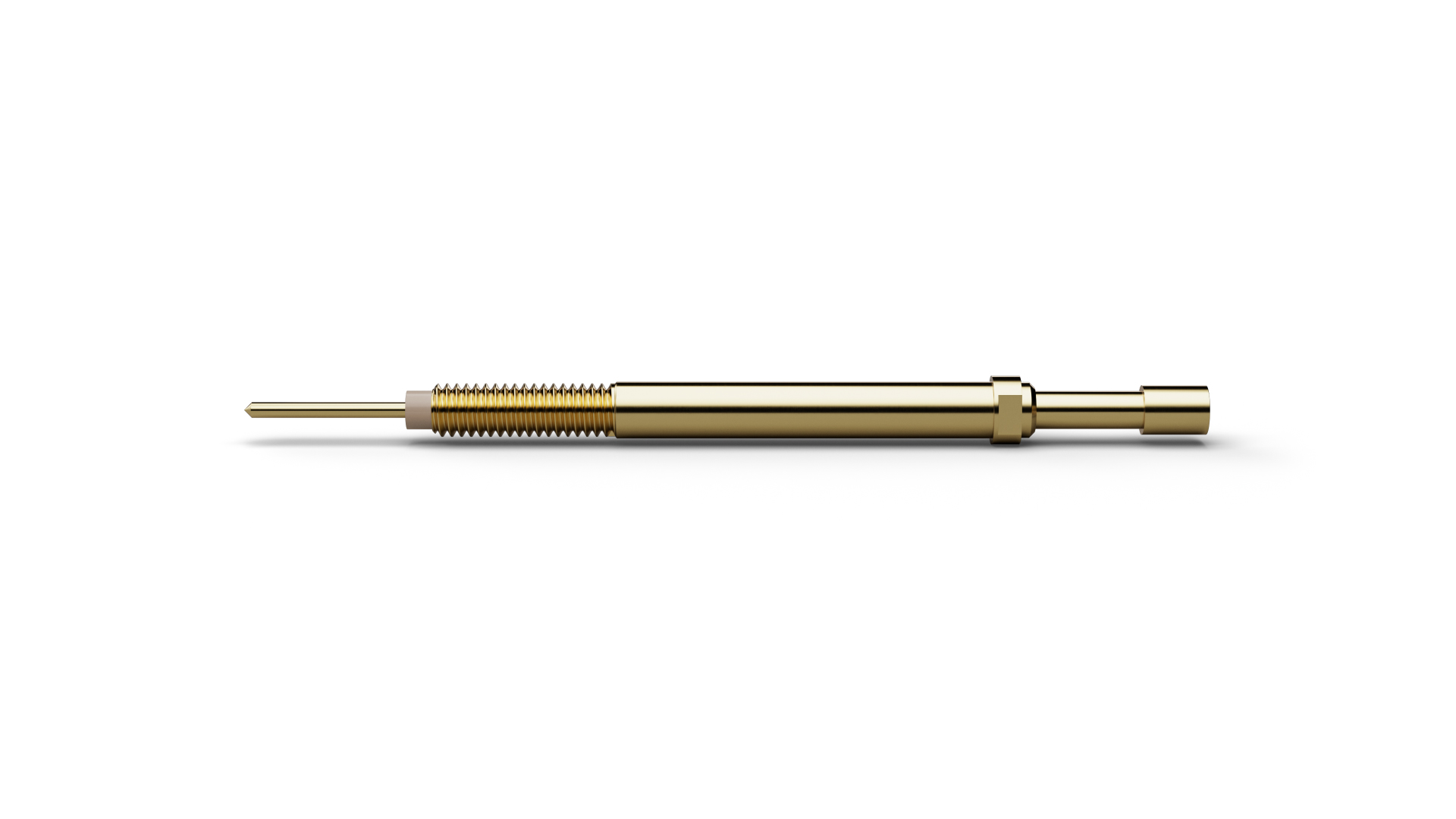

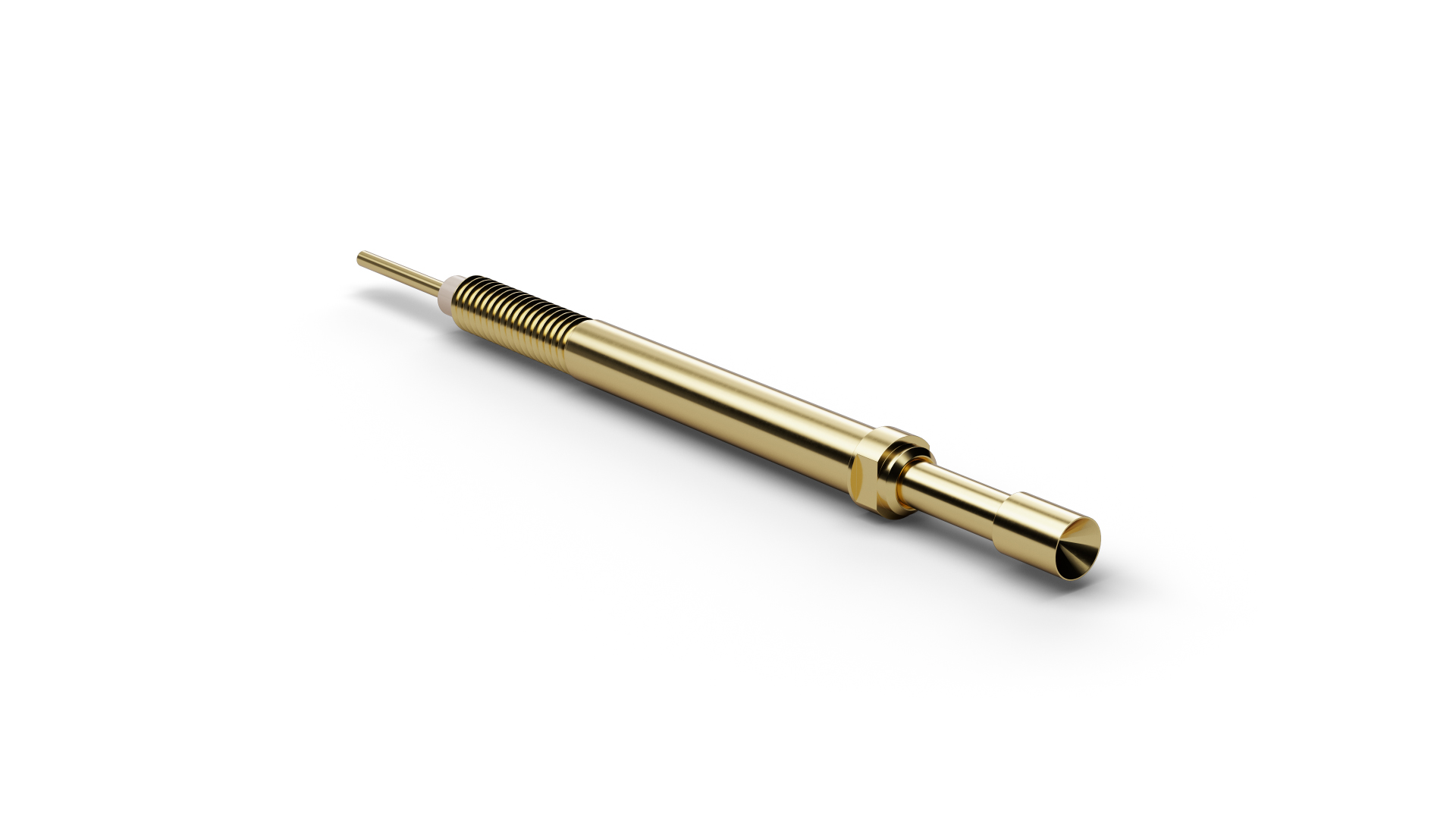

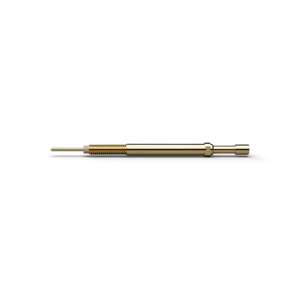

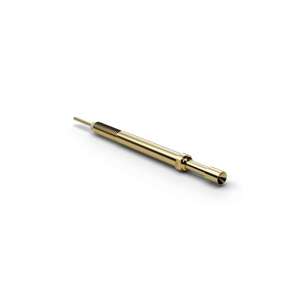

The Normally Closed Switch Probe F88305B230G230SM (item number 1006965) combines spring-loaded contacting with a defined switching or sensing function. F88305B230G230SM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88305B230G230SM, the normally closed function opens an initially closed contact at the defined actuation travel, allowing the test system to detect a mechanical state electrically. For F88305B230G230SM, spring force is 230 cN at a nominal travel of 4 mm. The electrical rating of F88305B230G230SM combines 10 A continuous current with 50 mΩ typical contact resistance. F88305B230G230SM combines a pitch of 3.5 mm / 138 mil with tip style 05 (Concave stepped) and a tip diameter of 2.3 mm.
