Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F797 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 37 |
| Protrusion height (mm) | 15 |
| Tip style diameter (mm) | 1 |
| Barrel diameter (mm) | 1.66 |
| Collar diameter (mm) | 2.05 |
| Press ring diameter (mm) | 2.05 |
| Materials and surfaces | |
|---|---|
| Tip style | 16 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 8 |
| Maximum travel (mm) | 10 |
| Pointing accuracy +/- (mm) | 0.18 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |

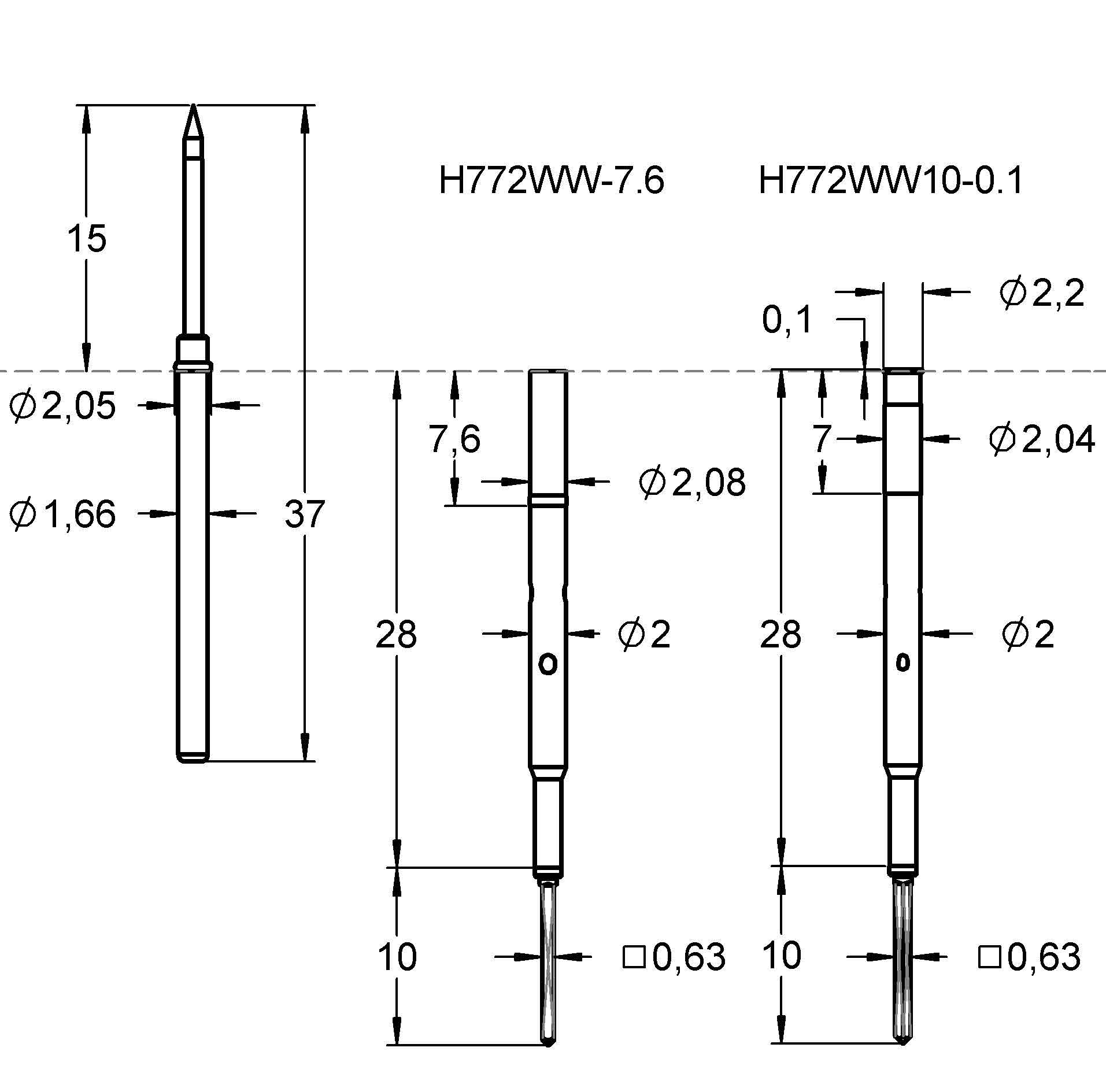

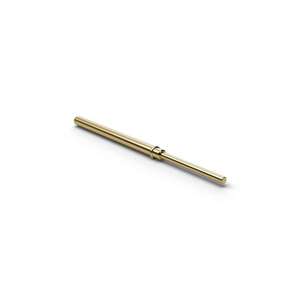

Graphics
