Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | I- |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+250°C |
| Dimensions | |
|---|---|
| Total length (mm) | 22 |
| Tip style diameter (mm) | 2.15 |
| Barrel diameter (mm) | 1.98 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Plunger material | Brass |
| Plunger plating | Gold |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |

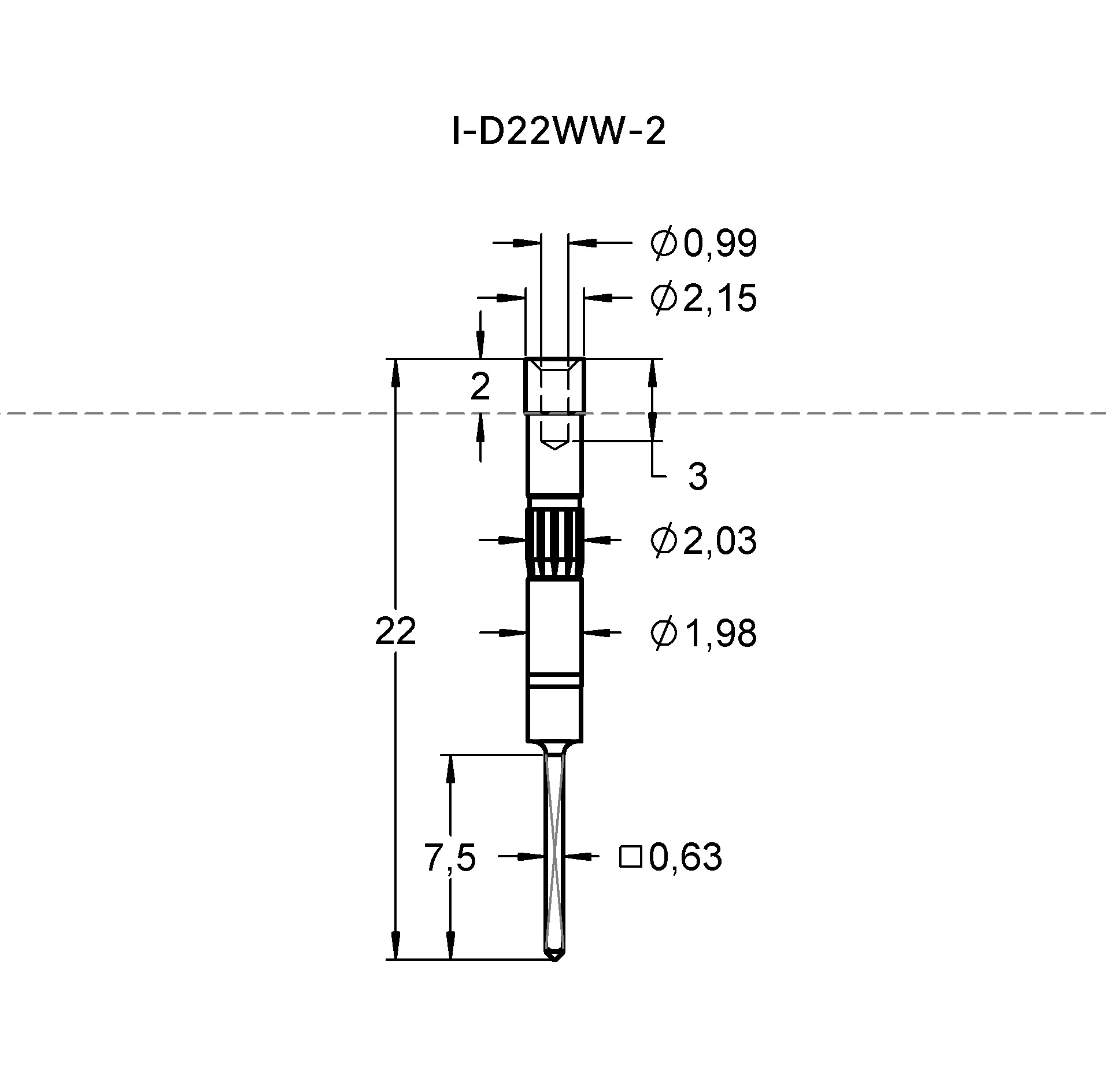

Graphics
Beschreibung des Produkts

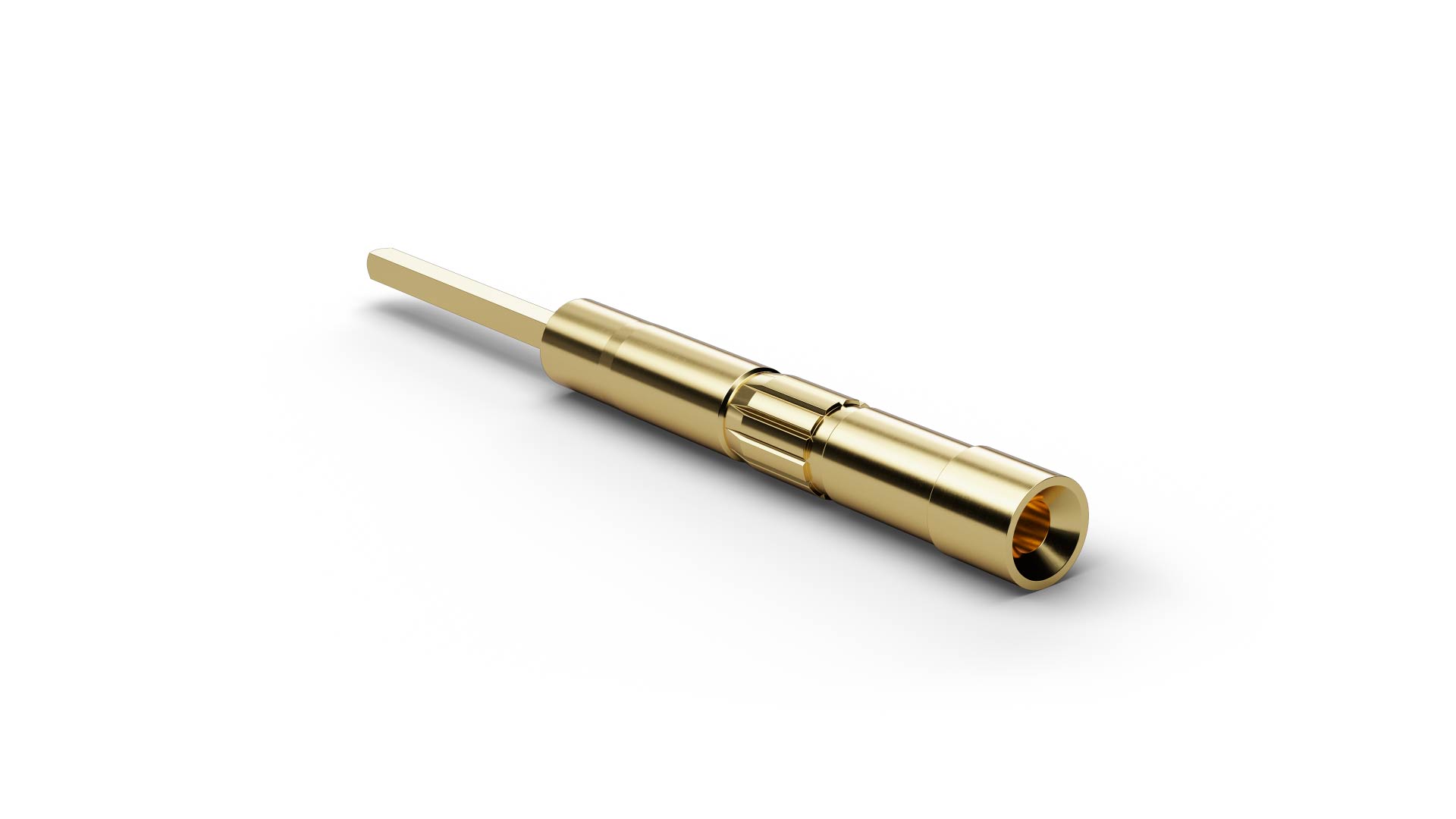

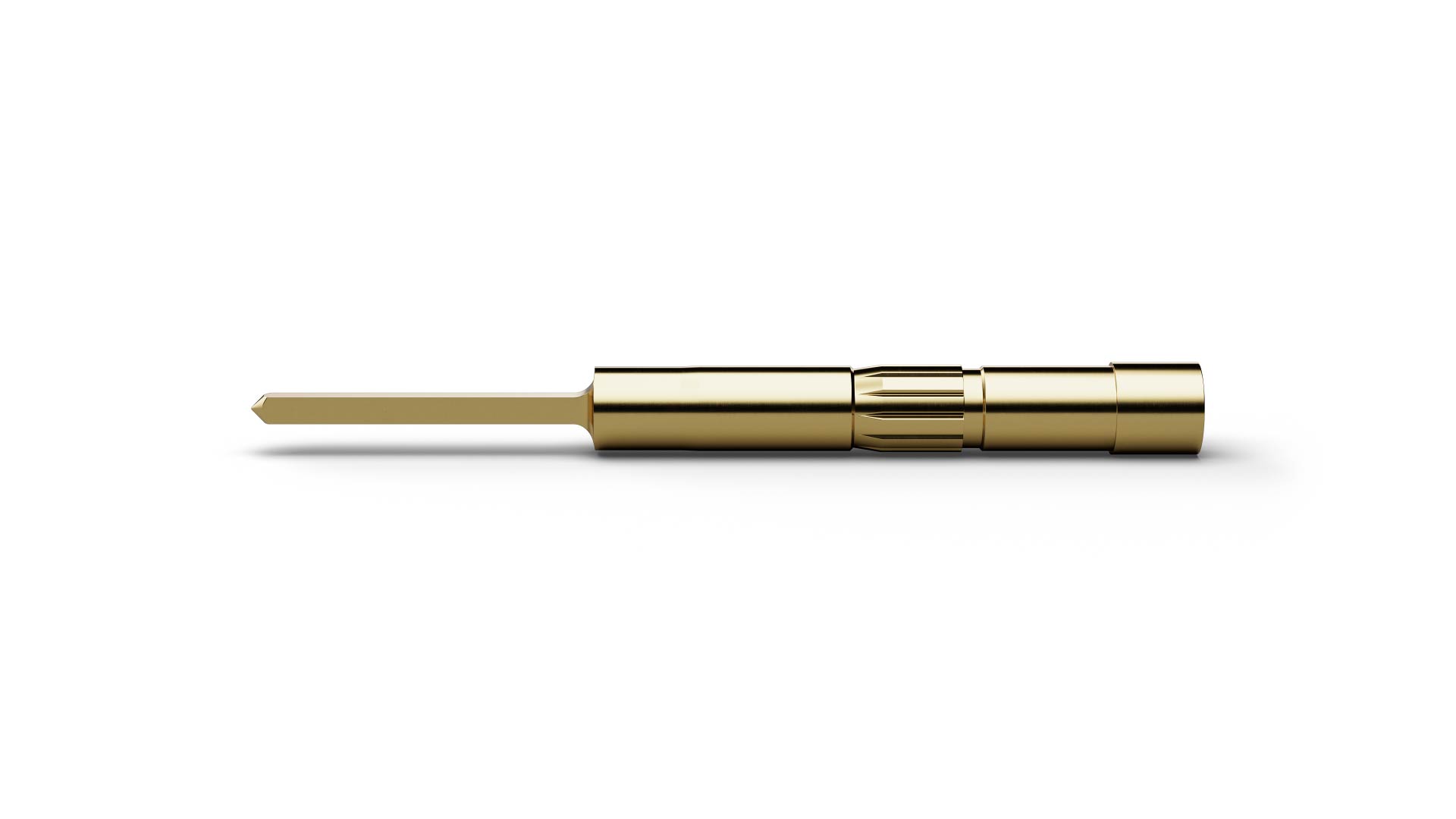

I-D22WW-2 (item number 1007302) is a Contact Probe for defined interfaces within electronic test setups. I-D22WW-2 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. I-D22WW-2 combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 2.15 mm. For I-D22WW-2, the specified continuous current is 10 A. The plunger in I-D22WW-2 is made of brass and is gold-plated.
