Technical data
| General | |
|---|---|
| Type/family | H888 |
| Dimensions | |
|---|---|
| Total length (mm) | 16 |
| Outer diameter (mm) | 6.5 |
| Internal thread | 6,0X0,75 |
| Materials and surfaces | |
|---|---|
| Material, Coating | Brass, Gold |
| Mechanical specifications | |
|---|---|
| Internal thread | 6,0X0,75 |
Graphics
Beschreibung des Produkts

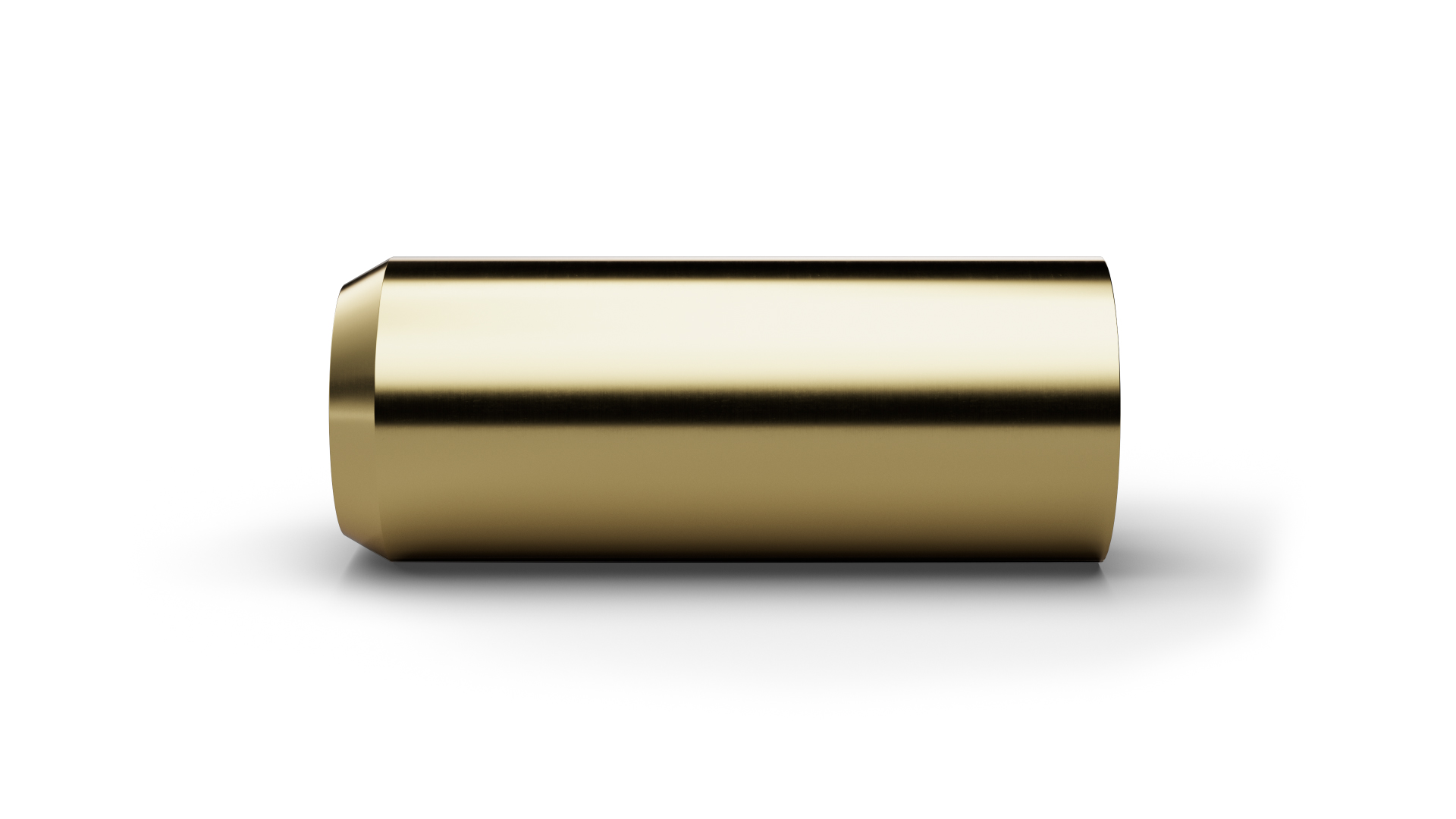

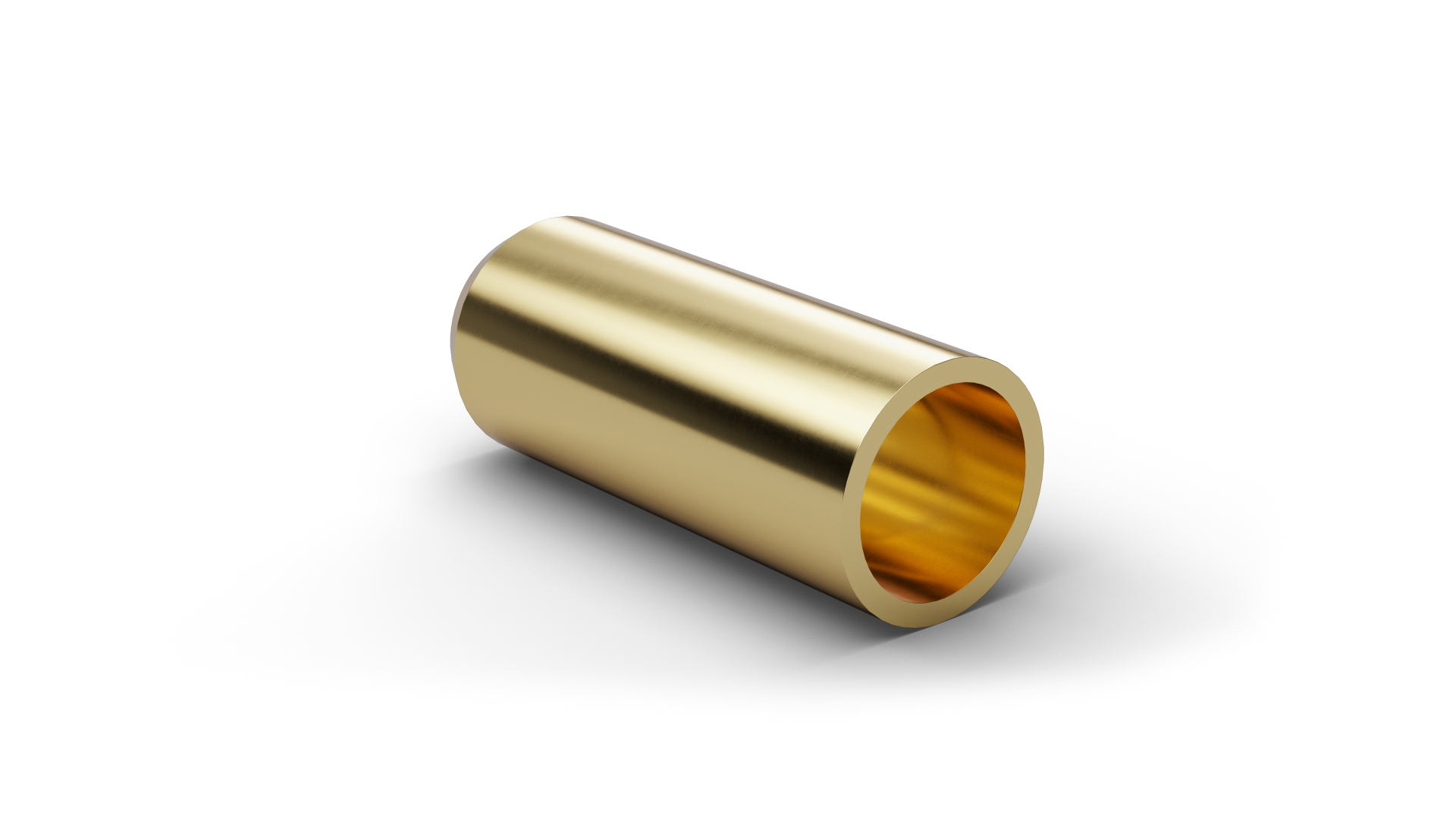

The receptacle H888S1 (item number 1007758) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H888S1 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H888S1, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
