Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F754 |
| Pitch (mm/mil) | 4,50 / 177 |
| Temperature | -45°C...+100°C |
| Additional definition | S |
| Dimensions | |
|---|---|
| Total length (mm) | 35 |
| Protrusion height (mm) | 16 |
| Tip style diameter (mm) | 5 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.7 |
| Press ring diameter (mm) | 3.7 |
| A – spade diameter (mm) | 5 |
| B – spade width (mm) | 1 |
| C – spade length (mm) | 3 |
| Materials and surfaces | |
|---|---|
| Tip style | 84 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 4.5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

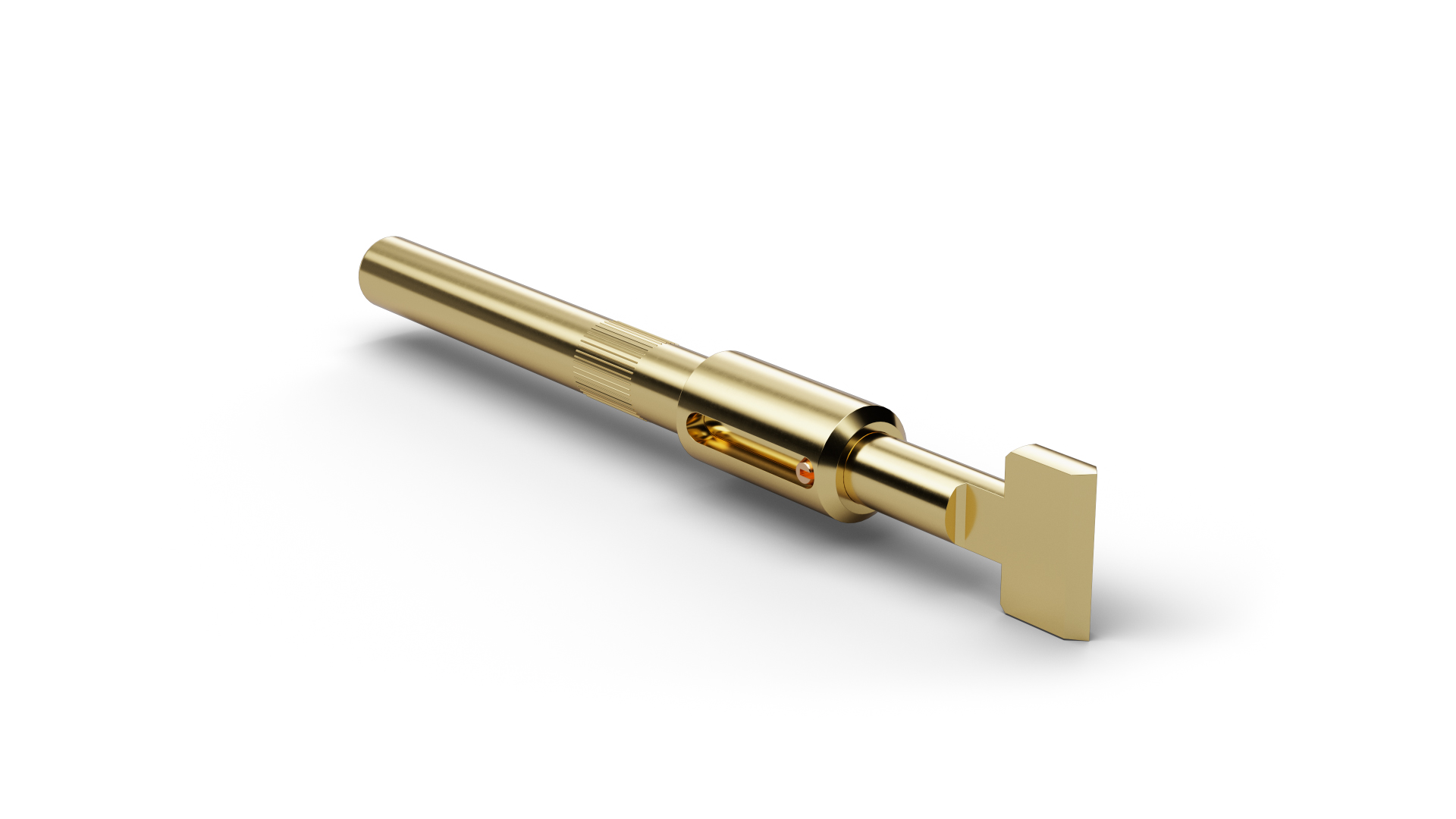

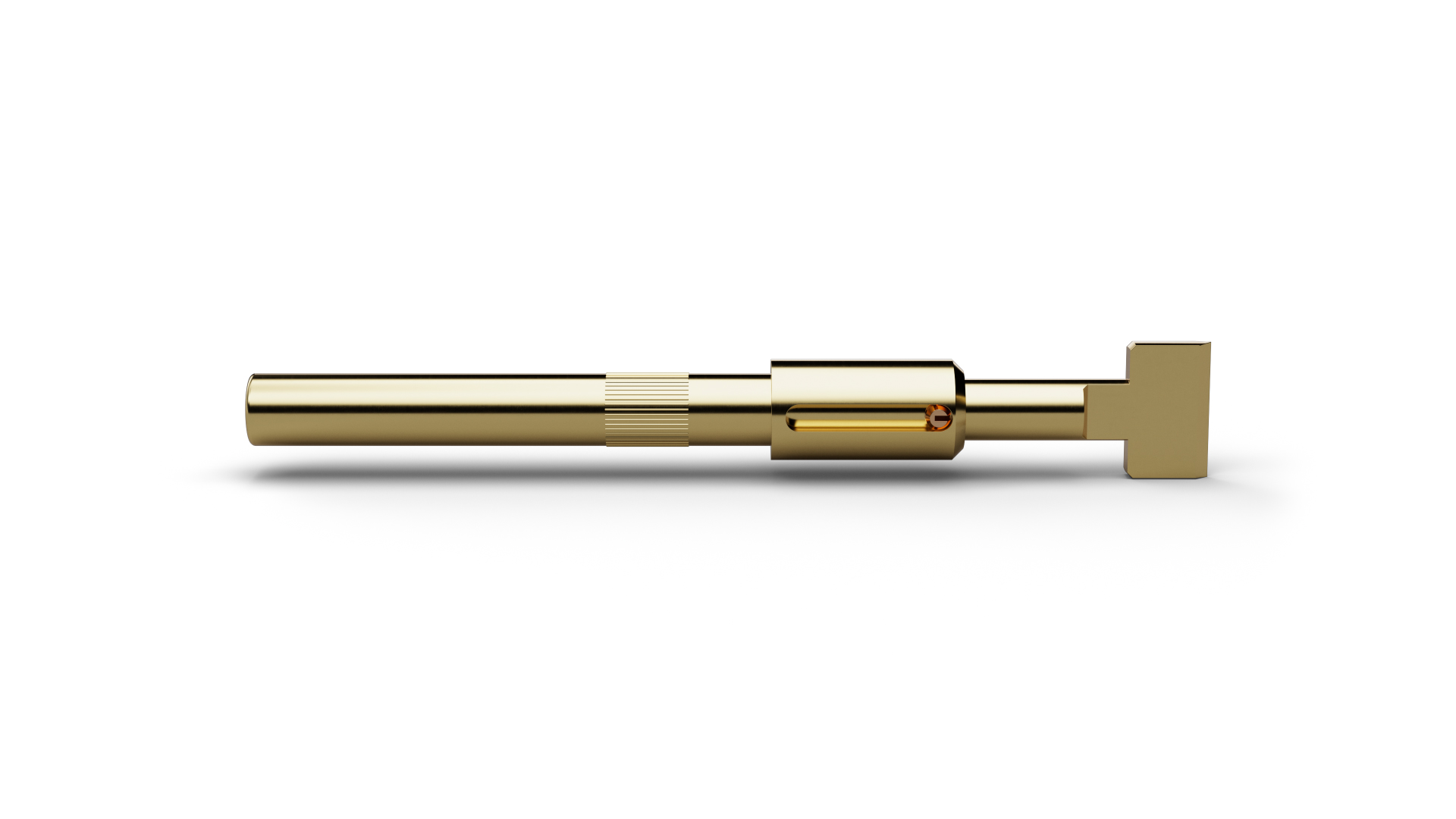

The Twist Proof Probe F75484B0001G150S (item number 1007807) keeps its contact tip in a defined rotational orientation. On F75484B0001G150S, tip style 84 (SpadeØ > plungerØ stepped) supports twist-proof contacting of connector elements whose orientation must be maintained in the test fixture. The twist-proof design of F75484B0001G150S is useful in connector testing when elongated contours, contact tongues or direction-dependent tip geometries must remain precisely aligned. On F75484B0001G150S, tip style 84 (SpadeØ > plungerØ stepped) has a diameter of 5 mm. F75484B0001G150S operates with 150 cN spring force and 4 mm nominal travel. Pointing accuracy for F75484B0001G150S is specified as ±0.1 mm.
