Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | FP-DF |
| Pitch (mm/mil) | 1,00 / 39 |
| Temperature | -45°C...+100°C |

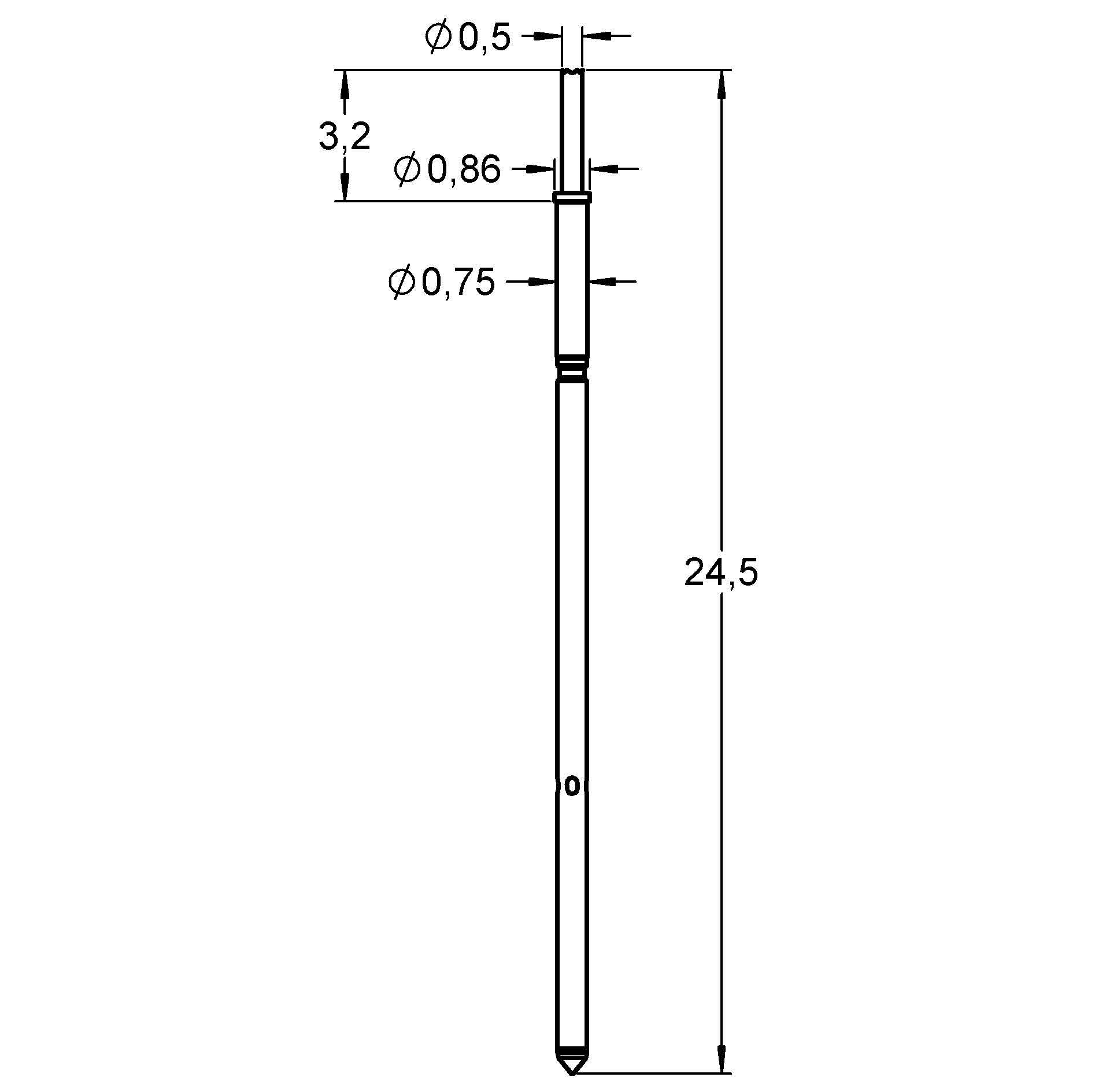

| Dimensions | |
|---|---|
| Total length (mm) | 24.5 |
| Protrusion height (mm) | 3.2 |
| Tip style diameter (mm) | 0.5 |
| Barrel diameter (mm) | 0.75 |
| Collar diameter (mm) | 0.86 |
| Press ring diameter (mm) | 0.86 |
| Materials and surfaces | |
|---|---|
| Tip style | 09 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 10 |
| Spring force (cN) | 20 |
| Nominal travel (mm) | 0.5 |
| Maximum travel (mm) | 2.2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 2 |
| Typical contact resistance (mOhm) | 50 |
Graphics
Beschreibung des Produkts

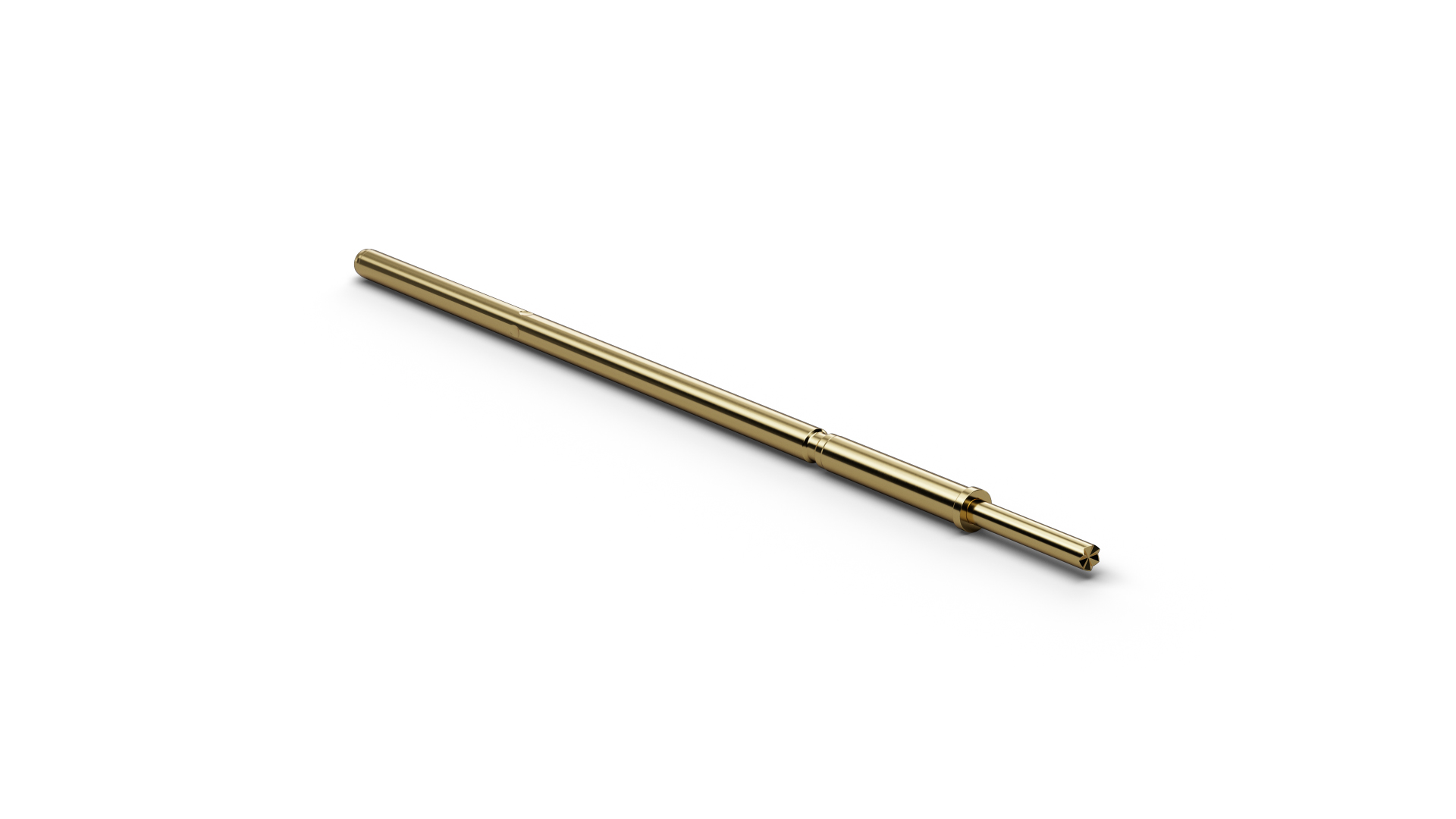

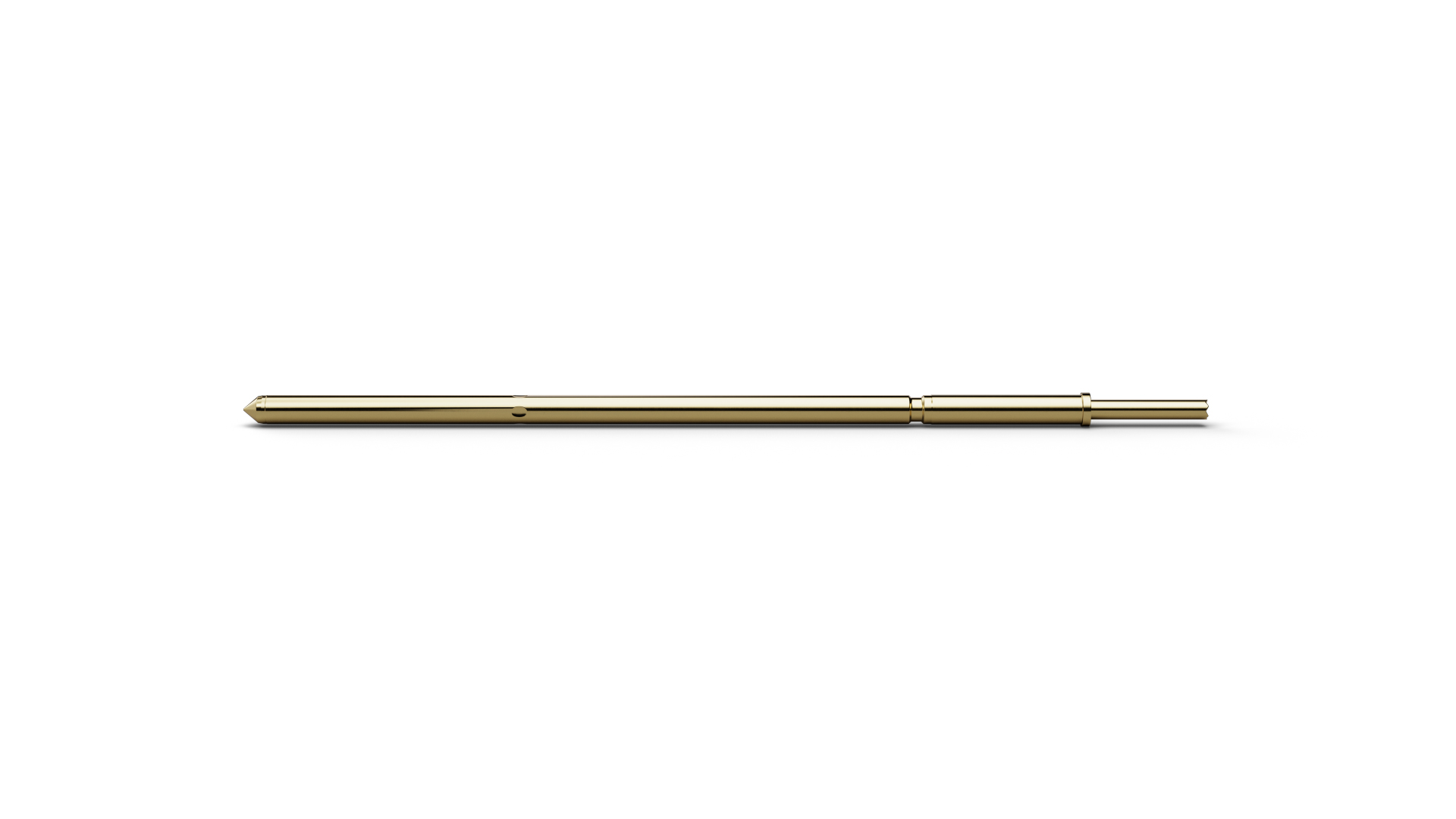

The Fine Pitch Probe FP750S09B050G020L245 (item number 1008296) is designed for precise contacting where installation space is limited. With its compact dimensions, FP750S09B050G020L245 is suited to densely arranged connections on microchips, sensors and printed circuit boards in sockets or test adapters. Key design data includes pitch 1 mm / 39 mil, spring force 20 cN, continuous current 2 A. This version belongs to the FP750 family.
