Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-M / P090M-L053 |
| Pitch (mm/mil) | 1,70 / 67 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 5.3 |
| Protrusion height (mm) | 2.8 |
| Tip style diameter (mm) | 0.6 |
| Barrel diameter (mm) | 0.9 |
| Collar diameter (mm) | 1.15 |
| Press ring diameter (mm) | 1.15 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 10 |
| Spring force (cN) | 20 |
| Nominal travel (mm) | 1 |
| Maximum travel (mm) | 1.2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 100 |

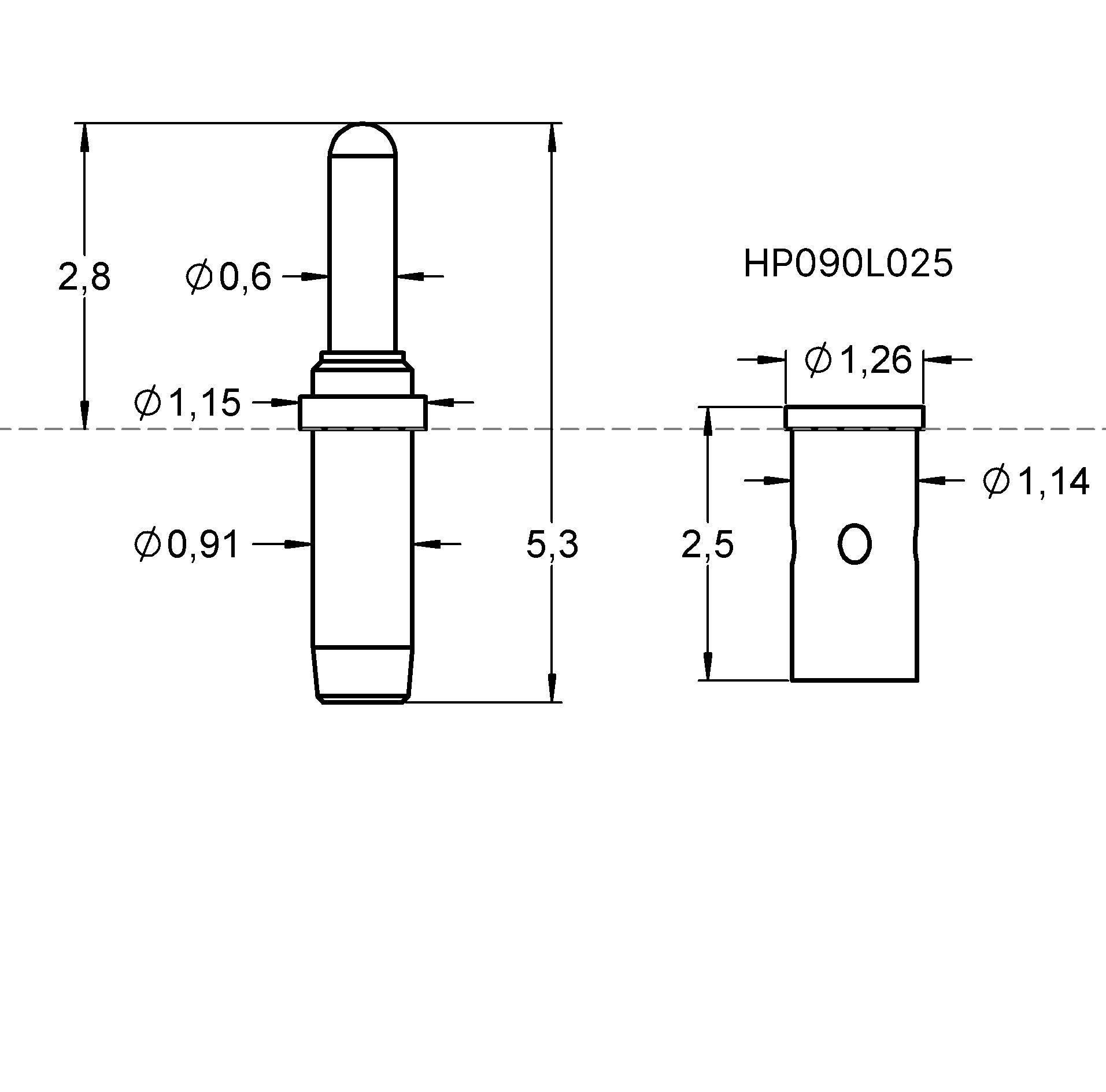

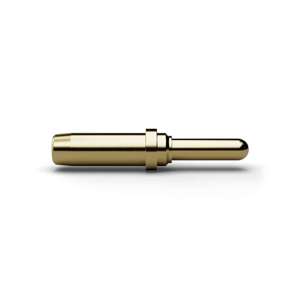

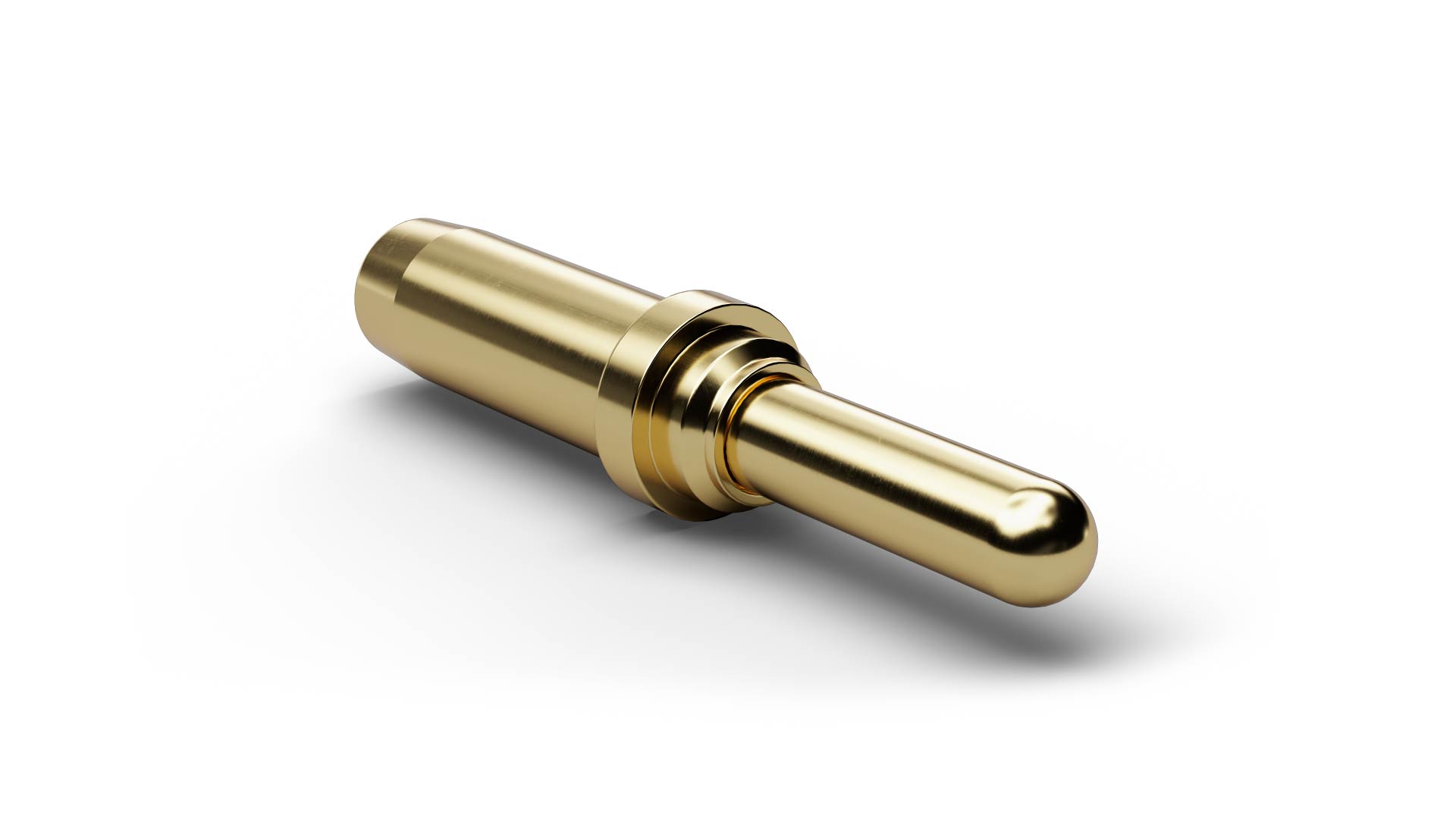

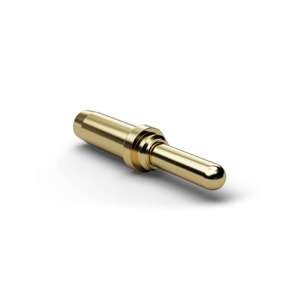

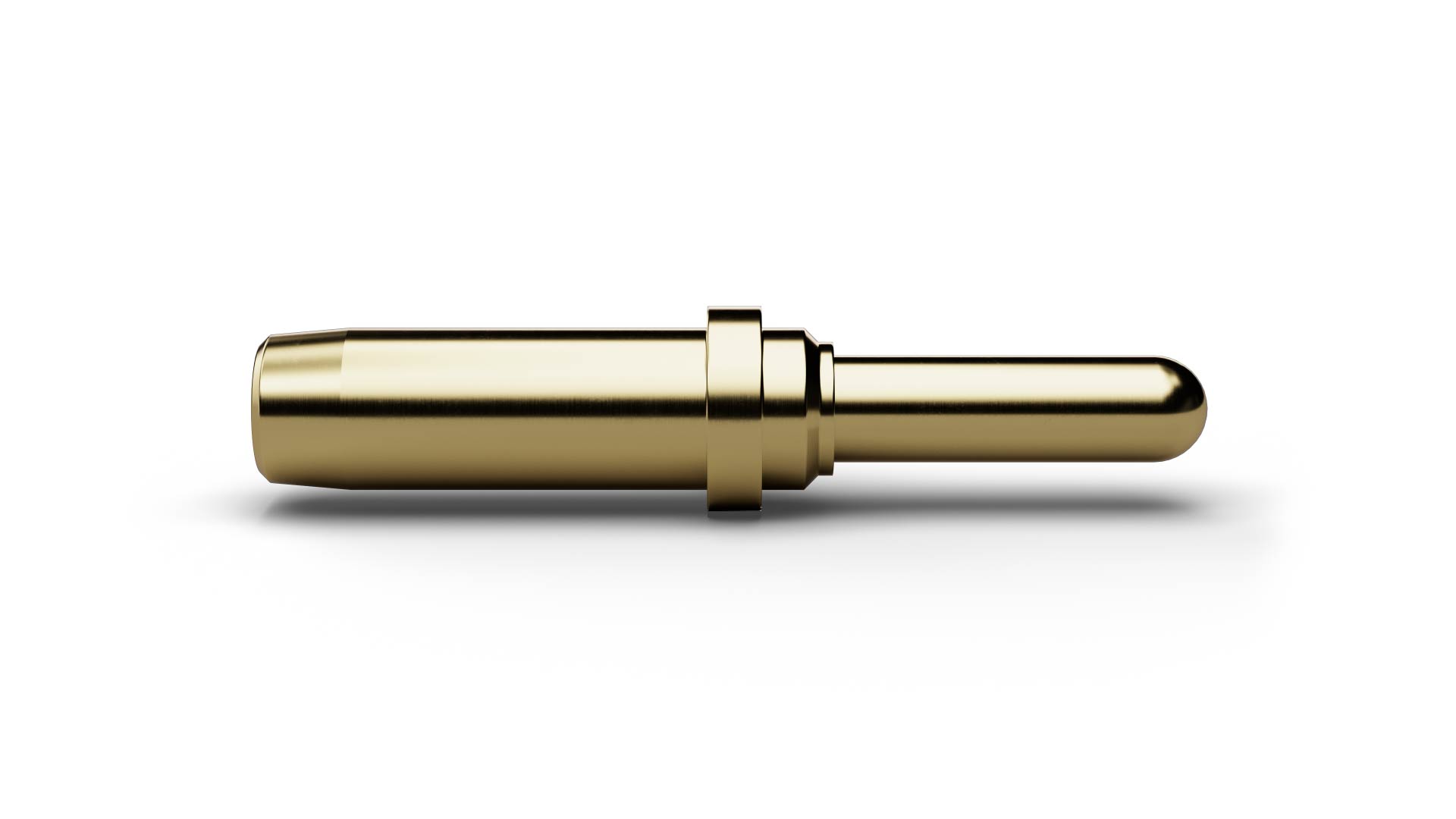

Graphics
Beschreibung des Produkts
The Pogo Connector P09011B060G020ML053ST (item number 1009512) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P09011B060G020ML053ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P09011B060G020ML053ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P09011B060G020ML053ST, a pitch of 1.7 mm / 67 mil is combined with 20 cN spring force and 1 mm nominal travel. P09011B060G020ML053ST is rated for 5 A continuous current with a typical contact resistance of 100 mΩ. On P09011B060G020ML053ST, tip style 11 (Spherical) has a diameter of 0.6 mm.
