Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | I- |
| Pitch (mm/mil) | 2,90 / 114 |
| Temperature | -45°C...+250°C |
| Dimensions | |
|---|---|
| Total length (mm) | 18.3 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Plunger material | Brass |
| Plunger plating | Gold |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 15 |

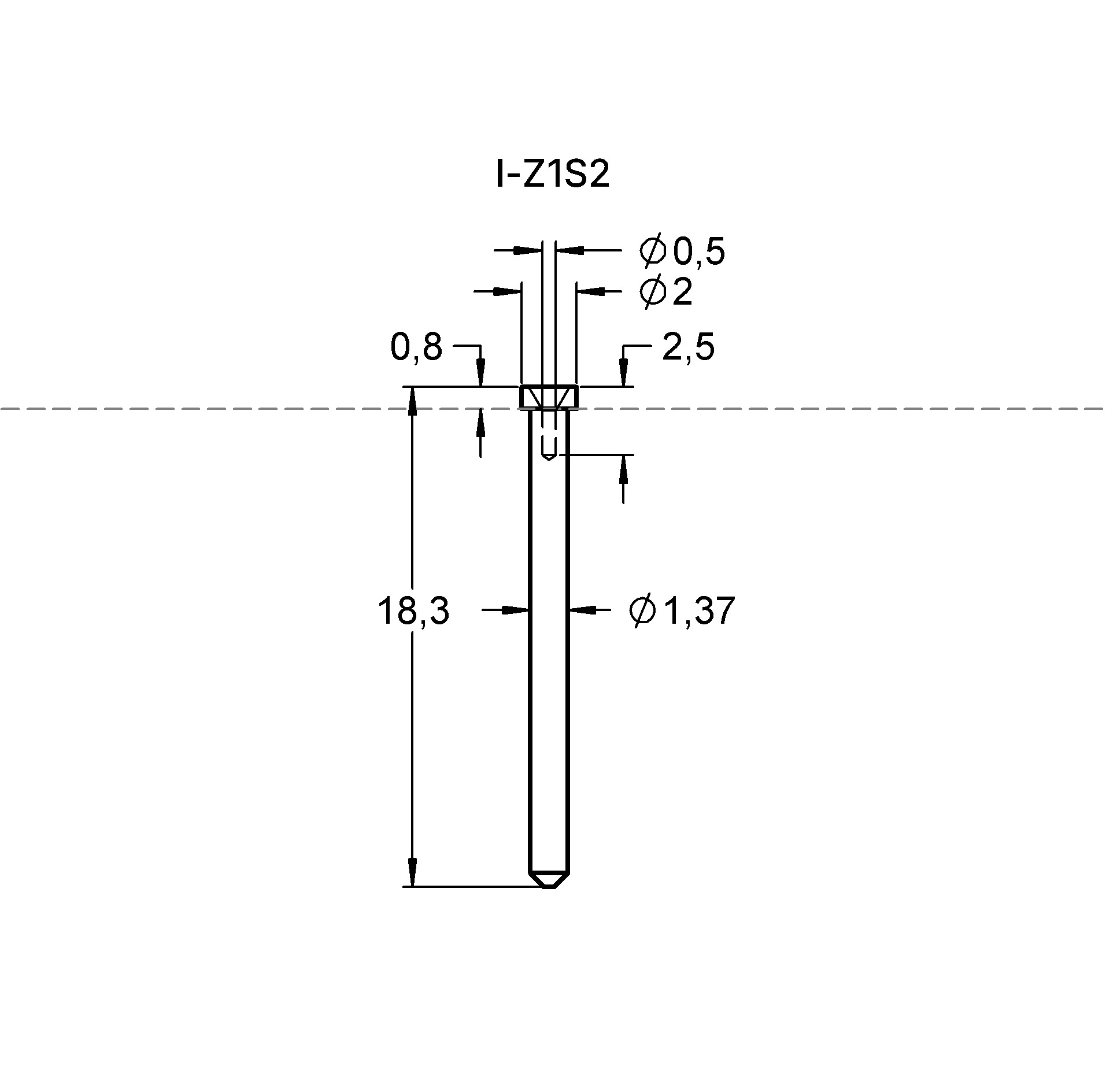

Graphics
Beschreibung des Produkts

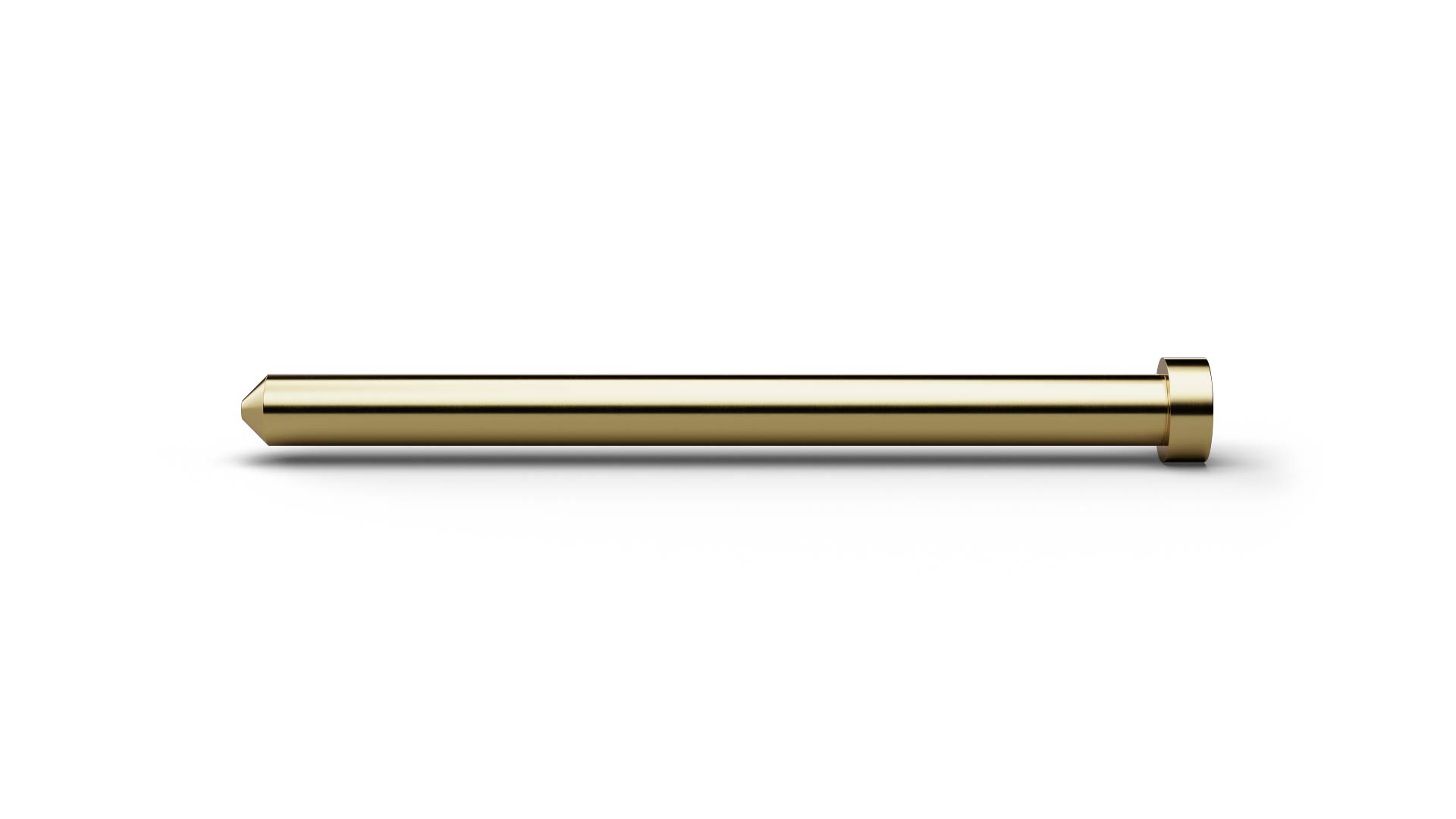

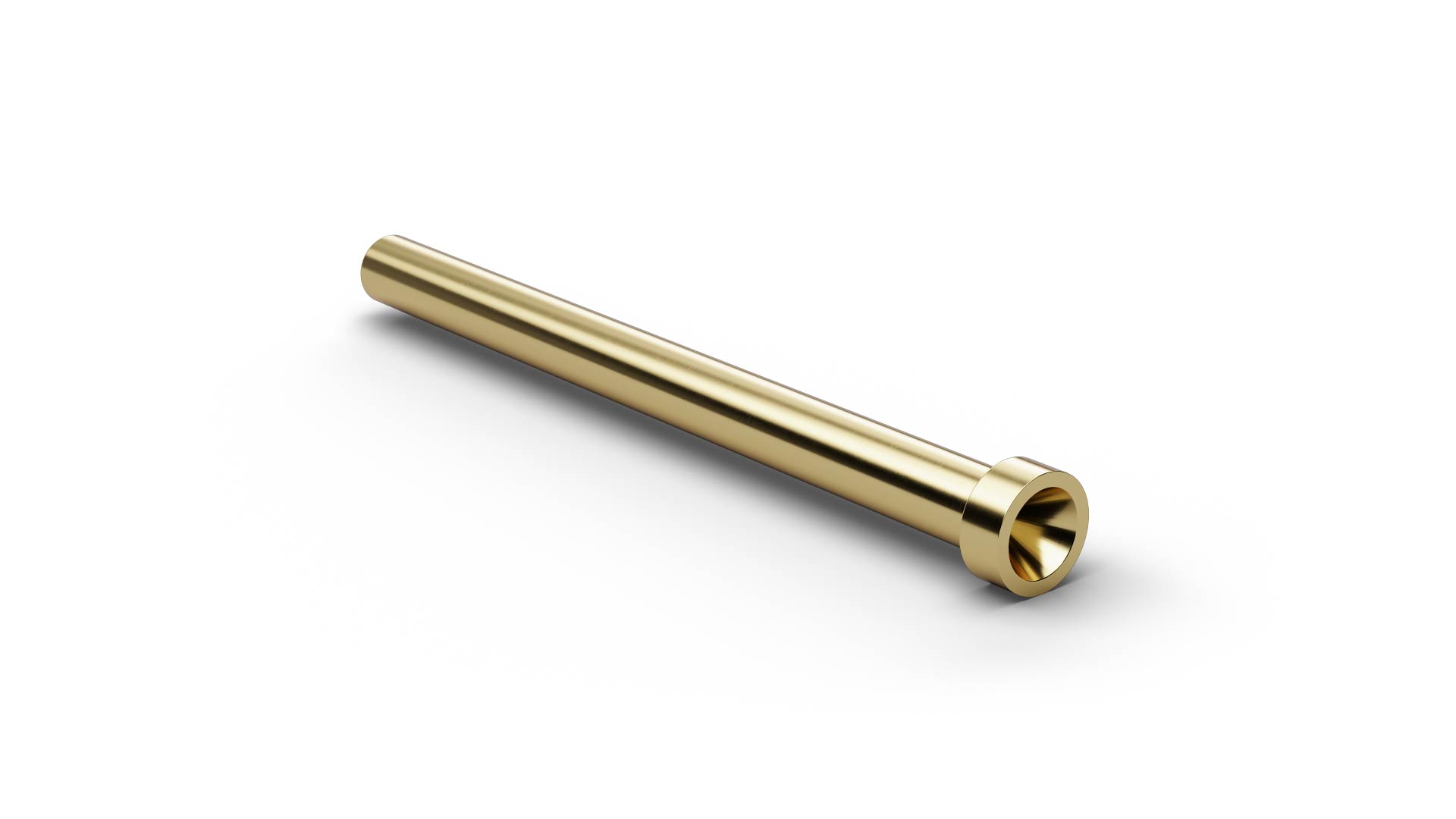

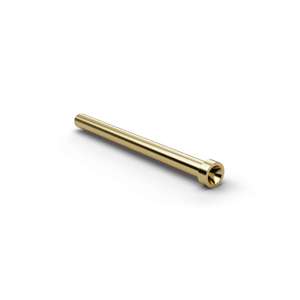

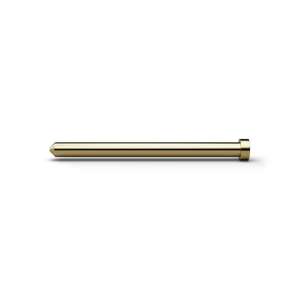

I-Z1S2 (item number 1009768) belongs to the Interface Solutions range for ICT and Functional Test setups. I-Z1S2 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. The design combines a pitch of 2.9 mm / 114 mil with tip style 05 (Concave stepped) and a tip diameter of 2 mm. The continuous-current rating of I-Z1S2 is 15 A. The plunger in I-Z1S2 is made of brass and is gold-plated.
