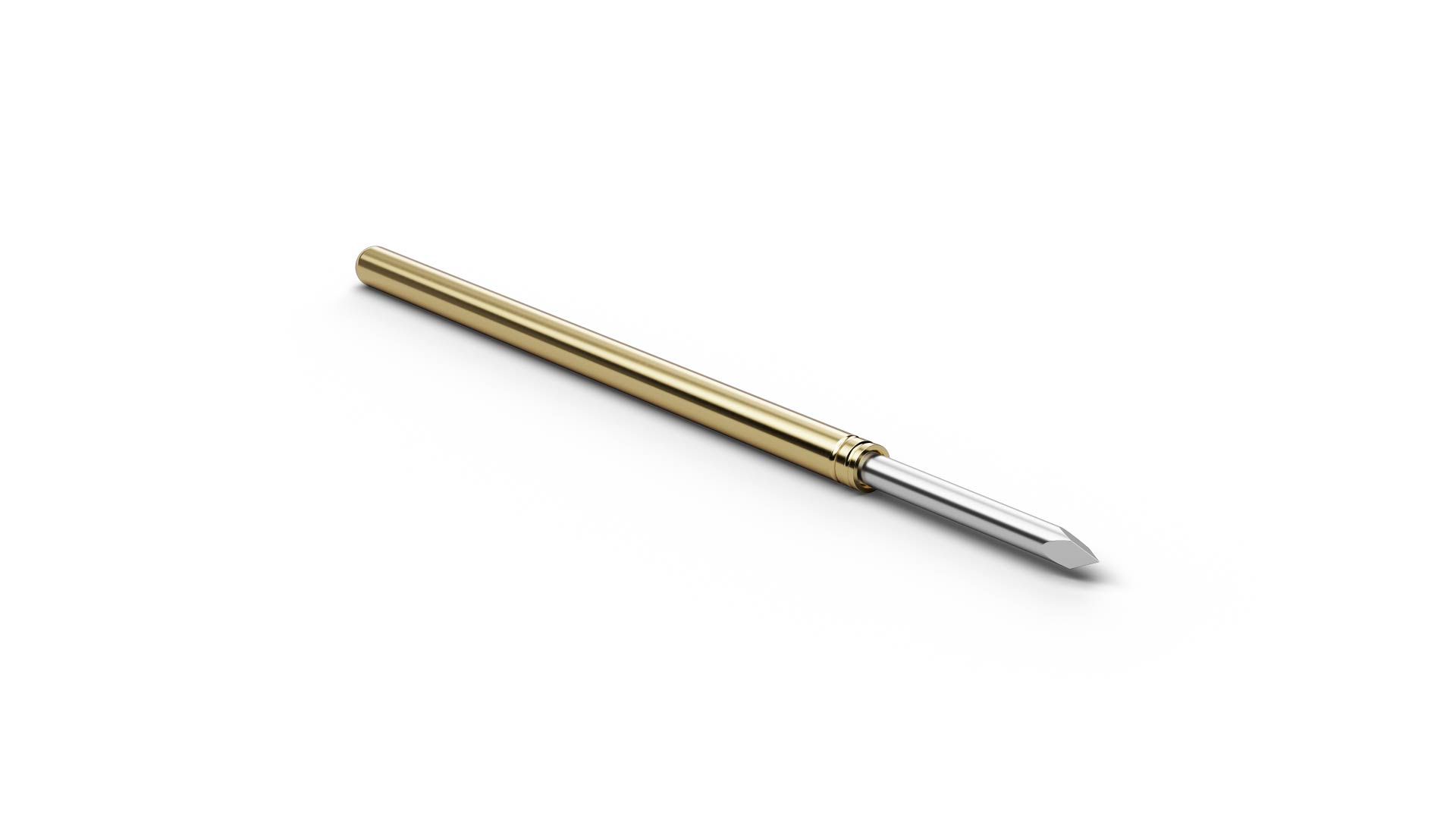

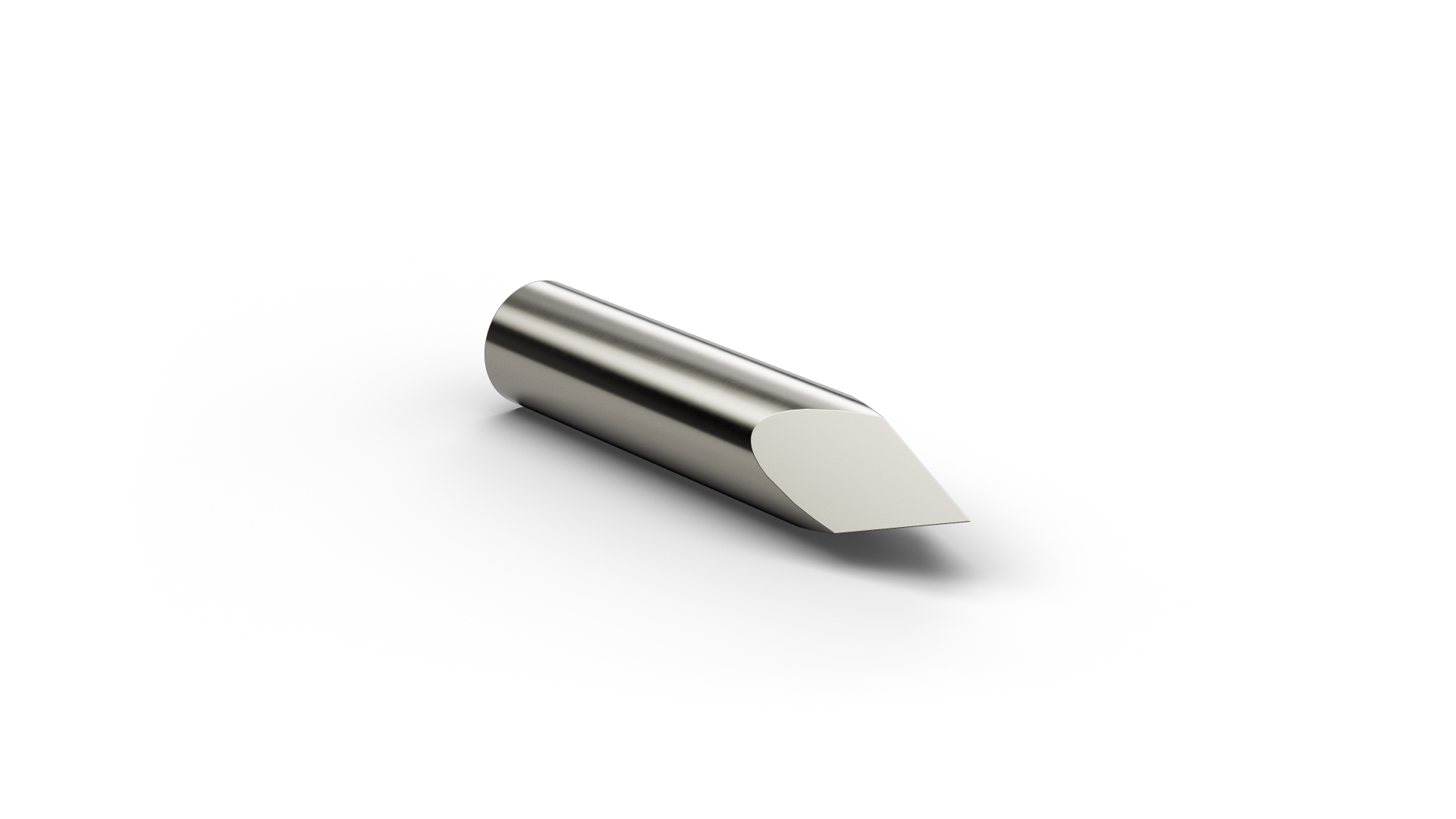

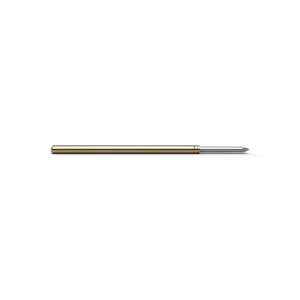

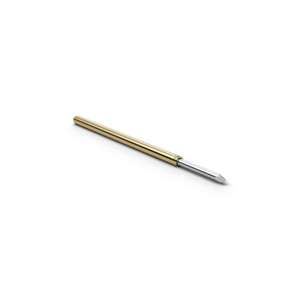

F10062S090P300HP (item number 1010167) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 62 (Triangular 30°), F10062S090P300HP combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10062S090P300HP combines a pitch of 2.54 mm / 100 mil with tip style 62 (Triangular 30°) and a tip diameter of 0.9 mm. For F10062S090P300HP, spring force is 300 cN at a nominal travel of 4.3 mm. F10062S090P300HP is rated for 5 A continuous current with a typical contact resistance of 40 mΩ. The combination of P-Coating and HP spring preload makes F10062S090P300HP a version for contact points where residues or hard surface layers can make electrical contacting more demanding.
